Product Details:
|
| Model: | HZ-2018 | Inside Size: | 500*500*600mm |
|---|---|---|---|
| Temprature Range: | RT+10~+70°C, 0-+70℃ | Meet Standards: | JIS K 6259 ASTM1149 ASTM1171 |
| Material: | Stainless Steel | Application: | Industry,Machinery Parts,Auto Part |
| Dimensions: | Customer Required,Customized Sizes | Service: | OEM\ODM |
| Standard: | GB ASTM AISI DIN BS,DIN,BS,ASTM,ISO | Size: | Customized Size |
| High Light: | ODM Temperature Test Chamber,Rustproof Temperature Test Chamber,Practical Ozone Aging Test Machine |
||

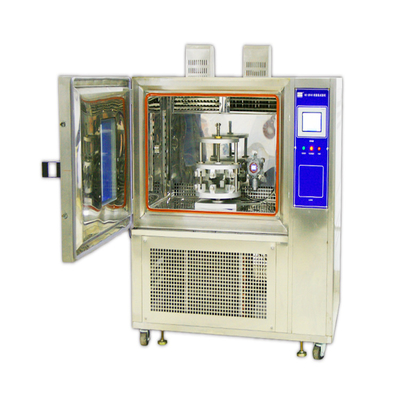

JIS K 6259 ASTM1149 ASTM1171 Digital Rubber Plastic Climatic Ozone Aging Test Chamber Machine for Lab
Ozone Aging Test Chamber is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.
Ozone Aging Test Chamber Main function:
Ozone Test Chamber is used to test the ozone environment, the characteristics of crack-resistant rubber, ozone resistance testing machine, can control and adjust the concentration of ozone environment, to determine the anti-ozone properties of the specimen.
Ozone Aging Test Chamber Main feature:
Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
Ozone Aging Test Chamber Corresponding standard:
JIS K 6259 ASTM1149 ASTM1171 ISO1431 DIN53509 GB7762 GB/T13642
Ozone Aging Test Chamber Technical parameter:
|
Model |
|
|
Ozone concentration |
5~1000pphm adjustable |
|
Relative humidity |
60%RH above |
|
Temperature |
RT+10～+100°C |
|
Ozone produced mode |
Ozone generator or UV absorption method |
|
Inside air velocity |
over 2 feet/sec |
|
Degree of ozone concentration fluctuation |
10% |
|
Inside size |
500×500×600mm |
|
Air flow |
A.0-6 cfm；B. 10-20 cfh |
|
Weight |
250kg |
|
Power |
1∮, AC220V, 15A |
|
Accessories |
tensile fixture 6 groups |
|
Dynamic Strain Test 9pcs. |
- Tension Frequency 1-30; |
|
- Stroke 0-80 mm; |
|
|
- Rotating speed 6 rpm. |
|
|
Static Strain Test 9pcs. |
- 9pcs of testing specimen |
