Product Details:
|
| Testing Speed: | 90 ± 5 Rpm | Testing Displacement Or Angle: | 1 ° Or 30 ± 1 ° |
|---|---|---|---|
| Specimen Number: | 4 Groups | Specimen Size: | 4 "x4" ± 0.125 "(101.6 × 101.6 ± 3.2mm) |
| Ball Total Weight (load): | 135 ± 5gs | Volume (W × D × H): | 60 × 40 × 45cm |
| Power Supply: | 1phase, 220V, 50/60Hz | Motor: | 200 W |
| Weight: | 80 Kg | ||
| High Light: | ASTM Leather Testing Equipment,200W Leather Testing Equipment,Waterproof Dynamic Leather Machinery |
||

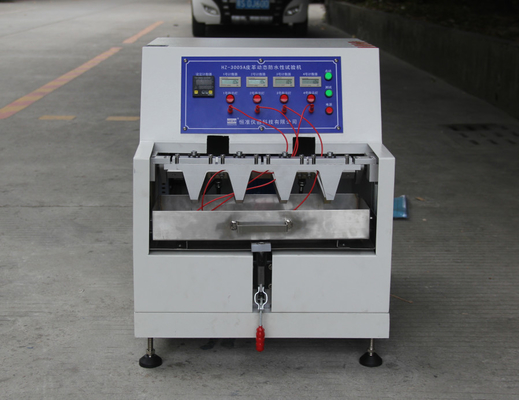

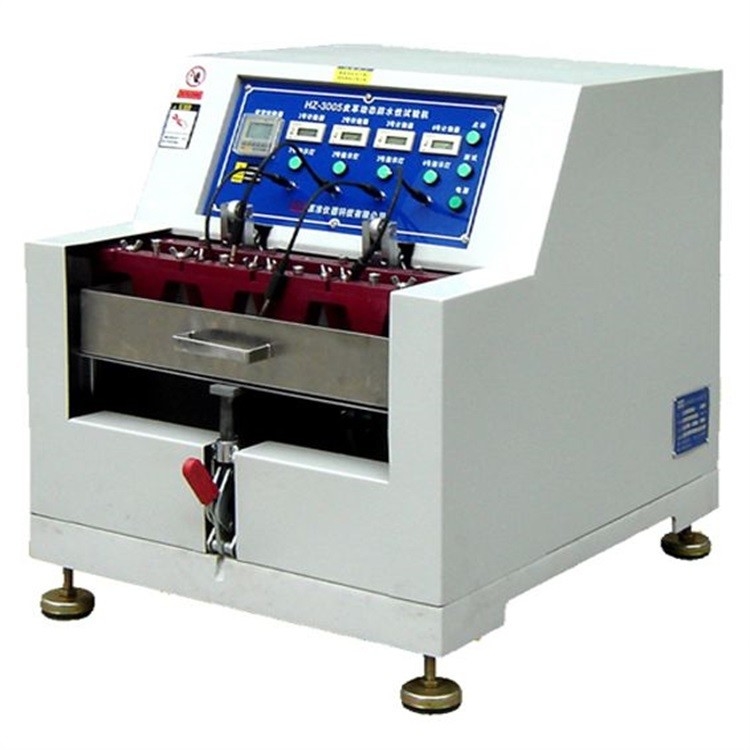

Leather Test Equipment Leather Dynamic Waterproof Testing Machine ASTM D-2099
Leather Test Equipment Overview

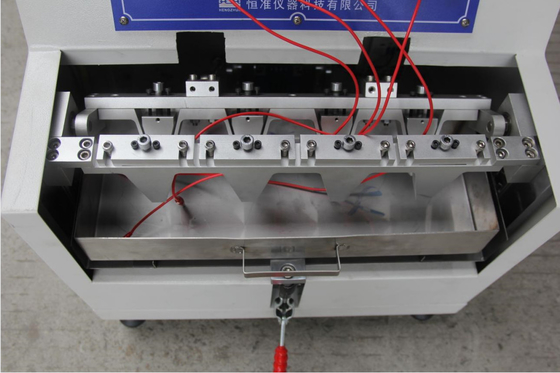

The machine used standard steel ball placed in the interior of leather, and in this way to do water-proof and twist testing. Testing before need to set the number of reverse and automatically shut down when the number arrive, the machine is equipped with a sensor, when the water infiltrate into the interior of leather, it will automatically stop counting time, and display the time of twist.
Leather Test Equipment Standard
ASTM D-2099SATRA PM-34, ALCA E56
Leather Test Equipment Applicable Industry
| Model: | HZ-3005A |
| Testing speed | 90 ± 5 rpm |
| Testing displacement or angle | 1 ° or 30 ± 1 ° |
| Specimen number | 4 groups |
| Specimen Size | 4 "x4" ± 0.125 "(101.6 × 101.6 ± 3.2mm) |
| Ball size (load) | (1 / 8 "× 3mm) |
| Ball total weight (load) | 135 ± 5gs |
| Counter | Six-digit LCD digital display |
| Volume (W × D × H) | 60 × 40 × 45cm |
| Power Supply | 1phase, 220V, 50/60Hz |
| Motor | 200 W |
| Weight | 80 Kg |
