Product Details:
|
| Model: | HZ-8111 | The First Mold Size: | Outer Line "GB/T2812-2006" |
|---|---|---|---|
| The Measuring Force Range: | 0 ~ 2000N | The Value Of Measuring Force Accuracy: | 1% |
| Warranty: | 1 Year | Region: | China |
| Displacement Display Accuracy: | 0.1mm | Power Supply: | AC220V, 50Hz |
| The Time Display Accuracy: | 1s | Standard:: | GB/T 2812－2006《Helmets Test Method》 GB/T 2811－2007《Helmet》 |
| High Light: | 220V Stiffness Testing Machine,Antiwear Stiffness Testing Machine,Multi Scene Bending Stiffness Tester |
||

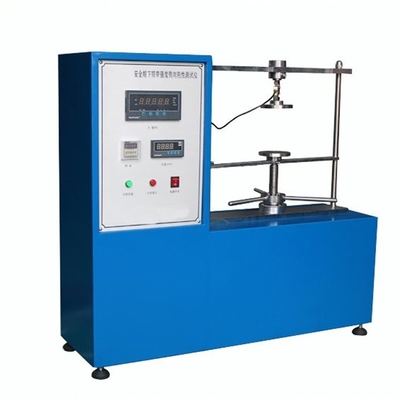

Helmet Test Equipment Helmet Under The Chin With Strength Lateral Stiffness Tester HZ-8111
Equipment Description:
Designed to detect a helmet under the chin with the strength, lateral rigidity of the test.
Main feature:
1, 1 # standard head model, with a stable support, combined with the use of simulated artificial chin.
2, the first dedicated high-precision pressure sensor module connection.
3, LED digital display various stages of power values.
Corresponding standard:
GB/T 2812－2006
Technical parameter:
The next moment with a strength:
| the first mold size | Outer line "GB/T2812-2006" |
| the measuring force range | 0 ~ 2000N |
| the value of measuring force accuracy | 1% |
| displacement display accuracy | 0.1mm |
| the time display accuracy | 1s |
| Power Supply | AC220V, 50Hz |
Lateral rigidity:
| the measuring range | 100mm |
| the measuring force range | 0-750N |
| the value of measuring force accuracy | 1% |
| displacement display accuracy | 0.1mm |
| the time display accuracy | 1s |
| Power Supply | AC220V, 50Hz |
