Product Details:
|
| Model: | HZ-7017 Carbon Black Dispersion Tester | Magnification: | 100 |
|---|---|---|---|
| Irradiation Angle: | 30° | Specimen Hole Size: | 4.0×3.5mm |
| Control Mode: | Dedicated Software System | Dispersion Rating: | 0.1~10 Grade |
| Light Source: | Halogen Cup | Volume ( W*D*H ): | 20×50×48 Cm |
| Weight: | 23 Kg | Power Supply: | 1∮, 220V,2A |
| Attachment: | Cutter | Guarantee: | 1 Year/12months |
| High Light: | 220V Carbon Black Dispersion Tester,2A Carbon Black Dispersion Tester,ISO Carbon Black Dispersion Test Apparatus |
||

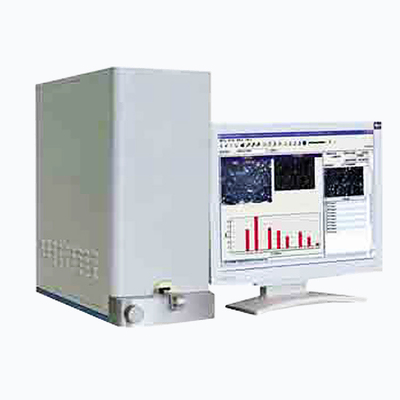

Product summary:
Specializes in providing the observed dispersion of carbon black in rubber (a shame that software mixing is compound) live.
High Speed ail carbon black Analyzer uses sophisticated optical zoom lens, high-quality CCD cameras, high-resolution
professional screen pick the card, with the Bian-yu j software programs, scattered photos of carbon black in rubber, can be
rapid and accurate determination of carbon black dispersion rating. Host characteristics: the host computer combined with
the CCD box.
Technical parameter:
|
Magnification |
100 |
|
Irradiation angle |
30° |
|
Specimen hole size |
4.0×3.5mm |
|
Control mode |
dedicated software system |
|
Dispersion rating |
0.1~10 grade |
|
Light source |
Halogen Cup |
|
Volume ( W*D*H ) |
20×50×48 cm |
|
Weight |
23 kg |
|
Power supply |
1∮, 220V,2A |
|
Attachment |
Cutter |
