Product Details:
|
| Fixture: | 4 Groups (Each Test Four Groups) | Deflection Radius: | 100mm |
|---|---|---|---|
| Sample Length: | 100~600mm (Adjustable) | Deflection Speed: | 800 Rpm |
| Hose Test Load: | 1620 KPa | Pressure Accuracy: | ±1% |
| Motor: | Three-phase AC Motor | Water Pressure: | 1620 KPa (16.5kg/cm2) |
| Maximum Pressure: | 3000 KPa | Timer: | 0~99,99h(Can Be Set) |
| Volume (W×D×H): | Host 163×120×110 Cm,Controller 45×60×150 Cm | Weight(Appro): | 600kg |
| Power Supply: | 3∮，AC380V，9A (Also According To Country Or Designated) | Guarantee: | 1 Year/12months |
| High Light: | 800RPM Rubber Testing Machine,Pneumatic Rubber Testing Machine,Multipurpose Brake Hose Flex Testing Machine |
||

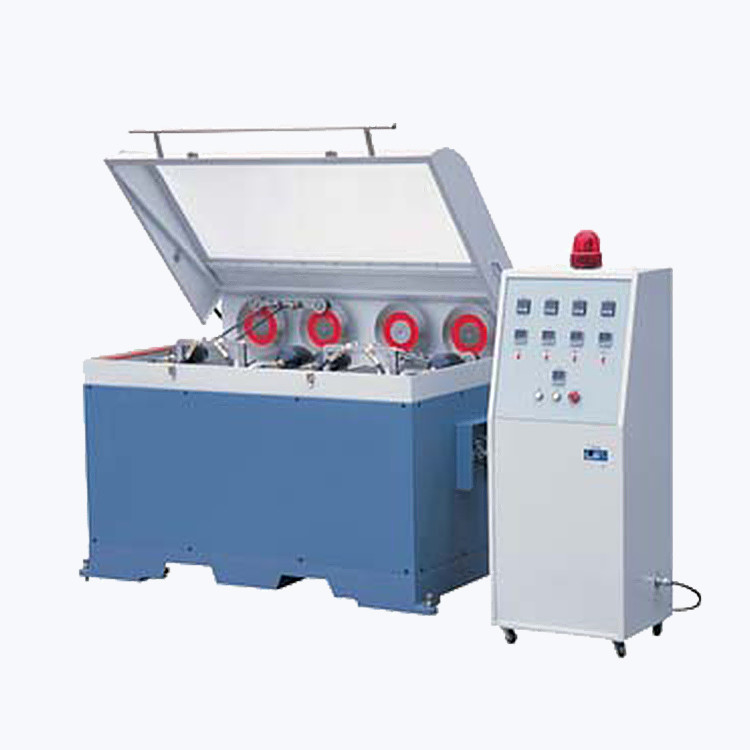

Rubber Testing Machine Brake Hose Flex Fatigue Testing Machine
Product Description:
Brake hose flex testing machine, a deflection action for analog brake hose under high pressure to a
certain frequency, the fatigue strength of the test. This test machine is suitable for motor vehicles
(including motorcycles) and trailers use hydraulic, pneumatic, vacuum brake hose, brake hose
fittings and brake hose assemblies.
Product specification:
GB/T 16897
Technical parameters:
|
Fixture |
4 groups (Each test four groups) |
|
Deflection radius |
100mm |
|
Sample length |
100~600mm (Adjustable) |
|
Deflection speed |
800 rpm |
|
Hose test load |
1620 KPa |
|
Pressure accuracy |
±1% |
|
Motor |
Three-phase AC motor |
|
Water pressure |
1620 kPa (16.5kg/cm2) |
|
Maximum pressure |
3000 kPa |
|
Timer |
0~99,99h(Can be set) |
|
Volume(W×D×H) |
Host 163×120×110 cm Controller 45×60×150 cm |
|
Weight(Appro) |
600kg |
|
Power supply |
3∮,AC380V,9A(Also according to country or designated) |
