Product Details:
|
| Model: | HZ-7019A | Standard: | ASTM-F414 ASTM-F870 GB/T 6327 GB/4503 GB/4504 |
|---|---|---|---|
| Test: | Tire Strength Test/Tread Ground Pressure/Lateral Stiffness Test/Bead Anti-off Test | Capacity: | 10 Ton |
| Unit Selection: | Kgf,lbf,N,kN,psi,MPa,N-m Etc | Load Resolution: | 1/200,000 |
| Load Accuracy: | Within±0.3% | Displacement Accuracy: | ±0.5% |
| Test Speed: | 0~299 Mm/min Adjustable | Control Software: | Dedicated Programming System, Traditional Chinese, Simplified Chinese, English |
| High Light: | Anticorrosive Compressive Strength Testing Machine,Multiscene Compressive Strength Testing Machine,Stable Compression Test Equipment |
||
Rubber Testing Machine Tires Comprehensive Strength Testing Machine ASTM-F414
Machine Summary:

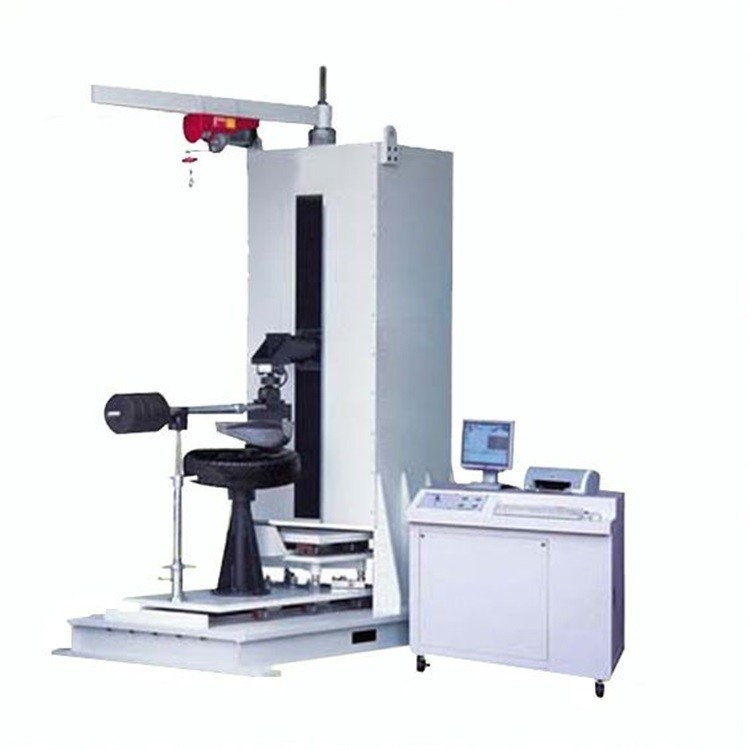

This tires comprehensive strength testing machine is used to test engineering tires, truck tires, light
truck tires, car tires and a variety of special physical characteristics, LT-5000 features include: tire strength
test, bead anti-off test, vertical rigid test, the lateral stiffness test,tread ground pressure distribution tests.
This machine adopts servo power systems, high-precision load sensors and displacement sensors,
high-speed data analysis system to connect a computer to carry out the set of test conditions, test data
analysis and storage.
Standards:
ASTM-F414 ASTM-F870 GB/T 6327 GB/4503 GB/4504
Technical parameters:
| Model | HZ-7019A |
| Standard | ASTM-F414 ASTM-F870 GB/T 6327 GB/4503 GB/4504 |
| Specifications / Test | Tire strength test |
Tread ground pressure / vertical rigid test |
Lateral stiffness test |
Bead anti-off test | ||
| Capacity | 10 ton | 2 ton/ 10 ton | 10 ton | |||
| Unit selection | kgf,lbf,N,kN,psi,MPa,N-m etc | |||||
| Load Resolution | 1/200,000 | |||||
| Load accuracy | within±0.3% | |||||
| Displacement accuracy | ±0.5% | |||||
| Test speed | 0~299 mm/min adjustable | |||||
| Testing tires |
Series of car tires, light truck tires series series of truck wheels, tire series |
Series of passenger car tires (tubeless) |
||||
|
Applicable to the tire diameter range |
max×1500mm |
Wheel nominal diameter 254~406 mm |
||||
| Puncture the plunger |
φ8×80 mm, φ19×200 mm, φ32×330 mm, φ38×330mm |
......... | ||||
| Creasing effective area | ........ | 420 × 297 mm | 500 × 500 mm | ........ | ||
| Off the lip | ........ |
comply with JIS-D4230 A,B |
||||
| Control software |
Dedicated programming system, Traditional Chinese, Simplified Chinese, English |
|||||
| Volume (W×D×H) | Host | 140 × 200 × 300 cm | ||||
|
Computer and desk |
110 × 60 × 118 cm | |||||
| Weight (about) | 3ton | |||||
| Power supply | AC220V, 20A | |||||
