AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose

AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose
AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose
AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose

Large Image :  AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-1005A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose

Description
Standard:: 《GB/T16491-1996 Electronic Universal Testing Machine》 MODE;: HZ-1005A
Capacity: 1KN, 2KN, 5KN Option Model: HZ-1005A
Resolution: 1 / 50000 Data Sampling Frequency: 200 Times/sec
High Light:

220V Footwear Testing Equipment

,

200times/S Footwear Testing Equipment

,

Multipurpose Shoe Testing Machine

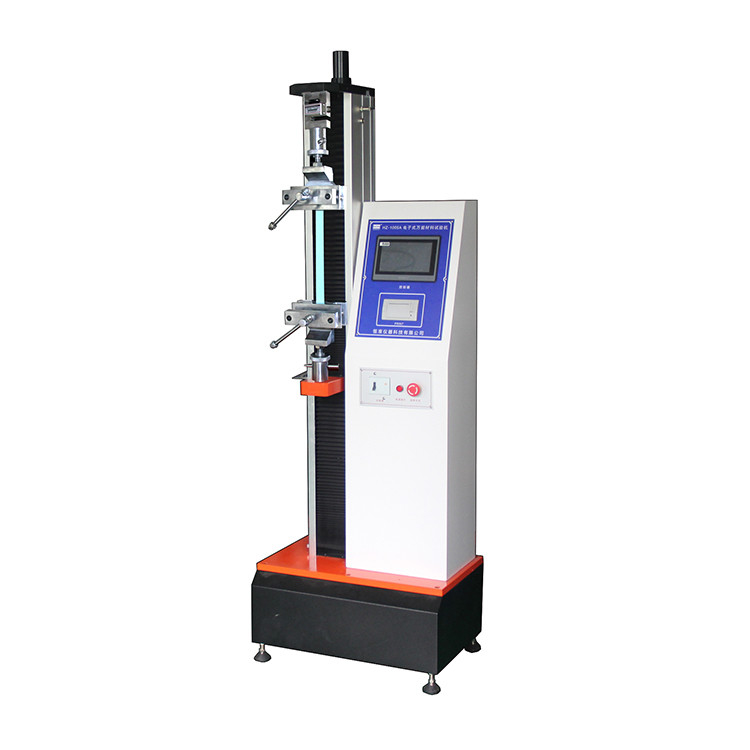

GB/T16491-1996 Footwear Test Equipment Universal Testing Machine Shoes Tensile Tester HZ-1005A

Shoes tensile tester for Shoes HZ-1005A is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control.



AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose 0AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose 1

Equipment summary:
Universal Tester for Shoes HZ-1005A is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 5KN.

Main functions:
shoes tensile tester for Shoes HZ-1005A can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.

Corresponding standard:



Technical parameters:
Model HZ-1005A
Capacity 1KN, 2KN, 5KN option
Accuracy of load measurement the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
Units Kg, Lb, N, Ton (can be exchanged)
Resolution 1 / 50000
Displacement resolution 0.001mm
Power system AC motor, deceleration device (Italy brand)
Control system testing speed 50~300 mm/min with step less speed and 5 fixed-speed
Data sampling frequency 200 times/sec
Effective testing width 120cm (can be customized)
Safety devices overload, emergency stop devices, limited devices of displacement, leak current protection
Power 400W (depending on different demand of force using different motor)
Machine size 45×55×140cm (length * width * height)
Weight About 150KG
Power supply AC 220V single-phase


AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose 2



AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose 3
Dongguan Lixian Instrument Scientific Co. is one of the leading manufacturers of advanced testing instruments, founded on 2000,located in Dongguan, Guangdong province in China. Lixian Instrument located in Dongguan city, covers an area of 6000 square meters, take the lead in introducing the CNC processing center and NC lathe and other advanced equipment in 2010. Carried on several listed company lab, quality institutions, Tsinghua University, Aeronautics University's project. We have 30000+ buyers in domestic market, succeed in establishing the branch companies and maintenance department in Dongguan, Shanghai, Beijing, Jinjiang,Wuhan, Chongqing, Shenyang, Changsha. Our products owned CE/ISO/ASTM/ ROSH/UL certification, and have exported to more than 70countries like the USA, Germany, South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on.
AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose 4
Lixian Instrument owned CE/ISO/ASTM/ROSH/UL certification, and have exported to more than 70 countries like the USA, Germany,South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on. Lixian Instrument have a professional R & D team and a reliable quality management system, which introduced the CNC processing center and CNC lathe and other advanced equipment in 2010, successfully obtained the CMC measurement certificate and passed ISO 9001 system authentication.
AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose 5
AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose 6
AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose 7
AC 220V Shoe Footwear Testing Equipment 200Times/S Multipurpose 8
FAQ
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be provided if any performance failure occurs within 12 months, caused by non-human damage.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).15 years focusing on test instruments field. Six years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 15 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely.Each of the instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. Engineers would be to go abroad for training and repairing.

Q6: What about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
