200N Universal Tensile Testing Machine , Lixian Tensile Strength Measuring Instrument

Description
Model: HZ-1007A Certification: CE/ISO/ASTM/ROSH
Accuracy: 0.5grade Maximum Load: 1KN High-precision Sensors From U.S.A.
Volume: 450 *550 *1400mm Test Speed: 50-300mm / Min
Power: Electronic Usage: Universal Testing Machine,Tensile Testing Machine
Application: Steel,fiber,fabric,universal Tester Standard: BS.EN.ASTM,DIN,ASTM,ASTM E8/A370/ISO 75001,ISO
Motor: Panasonic Servo Motor Warranty: 1 Year
High Light:

200N Universal Tensile Testing Machine

,

500N Universal Tensile Testing Machine

,

Lixian Tensile Strength Measuring Instrument

High Accuracy Zipper Universal Tensile Strength Elongation Test Machine Price HZ-1007A

Tensile Strength Tester Machine is a simple type machine, simple structure, convenient operation, Tensile Test Machine can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws.





Tensile Test Machine Equipment summary:

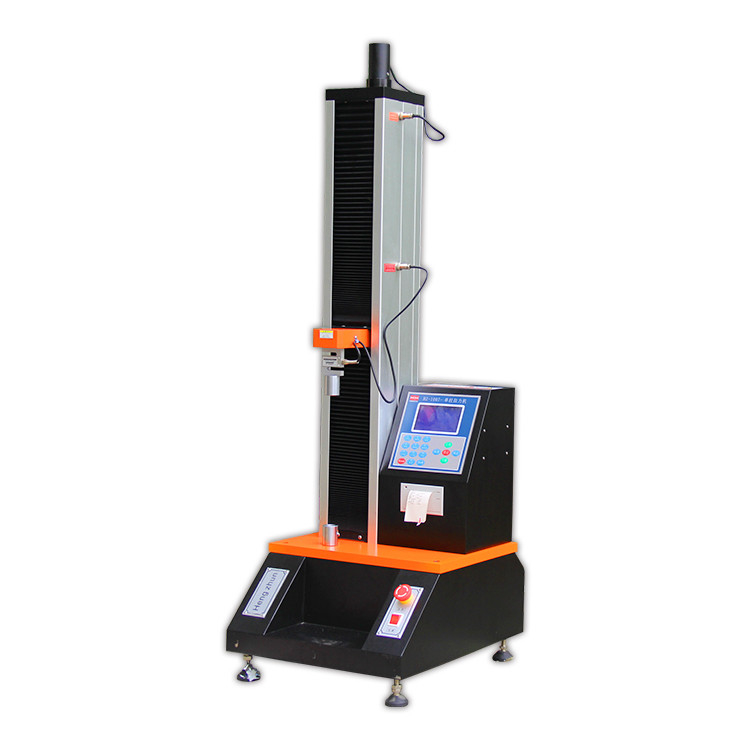

Tensile Strength Tester Machine HZ-1007A is a simple type machine, simple structure, convenient operation, It can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 1KN.



Tensile Test Machine Main feature:
1. Excellent design. my company has focused on product appearance over the years, company has developed many products that is similar with the foreign products, the surface of product is made of aluminum and process by electrostatic spray.
2. Digital force displayed by LCD, discernible tension or pressure, LCD display clearly.
3. Three kinds of units: N, Kg, Lb, Ton option or automatically exchange;
4. LCD with backlight can be used in low-light environments.
5. Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.
6. The system would shut down if overload or over-trip.
7. Structure of single-column is beautiful and sophisticated, seating operation, relaxation and nature.


Tensile Test Machine Corresponding standard:
GB/T 16491, GB/T 1040, GB/T 8808, ASTM D3759, ASTM D3330, ASTM D882, JIS K 6854, ASTM E4, ASTM D828, ASTM D1938, ASTM F88, ASTM F904, ISO 37, JIS P8113.


Tensile Test Machine Technical parameters:

Model HZ-1007A Tensile Strength Tester Machine
Maximum load 100kg
Capacity choice 20kg, 50kg, 100kg or less than can be self-selected
Unit KG,N,LB, TON can be exchanged.
Measurement system Load cell + HZ-2000
Accuracy load of measurement the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
Resolution 1 / 50000
Maximum test stoke About 500mm (excluding gripper, can be customized)
Test speed 50-300mm/min with stepless speed and 5 fixed-speed (can be customized)
Data sampling frequency 200times/sec
Display HZ-2000 dark blue LCD display, membrane touch keys, with the following functions.
Machine size 45x55x140cm (length*width*height)
Weight 75KG
Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine,
realizing stop machine at any position.
Safety The system would shut down if overload or over-trip.
Shape column shell is made of aluminum material.
Power system AC Motor
Power 120W (depending on different motors)
Power supply 1Φ, 220V, 15A



①. Single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kgf, Lbf, N, ton
③. Function of free to take point;
④. With multi-calibration function;
⑤. Auto printing function;
⑥. Using 24-bit AD acquisition, resolution 1 / 200000;
⑦. Decimal digits 0 to 4 arbitrary choice;
⑧. Starting up using password protection feature, which can effectively prevent the non-operators to use.
⑨. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine.
⑩. Overload protection function can be set, effectively preventing machine from overload;
