250W Thermal Shock Environmental Testing Machine Multiscene Rustproof

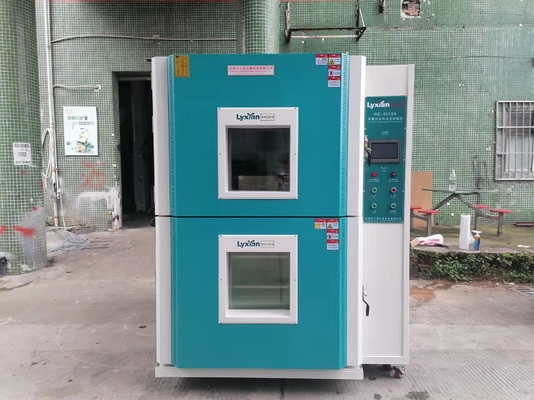

Large Image : 250W Thermal Shock Environmental Testing Machine Multiscene Rustproof

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-2012A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

250W Thermal Shock Environmental Testing Machine Multiscene Rustproof

Description

Model:	HZ-2012A	Temprature Range:	-77 Degree ~+205 Degree
System:	2-zone Transition By Vertical Transfer Of Specimens	Resolution:	0.01℃
Corresponding Standard ：:	SJ/T10187-91Y73, SJ/T10186-91Y73, IEC68-2-14	Device Noise:	Below 75dB.
Testing Region(hot And Cold):	40cm（W）50cm（H）40cm（D）；can Be Customized	Control Temperature:	±2℃；
Highlight:	250W Environmental Testing Machine , Multiscene Environmental Testing Machine , Rustproof Thermal Shock Test Chamber

2-Zone Water-Cooled Thermal Shock Chamber IEC68-2-14

Chamber summary:

The thermal shock test chamber, also known as the high and low temperature impact test chamber, is known as the cold and thermal impact machine in Taiwan. It is used to test the degree of material structure or composite material that can be tolerated in a continuous environment of extremely high temperature and extremely low temperature.

Specification:

Model			HZ-2012 Water-cooled
System			2-zone transition by vertical transfer of specimens
Performance *1	Test area	Hot exposure range	＋ 60℃ to ＋ 205℃
		Cold exposure range	−77℃ to 0℃
		Temp. fluctuation *2	± 1.0℃
	Hot chamber	Pre-heat upper limit	＋ 205℃
		Heat-up time *3	Within 90 min from ambient temp. to ＋ 200℃ (Setting: ＋ 205℃)
	Cold chamber	Pre-cool lower limit	−77℃
		Pull-down time *3	Within 90 min from ambient temp. to −77℃ (Setting: −77℃)
	Temp. recovery performance (2-zone)	Recovery conditions	・Hot exposure: ＋150°C (setting: ＋155°C 30 min) ・Cold exposure: − 65°C (setting: − 68°C 30 min) ・Sensor position: downstream ・Specimen: Plastic molded ICs, 10kg
		Temp. recovery time	Specimen temp. within 15 min
	Ambient recovery	Recovery conditions	・Hot exposure: ＋150℃ to max. ＋ 55℃ ・Ambient temp.: ＋ 23℃ ・Specimen: Plastic molded ICs, 10 kg
		Ambient temp. recovery time	Within 90 min
Test area			Shelf brackets on 2 levels (up to 4 baskets can be installed)
Elevating unit			Power slider (250W)
Fittings			USB memory port, Ethernet port (LAN port), specimen power supply control terminal, time signal output terminal (× 2), specimen temperature input terminal (× 2), cable port ID φ 100mm on right side (left side available as option), *Power cables not included.
Inside dimensions			W710×H345×D410 mm
Test area capacity			100 L
Load capacity of test area *4			30 kg
Outside dimensions *5			W1100×H1885×D1965 mm
Weight			Approx. 1100 kg
Utility requirements	Ambient temp. range		＋ 5℃ to ＋ 40℃
	Power supply (Voltage fluctuation: rating ± 10%)		200V AC 3φ 3W 50/60Hz	208V AC 3φ 3W 60Hz *6	220V AC 3φ 3W 60Hz	380V AC 3φ 4W 50Hz	400/415V AC 3φ 4W 50Hz *7
	Piping connection size		Carbon steel pipe, ID 32 mm
	Cooling water temp. range		＋ 5℃ to ＋ 38℃
Noise level *10			Max. 65 dB
Exhaust heat rate			12600 kJ/h (3000 kcal/h)
Exhaust air volume			250 m3/h

Main function:Used in electrical and electronic components, automation components, communication components, auto parts, metals, chemical materials, plastics, etc., defense industry, aerospace, military industry, BGA, PCB base board, electronic chip IC, semiconductor ceramics and polymer materials The physical change, testing the material's repeated tensile force against high and low temperature and chemical changes or physical damage of the product in thermal expansion and contraction, can confirm the quality of the product, from precision IC to heavy mechanical components, no one Ideal test tool without it.

The difference between two boxes and three boxes:
The two slots are composed of a cold box and a hot box, the box does not move, and the sample is tested in the manner that the hanging bar is switched between the cold box and the hot box.

Corresponding standard :
1,GB/T2423.1-1989
2,GB/T2423.2-1989
3,GB/T2423.22-1989
4,GJB150.5-86
5,GJB360.7-87

Application industry:
Applicable to aviation, military, ship, electrician, electronics, instrumentation; medical equipment; civil nuclear energy; colleges and universities; research institutes; commodity inspection and arbitration, technical supervision departments; building materials ceramics; petrochemical products, complete machines and parts High and low temperature impact test.
