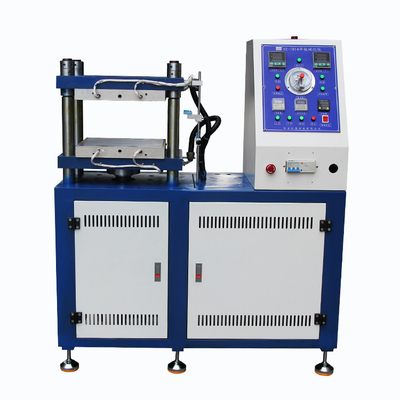

Electric Flat Vulcanizing Machine

Electric Flat Vulcanizing Machine
Electric Flat Vulcanizing Machine Electric Flat Vulcanizing Machine

Large Image :  Electric Flat Vulcanizing Machine

Product Details:
Place of Origin: China
Brand Name: Lixian
Certification: CE/ISO
Model Number: HZ-7014
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~5000/ per set
Packaging Details: Standard export wooden case
Delivery Time: 5~8 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets/per month

Electric Flat Vulcanizing Machine

Description
Capacity: 10T, 20T, 30T, 50T, 80T,100T Temperature Range: Normal Temperature~300℃
Temperature Precision: ±2℃ Temperature Controller: LED Button Type Control Mode And PLC Touch-screen Programmed Control Mode
The Method Of Temperature Control: LED Button Type Control Temperature Or PLC Touch-screen Programmed Control Temperature The Way Of Heating: Electric Heating
Heating Up Time: Normal Temperature~160℃ About 20min Timer: LED Display Or PLC Touch-screen Displayer
Heating Plate Size: 350x350mm,500x500mm,1m*1m The Number Of Heating Plate Layers: Single-layer
The Max.distance Between Up And Lower Heating Plate: 300,500mm,800mm The Min.distance Between Up And Lower Heating Plate: 50mm
Cylinder Stroke: Max 250mm Cylinder Speed: 11mm/s
Pressure Gauge: 0~200kg/sq.cm Dimension: 2*1.5*2.5(m)
Weight: 2.5T Motor Power: 4KW
High Light:

Electric Flat Vulcanizing Machine

,

11mm/s Flat Vulcanizing Machine

,

Heatproof Rubber Testing Equipment



HZ-7014 Flat Vulcanizing Machine

Electric Flat Vulcanizing Machine 0

Equipment Description

This series of flat vulcanizing machine is the main equipment that can be used in pressing all kinds of rubber model product and non-model product. In addition, it also can be used in pressing all kinds of thermosetting plastic and foaming rubber and plastic product. With independent actuating unit and electric system, apply button centralized control. Within certain limits, working pressure and heating temperature can be adjusted. This kind of model, can be classified manual operate and semi-automatic operate. The flat vulcanizing machine with the function of a high degree of automation, easy operation,energy conservation and environment protection, and also superior performance.

Electric Flat Vulcanizing Machine 1

Main Features

  • Controlled by PC or manual, performance reliable, high degree of automation. Can automatically identify the wrong command,so avoid the accidence which caused by wrong operation.
  • The preprogrammed process can be locked, the operator can not change without authorization, so that guarantee the quality of pressed product.
  • With the function of timing open mold, automatically exhaust and reinforcing pressure,etc.
  • Optional: Manual operating or Automatic operating mode
  • Electrical heating pressing machine apply digital display(or pointed type) to control temperature, and control and display the heating plate temperature.

  Technical Parameter

                      Capacity

10T, 20T, 30T, 50T, 80T,100T
Temperature range Normal temperature~300℃
Temperature precision ±2℃
Temperature controller LED button type control mode and PLC touch-screen programmed control mode
The method of temperature control LED button type control temperature or PLC touch-screen programmed control temperature
The way of heating Electric heating
Heating up time Normal temperature~160℃ about 20min
Timer LED display or PLC touch-screen displayer
Heating plate size 350x350mm,500x500mm,1m*1m
The number of heating plate layers Single-layer
The max.distance between up and lower heating plate 300,500mm,800mm
The min.distance between up and lower heating plate 50mm
Exhaust function Low pressure automatically exhaust 3~10 times per minute (Adjustable)
Cylinder stroke Max 250mm
Cylinder speed 11mm/s
Pressure gauge 0~200kg/sq.cm
Dimension 2*1.5*2.5(m)
Weight 2.5T
Motor power 4KW
Pressure 380V/60HZ(or 50HZ)
