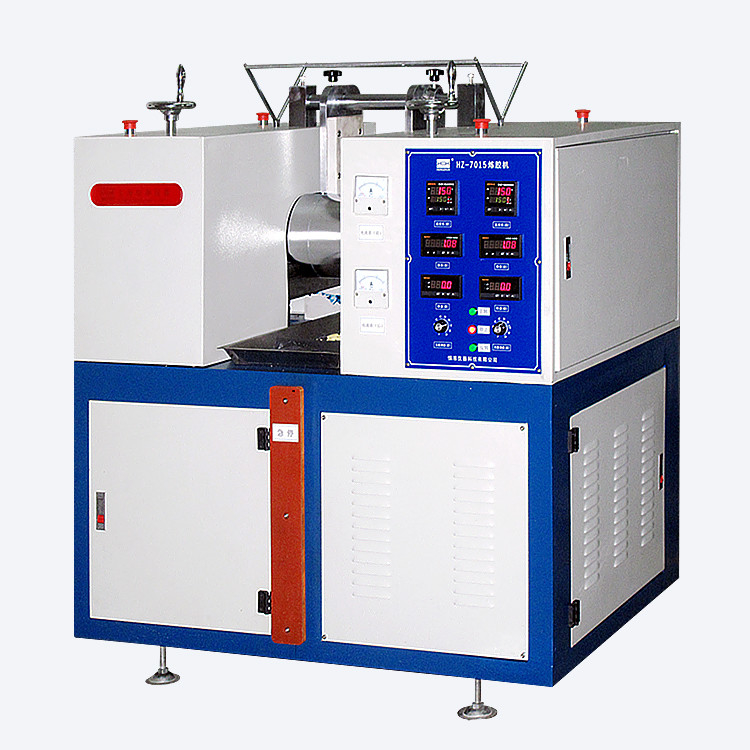

Multifunctional Open Rubber Mixing Mill

Multifunctional Open Rubber Mixing Mill
Multifunctional Open Rubber Mixing Mill
Multifunctional Open Rubber Mixing Mill Multifunctional Open Rubber Mixing Mill Multifunctional Open Rubber Mixing Mill

Large Image :  Multifunctional Open Rubber Mixing Mill

Product Details:
Place of Origin: China
Brand Name: Lixian
Certification: CE/ISO
Model Number: HZ-7015
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~5000/ per set
Packaging Details: Standard export wooden case
Delivery Time: 5~8 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets/per month

Multifunctional Open Rubber Mixing Mill

Description
Model: HZ-7015 Working Type: HZ-7015A Electric Heating Type /HZ-7015B Water Cooling Type Optional
Roller Diameter: 4/6/8/10inch Roller Face Width: 320mm
Mixing Capacity: 2/3/10/15kg Picking Device: SUS304 Stainless Steel Hopper
Roller Temperature: RT~water Temperature Heating Method: Water-cooled Cooling
Temperature Controller: PID Control Roller Hardness: 50~60HRC
Roller Spacing: 0.1~10mm Adjustable Motor Power: 4.5/5.5/7.5/15KW
High Light:

Multifunctional Open Rubber Mixing Mill

,

Anticorrosive Open Rubber Mixing Mill

,

Rustproof Open Mill Rubber Mixing

HG/T 3108-199 Rubber testing machine Open Rubber Mixing Mill



Equipment Summary



This machine suitable for plastic industry polymer material mixing and processing such as, PVC, color master batch. Making the raw material and compound mixing, and achieve the required color and quality. The machine adopts special heated mold, roll surface temperature uniformity, never take off a layer, sample thickness can be mixed, the machine safety protection device, convenience to use.

Technique Feature:



  • The core technology from Taiwan, The main parts adopt the French schneider.
  • Water-cooled, surface temperature by water cycle at room temperature - water temperature, at the same time temperature uniformity
  • Roll adopts the vanadium titanium alloy chilled cast iron,roll hardness(HRC)50-60,surface is hard wear-resisting, durable. Roller lumen finish machining to ensure that the roller body cooling quickly and evenly.
  • The machine adopts manual adjustment mode, Thickness control precision,easy operation,High safety factor .
  • The machine is equipped with an emergency brake, When emergency accidents,four corners have emergency switch, a number of brake system, convenient quick stop machine.

Reference Standard



GB 6038-2006 Rubber ingredients of rubber testing, mixing and Vulcanization equipment and operating procedures.

GBT 13577-1992 Mill for rubber and plastics

HG/T 3108-199



Technical Parameters



Model

Project

HZ-7015-4 HZ-7015-6 HZ-7015-8 HZ-7015-10
Working type HZ-7015A Electric heating type / HZ-7015B Water cooling type optional
Roller Diameter 120mm/4inch 160mm/6inch 200mm/8inch 250mm/10inch
Roller face width 320mm 320mm 320mm 320mm
Mixing capacity 0.3~2kg 0.5~3kg 1~10kg 2~15kg
Picking device

SUS304 Stainless

steel hopper

SUS304 Stainless steel hopper SUS304 Stainless steel hopper SUS304 Stainless steel hopper
Roller temperature RT~water temperature RT~water temperature RT~water temperature RT~water temperature
Heating method Water-cooled cooling Water-cooled cooling Water-cooled cooling Water-cooled cooling
temperature controller PID control PID control PID control PID control
Roller Rev frequency control frequency control frequency control frequency control

Roller ratio

adjusted

1:1.22/1:1.35

1:1.4

1:1.22/1:1.35

1:1.4

1:1.1/1:1.22

1:1.4/1:1.7

1:1.1/1:1.22

1:1.4/1:1.7

Roller hardness 50~60HRC 50~60HRC 50~60HRC 50~60HRC
Roller processing Mirror polishing chrome plated Mirror polishing chrome plated Mirror polishing chrome plated Mirror polishing chrome plated
Roller spacing 0.1~10mm adjustable 0.1~10mm adjustable 0.1~10mm adjustable 0.1~10mm adjustable
Spacing display mode Calibration/digital display Calibration/digital display Calibration/digital display Calibration/digital display
Safety device Collision type emergency stop Collision type emergency stop Collision type emergency stop Collision type emergency stop
Safety device number 8 PCS 8 PCS 8 PCS 8 PCS
Special function Emergency stop inversion Emergency stop inversion Emergency stop inversion Emergency stop inversion
Motor power 4.5KW 5.5KW 7.5KW 15KW
Power voltage 3phase,AC380V 3phase,AC380V 3phase,AC380V 3phase,AC380V
Dimension 1*1.1*1.4(M) 1*1.1*1.5(M) 1.5*1.2*1.5(M) 1.5*1.3*1.6(M)
Weight ≈2T ≈2.5T ≈3.4T ≈4T

Multifunctional Open Rubber Mixing Mill 0Multifunctional Open Rubber Mixing Mill 1

Open rubber mixing mill HZ-7015A.pdf
