Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-1213
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Stable Durability Stroller Tester Durable Multi Function AC380V

Description
MODEL: HZ-1213 NAME: Stroller Tester Baby Car Dynamic Durability Test Machine
Test Work: Double-seat Body (front And Rear) Test Speech: 5kw/h±0.1kw/h (adjustment)
Drive Horsepower: AC380V*3 Diameter *5HP Adjust The Distance: Max300mm
Effective Width: Max1000mm Test Count: Display Of Set Count With 6 LCD Digital
High Light:

Stable Stroller Tester

,

Multi Function Stable Stroller Tester

,

380V Durability Test Machine

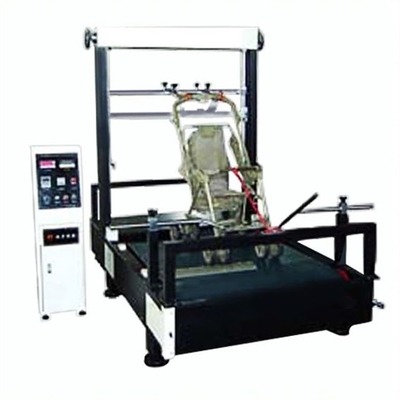

Stroller Tester Baby Car Dynamic Durability Test Machine AS/NZS2088:2000 HZ-1213



Equipment Summary:

HZ-1213Baby car dynamic durability test machine is produced according to CNS baby strollers dynamic durability test specification.



Methods Of Test:

HZ-1213Baby car dynamic durability test machine, the model baby in the car, the car will be fixed on the test bench,the belt speed can be adjusted to 1.4± 0.1m/sec( 5kw/h ±3.6 kw/h ). After 64 hours of continuous

testing, visual platform if is damaged. After a set number of times can automatically stop operation.

This machine is equipped with electric eye safety device, can prevent the handle and rubber beam ring

fracture causing stroller runaway to damage the test machine. This machine is suitable for durability test of hand pushing pram simulation traffic movement vehicle and bottom dynamic wheel.



Meet To The Standard:

Based on the design and manufacture of AS/NZS2088:2000 ASTM-F833 and CNS 6263-11, BSL-1996, EN1888:2003 specification.

Technical Parameter:



Model HZ-1213 Baby car dynamic durability test machine
Test work Double-seat body (front and rear)
Test speech 5kw/h±0.1kw/h(adjustment)
Drive mode

The roller drive rubber conveyor belt and add drum

reinforcement with special aluminum alloy belt actuator

Drive horsepower AC380V*3 diameter *5HP
Adjust the distance Max300mm
Effective width Max1000mm
Test count Display of set count with 6 LCD digital
Bearing load Max100 pounds
Power AC380V*3 diameter *5KW
Size 3300x1400x1900mm
Weight About 600kg
Impact block shape Trapezoidal, half arc or designated
Note If special requirements, depend on customer demand.
