Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-1216
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

3300×1400×1900mm Walking Bumpy Tester , Antirust Strength Test Machine

Description
MODEL: HZ-1216 NAME: Stroller Walking Bumpy Tester
Test Work: 1、2 Station (optional) Test Speed: 5kw/h±0.1kw/h (adjustable)
Adjust The Distance: Max. 300mm Power Plant: AC380V×3 Diameter ×3HP
Test Count: LCD,0-999,999 Weight: 600kg
High Light:

3300mm Walking Bumpy Tester

,

1900mm Walking Bumpy Tester

,

Antirust Strength Test Machine

Stroller Tester Stroller Walking Bumpy Tester EN1888:2003 HZ-1216



Equipment Summary:

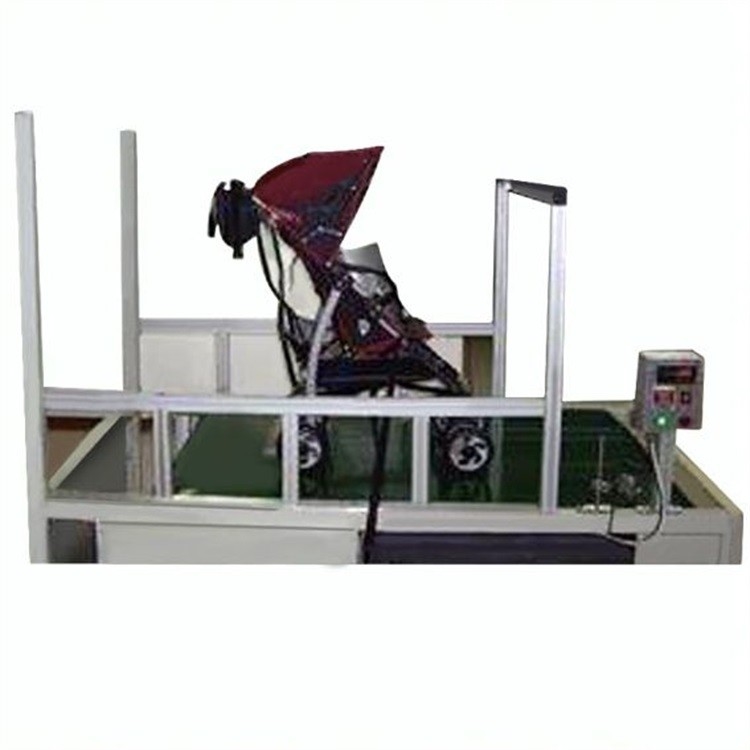

HZ-1216 Stroller walking bumpy tester is produced according to CNS baby strollers dynamic durability

test specification.Methods of test: the model baby in the car, the car will be fixed on the test bench, the

belt speed can be adjusted to 1.4± 0.1m/sec ( 5kw/h ±3.6 kw/h ). After 64 hours of continuous testing,

visual platform if is damaged. After a set number of times can automatically stop operation.

This machine is equipped with electric eye safety device, can prevent the handle and rubber beam ring

fracture causing stroller runaway to damage the test machine. This machine is suitable for durability test

of hand pushing pram simulation traffic movement vehicle and bottom dynamic wheel.



Correspond Standard:

EN1888:2003 Clause 17.2



Technical Parameters:

Model HZ-1216 Stroller walking bumpy tester
Test work 1,2 station (optional)
Test speed 5kw/h±0.1kw/h (adjustable)
Drive mode

The roller drive rubber conveyor belt and add drum

reinforcement with special aluminum alloy belt actuator.

Drive horsepower AC380V×3 diameter ×3HP
Adjust the distance Max. 300mm
Effective width Max. 1000mm
Test count LCD,0-999,999
Bearing load Max. 100Lb
Power AC380V×3 diameter ×5KW
Size (L×W×H) 3300×1400×1900mm
Weight about 600kg
Impact bloack shape Trapezoidal, half arc or designated





Baby car as far as possible not to use in any of the following circumstances:



1.Vibration, rocking occasions.

2.Direct sunlight.

3.Hot, dusty, humid places.

4.The AC power supply should be well grounded, to ensure safe use.

5.It is prohibited to use strong solvents, such as benzene, nitro categories oil for cleaning machine.

6.Shall not be injected into the water and debris inside the machine, in order to prevent damage to

electrical components and electrical shock.

7. The disassembling and assembling and debugging of the instrument display can only be approved by

the national metrology units and the company, other people are not allowed to overhaul.
