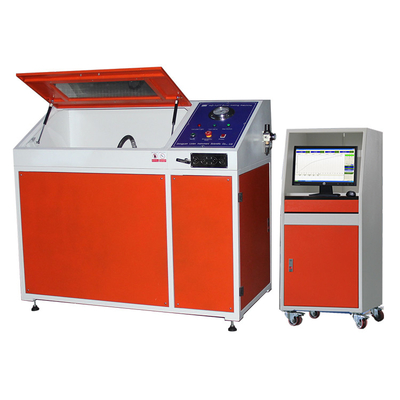

20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine

20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine
20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine 20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine 20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine 20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine

Large Image :  20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine

Product Details:
Place of Origin: China
Brand Name: Lixian
Certification: CE, ISO
Model Number: HZ-1377
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden case
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine

Description
Maximum Pressure: 20 MPa Accuracy: 0.1Mpa
Chamber Dimension: 135x60x46cm(L X W X H) Maximum Sample Size: 80cm
Motor Power: 1.5KW /2HP Power Consumption: 20A
Frame Weight: Approximately 160KG Water Tank: 50*40*30mm
High Light:

20A Automotive Testing Equipment

,

1.5KW Automotive Testing Equipment

,

Multipurpose Hydraulic Burst Testing Machine

Automotive Testing Equipment Hydraulic Burst Testing Machine HZ-1377





Automotive Testing Equipment Technical Parameters

Model HZ-1377
Maximum pressure 20 MPa
Accuracy 0.1Mpa
Pressure range 0 – 20 MPa
Chamber dimension 135x60x46cm(L x W x H)
Maximum Sample size 80cm
Motor power 1.5KW /2HP
Power consumption 20A
Power requirement 3P 380-420V 50Hz
Frame dimension (W x L x H) 165x65x130cm(L x W x H)
Frame weight Approximately 160KG
Liquid type for pressure test Water
Water temperature Room temperature
Grip head size 4’’ or according to customer‘s hoses size
Control system Touch screen or computer (optional)
Water tank 50*40*30mm(Approximately)



Automotive Testing Equipment Product Characteristic



1. Equipped with mud line booster pump, can be easily achieve output pressure arbitrary adjustable, control, memory instrument to record instantly blasting pressure.
2. Advanced technology, reasonable structure design, compact size, light weight, beautiful and tasteful.
3. All parts are confined by international famous brand standard parts, without any welding connection, convenient remove, high safety coefficient, long life, easy to maintain.

4. Can use a manual control, digital pressure gauge shows, the computer control methods of operation



20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine 0

20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine 1



Automotive Testing Equipment Applicable Industry



HZ-1377 0—20Mpa(if need more or big pressure, could be customize) hydraulic test table, can test copper radiator, aluminum radiator, intercooler, machine oil cooler, Silicon Rubber hose, evaporimeter, condenser and so on. Touch screen or computer display curve, record data, print report.

20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine 2

20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine 3

20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine 4

20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine 5

20Mpa PVC Water Pipe Automtive Oil Pipe Hydraulic Burst Testing Machine 6


FAQ

Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be provided if any performance failure occurs within 12 months, caused by non-human damage.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).15 years focusing on test instruments field. Six years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 15 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely.Each of the instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. Engineers would be to go abroad for training and repairing.

Q6: What about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
