Product Details:
|
Model: | HZ-8011 | Specification: | 250×180×2.5mm, 250×220×2.5mm |
---|---|---|---|
Reeling Density: | 7、9、11、13、15、19 Root/ Cm | Pre-tension Method+: | Pressure Re-classification Method –clip Pressure |
Power: | Ac220V, 50Hz | ||
Highlight: | 200R/Min Textile Test Equipment,400R/Min Textile Test Equipment,Multifunctional Textile Lab Equipment |

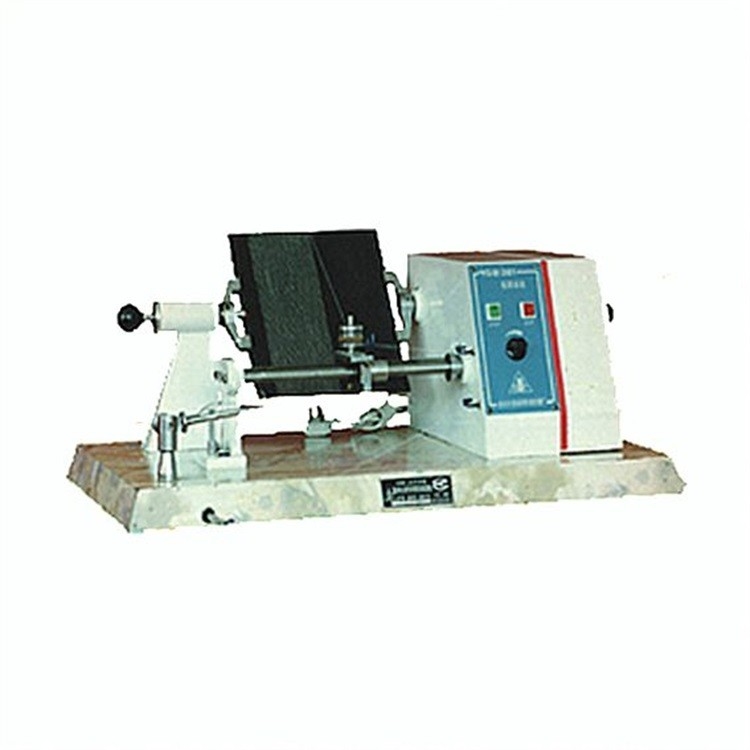

Textile Test Equipment Shaking Machine HZ-8011 GB9996-1988
Equipment description:
Shake system for cotton, chemical fiber and various blended yarn in the standard blackboard, to inspection and assessment of the quality of yarn appearance grade.
To meet the standard:
GB9996-1988 of pure cotton and chemical fiber yarn appearance quality of board test
Technical parameter:
Model | HZ-8011 |
Specification | 250×180×2.5mm,250×220×2.5mm |
Reeling density | 7,9,11,13,15,19 root/ cm |
Pre-tension method+ | Pressure re-classification method –clip pressure |
Board speed | 200~400r/min ( Adjustable) |
Power | ≤50W |
Power | Ac220V, 50Hz |
Dimension | 720mm×480mm×250mm (L*W*H) |
