Horizontal Burning Laboratory Testing Machines AC 220V 50Hz Stable

Large Image : Horizontal Burning Laboratory Testing Machines AC 220V 50Hz Stable

Product Details:

Place of Origin:	China
Brand Name:	Lixian
Certification:	CE/ISO
Model Number:	HZ-1717

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden case
Delivery Time:	5~8 days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	500 sets/per month

Contact Now

Horizontal Burning Laboratory Testing Machines AC 220V 50Hz Stable

Description

Model:	HZ-1717	Flame Time:	0 ~ 99 Minutes And 99 Seconds Can Be Set
Residual Burning Time:	0 ~ 99 Minutes And 99 Seconds Can Be Set	Internal Volume:	≥0.5 Cubic Meters, With Glass Observation Door
Flame Height:	20-175mm, According To Standard Requirements	After-flame Time:	0 ~ 99 Minutes And 99 Seconds Can Be Set
Burning Angle:	20 °, 45 °, 90 ° (ie 0 °) Can Be Adjusted	Test Gas:	More Than 98% Methane/37MJ/m3 Natural Gas (or Gas, Provided By The Customer)
Flow Meter:	105ml/min Standard	Burner Size Parameters:	Imported Lamp, The Inner Diameter Of The Nozzle Is Ø9.5±0.3mm, The Effective Length Of The Nozzle Is 100±10mm, And There Are Air Adjustment Holes
Power Supply:	AC 220V, 50Hz	Origin:	China
Highlight:	220V Laboratory Testing Machines , 50Hz Laboratory Testing Machines , Stable Horizontal Burning Tester

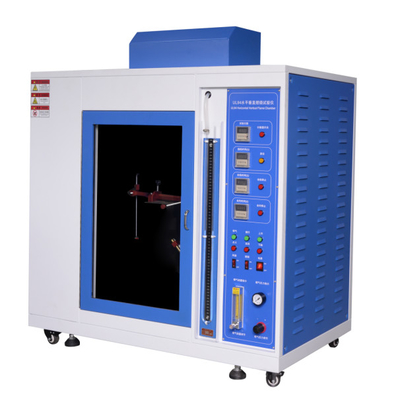

HZ-1717 UL94 Horizontal and Vertical Burning Tester

Equipment overview:

This tester is suitable for testing and evaluating the combustion characteristics of plastic materials. It is designed and manufactured according to the relevant provisions specified in the American UL94 standard "Flammability Test of Plastic Materials for Equipment and Appliance Parts". The vertical flammability test is equipped with a gas flow meter to adjust the size of the flame. It is driven by a motor, and the operation is simple and safe. This instrument can evaluate the flammability of materials or foams such as: V-0, V-1, V-2, HB grades.

Standard:

1. UL94 "Fire Test"

2. GBT2408-2008 "Plastics - Determination of Combustion Properties - Horizontal and Vertical Methods"

3. IEC60695-11-10 "Flame Fire Test"

4. GB5169.16-2017 "Fire hazard test for electrical and electronic products - Part 16: Test flame 50W horizontal and vertical flame test method"

Parameter:

Internal volume	≥0.5 cubic meters, with glass observation door
Timer	high-precision timer, adjustable within the range of 0 ~ 999.99 seconds, with an accuracy of ±0.5 seconds, the flame application time can be set, and the burning time can be recorded
Flame time	0 ~ 99 minutes and 99 seconds can be set
After-flame time	0 ~ 99 minutes and 99 seconds can be set
Residual burning time	0 ~ 99 minutes and 99 seconds can be set
Test gas	more than 98% methane/37MJ/m3 natural gas (or gas, provided by the customer)
Burning angle	20 °, 45 °, 90 ° (ie 0 °) can be adjusted
Burner size parameters	imported lamp, the inner diameter of the nozzle is Ø9.5±0.3mm, the effective length of the nozzle is 100±10mm, and there are air adjustment holes
Flame height	20-175mm, according to standard requirements
Flow meter	105ml/min standard
Product features	It is also equipped with lighting device, air extraction device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flow meter, gas U-shaped pressure gauge and sample holder
Power supply	AC 220V, 50Hz

Horizontal Burning Laboratory Testing Machines AC 220V 50Hz Stable 0
