Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

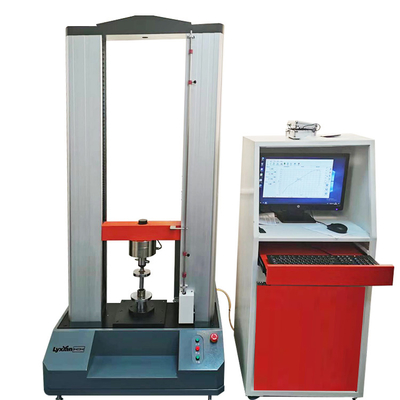

Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene

Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene
Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene
Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene

Large Image :  Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-1009A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene

Description
MODEL: HZ-1009A Accurate Grade: 1 Grade /0.5 Grade
Tester Resolution: Max Load 1/200000,constant The Resolution Effective Testing Width: 400mm(can Be Widened According To Customers Requirement )
Maximum Load: 2ton,5ton, 10ton, Option Usage: Universal Testing Machine,Tensile Testing Machine
Standard: BS.EN.ASTM,DIN,ASTM,ISO Motor: Panasonic Servo Motor
Warranty: 1 Year Operation: Computer Windows Operation,or PC Software
High Light:

Anticorrosive Universal Testing Machine

,

Sturdy Universal Testing Machine

,

Multiscene Universal Testing Machine For Steel

Metal Binding Target Compression Test Machine

Computer Servo Type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 10ton.



Universal Testing Machine Corresponding Standard

ASTM D412

ASTM D5587-15

ASTM D624

ATM D5035

ASTM D5034

ISO 9073-3

ISO 9073-4

ISO 9073-18

ISO2062 etc.

ISO 13934-1



Model HZ-1009A
Maximum load 2ton,5ton, 10ton, option
Accurate grade 1 grade /0.5 grade
Effective measuring range 0.2% to 100% (1 grade)/ 0.4% to 100% (0.5 grade)
Measuring accuracy Display the value ±1/Display the value±0.5
Tester resolution Max load 1/200000,constant the resolution
Load sensor

Basic configurationsensormax load: one

Extended configurationcan add more sensors

Effective testing width 400mm(can be widened according to customers requirement )
Effective tensile space 400500600mmcan be increased the height according to customers requirement
Range of testing speed 0.001500mm/min
Accruacy of displacement measurement Tolerance: ±0.5/ tolerance: ±0.2

Deformation of measured system

according to the requirements

Min span :10mmMax range of deformation 800mm

Extended deformation : Min span: 25mm50mm100mm, range of deformation 5mm10mm25mm

Accuracy of measured deformation Tolerance :±0.5 according to requirement of customer to choose the larger or small deformation
safety Electronic-limit protection
Testing platform moving device Fast /slow two speeds to control,can jog
Back to function of testing platform Manual or automatic operationAfter the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection Overload 10,automatic protection
fixture A set of tensile fixture
Machine size 1040×590×2000mm(lenght*width*height)
Motor Panasonic AC servo motor and drive
power 220V50HZ
power 0.75KWdepending on different demand of force, using different motor
weight about500 Kg
Product details

ecAnticorrosive Universal Testing Machine For Steel Sturdy Multiscene 0

Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene 1



Anticorrosive Universal Testing Machine For Steel Sturdy Multiscene 2

Metal Binding Target Compression Test Machine



UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 21 year.



Metal Binding Target Compression Test Machine
