Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-2004A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Environmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-Heat

Description
Model: HZ-2004 Standard:: IEC68-2-03_test Method Ca_Steady Damp-heat
Temprature Range: -70 Degree ~ +100(150) Degree Humidity Range: 20%~98%R.H.
Material: Stainless Steel Application: Industry,Machinery Parts,Auto Part
Dimensions: Customer Required,Customized Sizes Service: OEM\ODM
Standard: GB ASTM AISI DIN BS,DIN,ASTM,ISO Color: Customer Required
High Light:

Flameproof Environmental Testing Machine

,

Programmable Environmental Testing Machine

,

SUS304 Temperature And Humidity Test Chamber

-70 Degree ~ +100(150) Degree HOT-Selling Constant Temperature And Humidity Stable Test Chamber

Product Description

Equipment summary:

The machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.





Model (HZ-2004A)80-1000
Temperature range -70 degree ~ +100(150) degree
Humidity range 20%~98%R.H.
Accuracy/ uniformly ±0.1 degree ±0.1%R.H./ ±1.0 degree ±3.0%R.H.
Accuracy / volatility ±1.0 degree ±2.0%R.H. / ±0.5 degree ±2.0%R.H.
Heating / cooling time

About 4.0/min(heat),about 1.0/min(cool) ( 5~10/mm is

the specific condition )

Inside material Stainless steel SUS 304 #
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system

Air-cooled/ single-stage compressor(-20 degree) , wind,

water cooled/two-stage compressor(-40~-70 degree)

Protection

compressor overload switch, high and low pressure protection switch,

over-humidity-temperature protection switches, fuses, warning system

Accessories

recorder(purchase), view window, 50mm testing hole, PL lamp,

clapboard, Dry and wet gauze ball



Applicable industries:

Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.



Corresponding standard:

1. International Electrotechnical Commission Standard:

IEC68-2-03_test method Ca_Steady damp-heat

IEC68-2-01_test method A_cold

IEC68-2-02_test method B_dry heat

2. Military Standards:



3. Japanese Industrial Standard:

JIS C60068-2-3-1987 test method Ca: Steady damp-heat

JIS C60068-2-2-1995 test method B:dry heat

JIS C60068-2-1-1995 test method A:low temperature

4. USA Semiconductor Industry Standard:

JESD22-A101-B-2004 Constant temperature and humidity test

JESD22-A103-C-2004 High Temperature Storage Test

JESD22-A119-2004 Low Temperature Storage Test

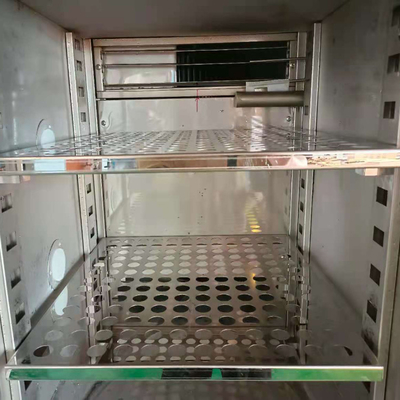

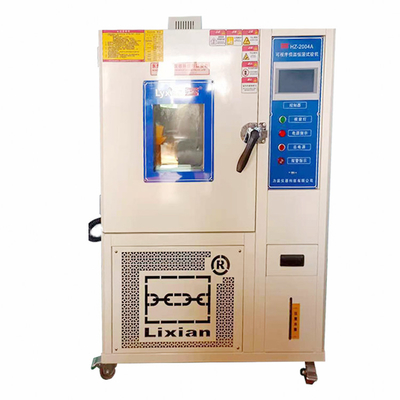

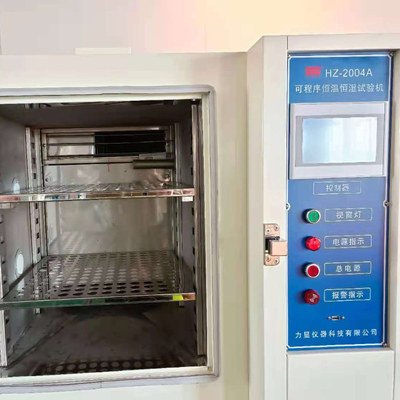

Detailed Images



Environmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-Heat 0Environmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-Heat 1



HOT-Selling Constant Temperature and Humidity Stable Test Chamber



HOT-Selling Constant Temperature and Humidity Stable Test Chamber
