Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-2011
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

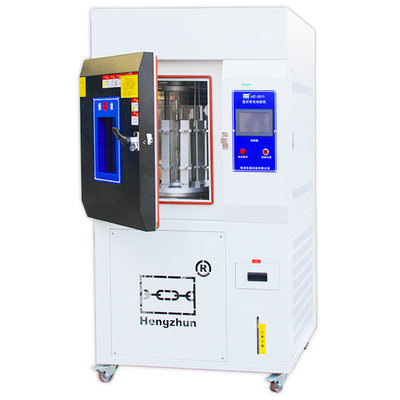

Meeting Standard IEC 68-2-9, ISO 4892-1, ASTM G151, Xenon Test Chamber

Description
Model: HZ-2011 Temprature Range: RT+10~80 Celsius
Testing Room Capacity: 500*600*500mm Humidity Range: 65%~98% RH
Certification: CE/ASTM/ISO Standard: IEC 68-2-9, ISO 4892-1, ASTM G151
Material: Stainless Steel Dimensions: Customer Required
High Light:

Moistureproof Ozone Test Chamber

,

Anticorrosive Ozone Test Chamber

,

Multiscene Ozone Testing Equipment

Meeting Standard IEC 68-2-9, ISO 4892-1,ASTM G151, Xenon Test Chamber



Xenon lamp aging testing machine is a comprehensive climate testing machine, in addition to climatic aging test, the light fastness of materials can be carried out to test, polymer materials exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials;



ISO 3865, Rubber, Vulcanized or Thermoplastic – Methods of test for staining on contact with organic materials ISO 4665, Rubber,Vulcanized or Thermoplastic – Resistance to weathering ISO 4892-2, Plastics-Methods of exposure to laboratory light sources-Part 2: Xenon-arc sources ASTM D2565 , Xenon-Arc – Plastics for Outdoor Applications JIS K 7350-2, Plastics-Methods of exposure to laboratory light sources-Part 2: Xenon-arc sources DIN EN 513, Unplasticized polyvinylchloride (PVC-U) profiles for fabrication of windows & doors GB/T 12831

Specification

Model Number

HZ-2011

Warranty

1 Year

Customized support

OEM, ODM

Place of Origin

China

Brand Name

lixian

Sensor

Platinum resistance; Pt100Ω/mv

Power

Electronic

Certificatiom

CE

Humidity range

65%~98% RH

Power

380v 3 phase

Temperature range

RT+10~80 celsius

Xenon lamp climatic chamber

vertical

Testing room D*W*H

500*600*500mm

Spray time

1~9999min, abjustable

Testing room size

500*600*500mm

Spectral wavelength

290nm~800nm(550w/m2)

Light source

Full spectrum xenon lamp (air-cooled)



it can be used for choosing new materials, improving existing materials, or assessment of change in material composition; It is divided into air-cooled 2.5kw and water-cooled 6.5kw with water-cooled machine. Product Use and Some Industry Testing Standards Lixian Brand Xenon lamp aging test chamber is dedicated to the analysis and testing of rubber, plastic, paint, paint and other chemical materials, the main services: performance testing, aging testing, composition analysis, formula research and development.

Meeting Standard IEC 68-2-9, ISO 4892-1, ASTM G151, Xenon Test Chamber 0



Meeting Standard IEC 68-2-9, ISO 4892-1, ASTM G151, Xenon Test Chamber 1



Meeting Standard IEC 68-2-9, ISO 4892-1, ASTM G151, Xenon Test Chamber 2
