Product Details:
|
Certification: | CE/ASTM/ISO | Temprature Range: | From 50 °C To 75 °C |
---|---|---|---|
Testing Room Capacity: | 137 * 53 * 136cm | Material: | Stainless Steel |
Application: | Industry,Auto Part | Dimensions: | Customized Sizes |
Product Name: | Rustproof Accelerated Weathering Chamber , Multifunctional Xenon Arc Test Chamber | Service: | Customized Service |
Standard: | GB ASTM AISI DIN BS,DIN,BS,ASTM,ISO | Color: | Customer Required |
Size: | Customized Size | ||
Highlight: | Rustproof Accelerated Weathering Chamber,1 Phase Accelerated Weathering Chamber,Multifunctional Xenon Arc Test Chamber |

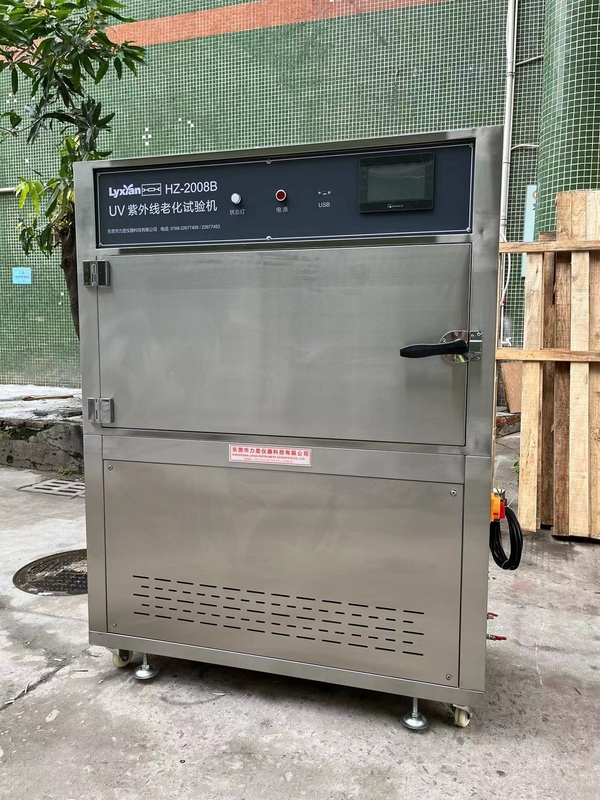

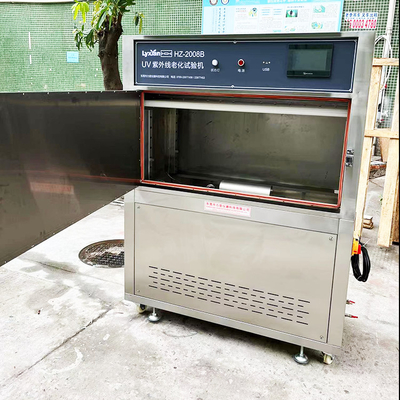

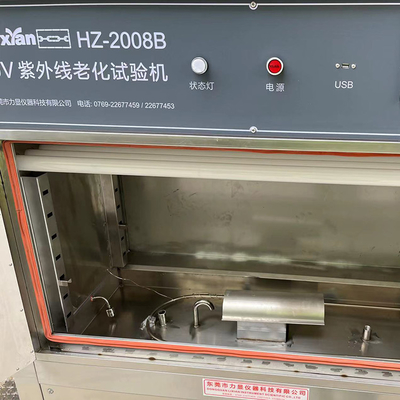

Best Price China UV Accelerated Weathering Test Chamber Price HZ-2008 CE/ASTM/ISO
Uv Accelerated Weathering Aging Test Chamber can simulate the ultraviolet ray in the sun, rain and dew to damage the material, QUV using UV lamp simulate the effect ultraviolet ray of sunlight, cold rain and dew.
Corresponding Standard
Accord with ASTMG53-77, GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS, SAE
Main Functions
The materials are tested for several days or weeks, you can know the damage types include: bleaching, discoloration,
loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
Technical Parameter:
Model | HZ-2008 UV aging test chamber |
Lamps Quantity | UV Lamp 8pcs, spare lamp: 4pcs, (ATLAS, UVA340, UVB313, UVC351) |
Recorder | Option |
Radiometer | Option |
UV Temperature | From 45 °C to 70 °C |
Black temperature | From 40 °C to 60 °C |
Testing Capacity and sample size | 48 piece (75 x 150mm) / 50 piece (75 x 150mm) |
Water and Consumption | Distilled water, 8 liters / day |
Dimension (W x D x H) | 137 x 53 x 136cm |
Weight | 136kg |
Power | 1 ψ, 120V/60Hz, 16A or 230V/50Hz, 9A, 1800W (max) |
1. Simulated Sunlight
The damage of material durability is mainly caused by the sun's ultraviolet ray, it produces very little visible or infrared spectral energy. We can choose according to different testing requirements of different wavelengths of UV ultraviolet light, because each lamp in the total energy and wavelength of UV radiation are not the same. Usually, UV lamp can be divided into two kinds of UVA and UVB.
2. UV Lamp Type
UVA-340 lamp: UVA-340 lamps can simulate short-wave UV light in the sunlight excellently, ie sunlight from 365nm to 295nm cutoff wavelength.
UVB-313 lamps: UVB-313 lamps are usually issued by short-wave UV radiation than the Earth's surface in the strong solar ultraviolet radiation, which can speed up the greatest degree of material aging.
UVA-351 lamp: Simulation of UV sunlight through windows, it is the aging of indoor materials for testing the most effective.
