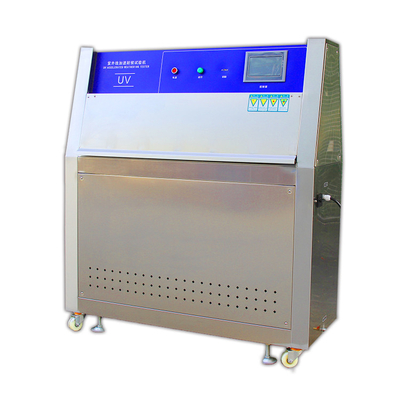

UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C

UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C
UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C
UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C

Large Image :  UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-2008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C

Description
Certification: CE/ASTM/ISO Temprature Range: From 50 °C To 75 °C
Testing Room Capacity: 137 * 53 * 136cm Material: Stainless Steel
Application: Industry Dimensions: Customized Sizes
Service: OEM ODM Standard: GB ASTM AISI DIN BS,DIN,BS,ASTM,ISO
Color: Customer Required Size: Customized Size
High Light:

ODM Environmental Testing Machine

,

1800W Environmental Testing Machine

,

Multipurpose Accelerated Aging Chamber

Accelerated Aging Uv Test Chamber UV Weather Equipment



Uv Accelerated Weathering Aging Test Chamber can simulate the ultraviolet ray in the sun, rain and dew to damage the material, QUV using UV lamp simulate the effect ultraviolet ray of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating.



Uv Accelerated Weathering Aging Test Chamber

Uv Test Chamber Main Functions
The materials are tested for several days or weeks, you can know the damage types include: bleaching, discoloration,
loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.


Uv Test Chamber Corresponding Standard
Accord with ASTMG53-77, GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS, SAE


Uv Test Chamber Technical Parameter:
Model HZ-2008 UV aging test chamber
Lamps Quantity UV Lamp 8pcs, spare lamp: 4pcs, (ATLAS, UVA340, UVB313, UVC351)
Recorder Option
Radiometer Option
UV Temperature From 45 °C to 70 °C
Black temperature From 40 °C to 60 °C
Testing Capacity and sample size 48 piece (75 x 150mm) / 50 piece (75 x 150mm)
Water and Consumption Distilled water, 8 liters / day
Dimension (W x D x H) 137 x 53 x 136cm
Weight 136kg
Power 1 ψ, 120V/60Hz, 16A or 230V/50Hz, 9A, 1800W (max)


1. Simulated Sunlight
The damage of material durability is mainly caused by the sun's ultraviolet ray, it produces very little visible or infrared spectral energy. We can choose according to different testing requirements of different wavelengths of UV ultraviolet light, because each lamp in the total energy and wavelength of UV radiation are not the same. Usually, UV lamp can be divided into two kinds of UVA and UVB.
2. UV Lamp Type
UVA-340 lamp: UVA-340 lamps can simulate short-wave UV light in the sunlight excellently, ie sunlight from 365nm to 295nm cutoff wavelength.
UVB-313 lamps: UVB-313 lamps are usually issued by short-wave UV radiation than the Earth's surface in the strong solar ultraviolet radiation, which can speed up the greatest degree of material aging.
UVA-351 lamp: Simulation of UV sunlight through windows, it is the aging of indoor materials for testing the most effective.
3. Temperature Control:
The temperature control in each cycle, the temperature can be controlled at a set value. At the same time the board can monitor the temperature of the thermometer. Higher temperature can accelerate the aging process, while temperature control for reproducibility of the test is also very important.

4. Water Spray System:
Sprinkler system with 12 nozzles, each side in the test room of 6; sprinkler system can run a few minutes and then shut down.This short cooling water samples quickly and create a thermal shock conditions.

UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C 0

UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C 1UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C 2

UV Accelerated Aging Environmental Testing Machine 1800W Multipurpose From 50 °C to 75 °C 3

UV Accelerated Aging Testing MachineHZ-2008.pdf
