Product Details:
|
Humidity Range: | 20%~95%R.H | Temprature Range: | -65 Degree ~+80 Degree ( A:0 Degree, B:-20 Degree, C:-40 Degree, D:-65 Degree ) |
---|---|---|---|
Testing Room Capacity: | According To Customer Specified Size For Design | Inside Material: | Stainless Steel |
Cooling Time: | About 4.0/minute | Material: | Stainless Steel |
Application: | Industry,Machinery Parts,Auto Part | Dimensions: | Customer Required,Customized Sizes |
Product Name: | Environmental Testing Machine Stainless Steel Durable | Standard: | GB ASTM AISI DIN BS,DIN,BS,ASTM,ISO |
Highlight: | 50Hz Environmental Testing Machine,60Hz Environmental Testing Machine,Stainless Steel Environmental Test Chamber |

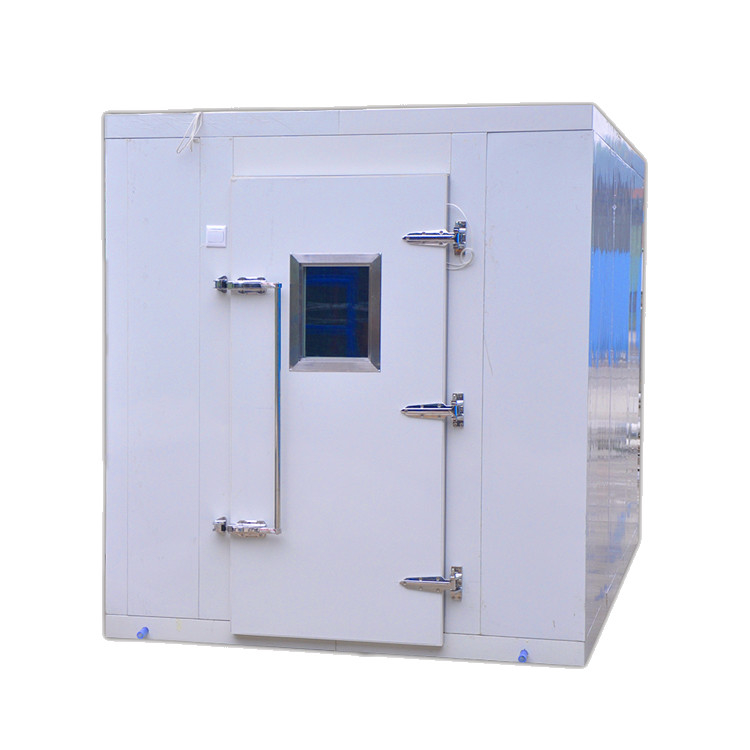

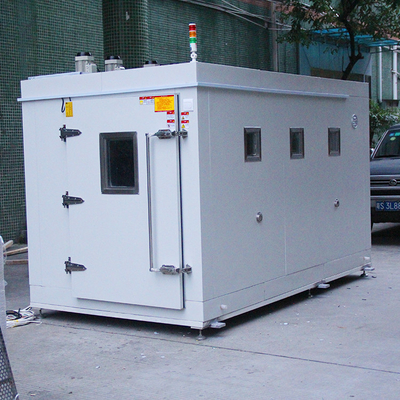

-65 Degree ~+80 Degree Walk-In Environmental Test Chamber Environmental Walk In Chamber
Equipment Summary:
Walk-in constant temperature and humidity testing machine is consist of Control Panel, electrical panels, moisturizing plate blower, heater, humidifier, freezer. It provides a large spare to test the temperature and humidity for large-scale parts, semi-finished products, it applied to test products that large-scale or the quantity more, such as: computer terminals, vehicle parts.
Features:

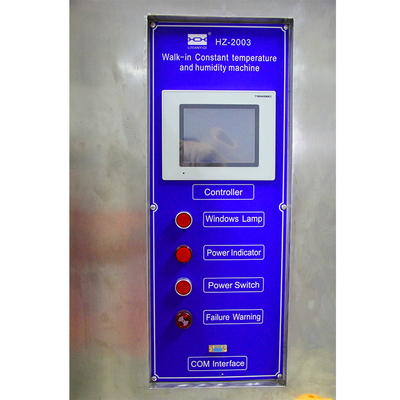

1. Large walk-in constant temperature and humidity testing machine is equipped with high-precision intelligent thermostat, controller of temperature and humidity using touch-screen display. Optional equiped with temperature and humidity records.
2. Refrigeration circuit of large walk-in constant temperature and humidity testing machine automatically select to operate performance of refrigeration circuits, so that it starts cooling at high-temperature state.
3 Large walk-in constant temperature and humidity test machine is equipped with advanced security, protective device leak circuit breakers, over-temperature protective device, lack phase protective devices and lack water protector.
Model | HZ-2003 | |
Size (cm) | According to customer specified size for design | |
Temprature range | -65 degree ~+80 degree ( A:0 degree, B:-20 degree, C:-40 degree, D:-65 degree ) | |
Humidity range | 20%~95%R.H. | |
Cooling time | About 4.0/minute | |
Inside material | stainless steel | |
Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | |
Cooling sytem | Water-cooled / two-stage compressor |
Applicable Industry:
Used in defense industry, aerospace industry, automation components, automotive parts,etc.
