Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine

Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine

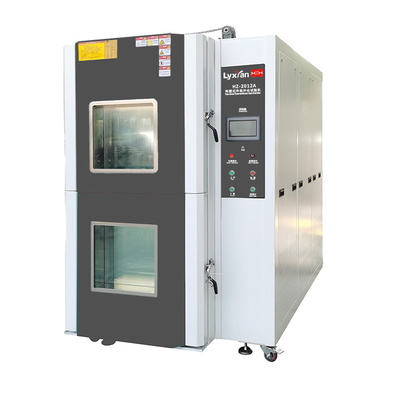

Large Image :  Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-2012A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: n
Contact Now

Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine

Description
Corresponding Standard ：: SJ/T10187-91Y73, SJ/T10186-91Y73, IEC68-2-14 Temprature Range: -77 Degree ~+205 Degree
System: 2-zone Transition By Vertical Transfer Of Specimens Model: HZ-2012A
Service: OEM ODM,customized Service Safety Protection: Over Temperature Protection
Ventilation Adjusted: Auto-tuning Type Data Analysis: Real-time Analysis
Water Ring Radius: R400mm Inside Material: Stainless Steel
Temperature Accuracy: ±0.5°C Delivery: In Stock And Prompt Ship
Highlight:

50Hz Temperature Humidity Chamber

,

60Hz Temperature Humidity Chamber

,

Anticorrosive Humidity Test Machine

SJ/T10187-91Y73 2-Zone Water-Cooled Temperature Impact Chamber Thermal shock test chamber

Two Boxes Air-cooled Hot and Cold Thermal Testing ...

Thermal shock test chamber, also known as the high and low temperature impact test chamber, is known as the cold and thermal impact machine in Taiwan. It is used to test the degree of material structure or composite material that can be tolerated in a continuous environment of extremely high temperature and extremely low temperature. In the shortest time, test the chemical changes or physical damage caused by thermal expansion and contraction. The test box is divided into two parts: high temperature zone and low temperature zone. The test sample is placed in the moving basket. The unique heat storage and cold storage structure is adopted.



Thermal shock test chamber Specification

Model
HZ-2012 Water-cooled
System
2-zone transition by vertical transfer of specimens
Performance *1

Test area
Hot exposure range
＋ 60℃ to ＋ 205℃
Cold exposure range
−77℃ to 0℃
Temp. fluctuation *2
± 1.0℃
Hot chamber
Pre-heat upper limit
＋ 205℃
Heat-up time *3
Within 90 min from ambient temp.
to ＋ 200℃ (Setting: ＋ 205℃)
Cold chamber
Pre-cool lower limit
−77℃
Pull-down time *3
Within 90 min from ambient temp. to −77℃ (Setting: −77℃)

Temp. recovery performance (2-zone)

Recovery conditions
・Hot exposure: ＋150°C (setting: ＋155°C 30 min)
・Cold exposure: − 65°C (setting: − 68°C 30 min)
・Sensor position: downstream
・Specimen: Plastic molded ICs, 10kg
Temp. recovery time
Specimen temp. within 15 min
Transfer time between hot & cold chambers
Within 10 seconds

Ambient recovery

Recovery conditions
・Hot exposure: ＋150℃ to max. ＋ 55℃
・Ambient temp.: ＋ 23℃
・Specimen: Plastic molded ICs, 10 kg
Inside dimensions
W710×H345×D410 mm
Utility requirements
Ambient temp. range
＋ 5℃ to ＋ 40℃
Power supply
(Voltage fluctuation: rating ± 10%)
200V AC
3φ 3W 50/60Hz
208V AC
3φ 3W 60Hz *6
220V AC
3φ 3W 60Hz
380V AC
3φ 4W 50Hz
400/415V
AC
3φ 4W
50Hz *7
Maximum load current
64 A
62 A
58 A
34 A
32 A
Cooling water supply pressure *8
0.2 Mpa to 0.5 Mpa (2 kg/ cm2G to 5 kg/ cm2G)
Cooling water supply rate *9
2050L/ h (at reference water temp. ＋ 25℃),
3400L/ h (at reference water temp. ＋ 32℃)
Piping connection size
Carbon steel pipe, ID 32 mm
Cooling water temp. range
＋ 5℃ to ＋ 38℃
Noise level *10
Max. 65 dB
Exhaust heat rate
12600 kJ/h (3000 kcal/h)
Exhaust air volume
250 m3/h
Thermal shock test chamber Main function:
Used in electrical and electronic components, automation components, communication components, auto parts, metals, chemical materials, plastics, etc., defense industry, aerospace, military industry, BGA, PCB base board, electronic chip IC, semiconductor ceramics and polymer materials The physical change, testing the material's repeated tensile force against high and low temperature and chemical changes or physical damage of the product in thermal expansion and contraction, can confirm the quality of the product, from precision IC to heavy mechanical components, no one Ideal test tool without it..



Thermal shock test chamber Heating and Cooling Systems:

The thermal shock chamber is equipped with separate heating and cooling systems. These systems use various methods, such as electric heaters, liquid nitrogen, or refrigeration systems, to rapidly and precisely control the temperature within the chamber.



Thermal shock test chamber Corresponding standard :
SJ/T10187-91Y73
SJ/T10186-91Y73
IEC68-2-14
GB/T 2424.13-2002
GB/T 2423.22-2002
QC/T17-92
EIA 364-32
Thermal shock test chamber Basket or Fixtures:
A basket or fixtures are used to hold the specimen or product securely during the thermal shock test. They are designed to withstand the temperature changes and allow for easy insertion and removal of the specimen.

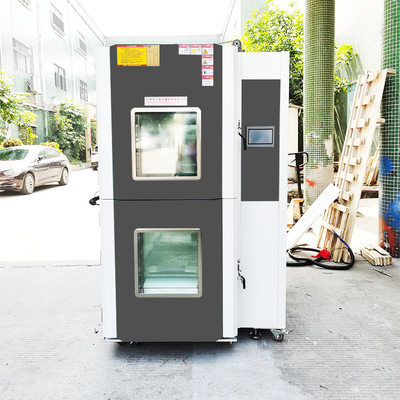

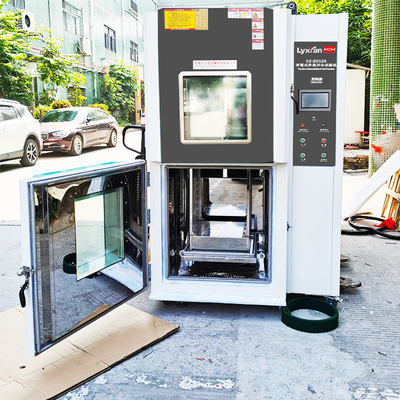

Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 0
Product Details
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 1
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 2
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 3
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 4
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 5
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 6
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 7
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 8
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 9
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 10
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 11
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 12
Thermal Shock Test Chamber 50/60Hz Temperature Humidity Chamber Anticorrosive Humidity Test Machine 13
