Electronic Dynamic Balancing Machine

Electronic Dynamic Balancing Machine
Electronic Dynamic Balancing Machine
Electronic Dynamic Balancing Machine Electronic Dynamic Balancing Machine Electronic Dynamic Balancing Machine Electronic Dynamic Balancing Machine

Large Image :  Electronic Dynamic Balancing Machine

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: ce
Model Number: HZ-9706
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Electronic Dynamic Balancing Machine

Description
Brand Name: Lixian Model Number: HZ-9706
Power: Electronic Maximum Mass Of Workpiece (kg): 42
Max Diameter Of Workpiece: 600 Balance Speed (r/min): Variable Frequency Stepless Speed Regulation
Motor Power (kW): 1.5
High Light:

Electronic Dynamic Balancing Machine

,

1.5KW Dynamic Balancing Machine

,

Stepless Driveline Balancing Machine

Tire Double sided Dynamic Balancing Machine

Equipment Overview

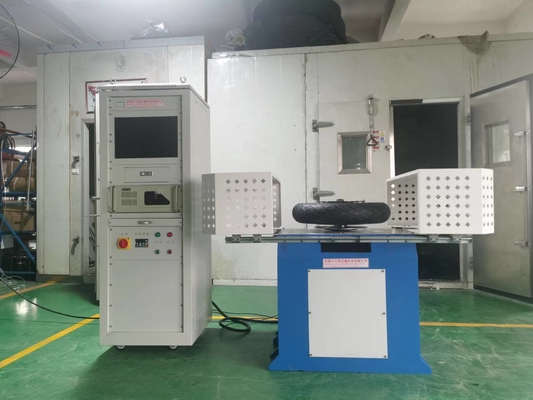

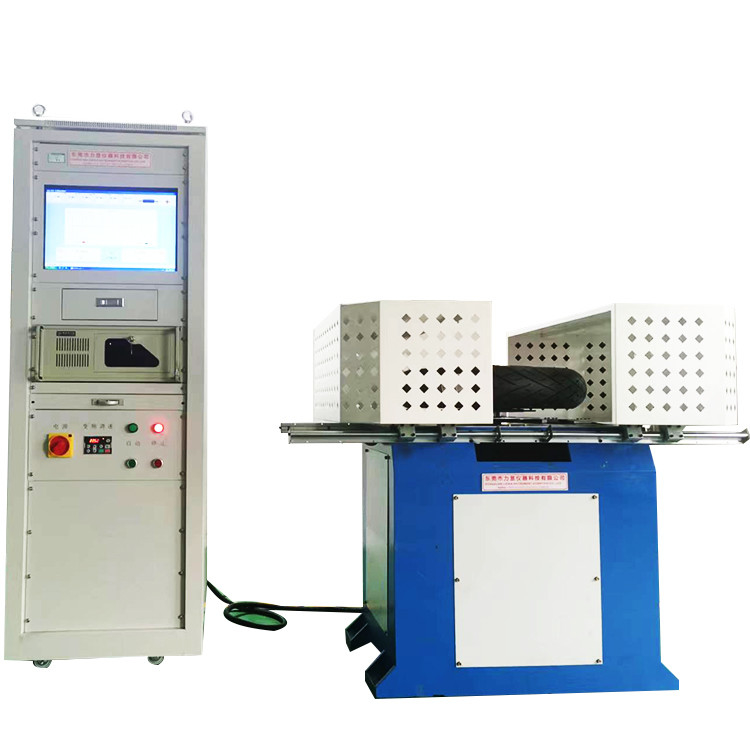

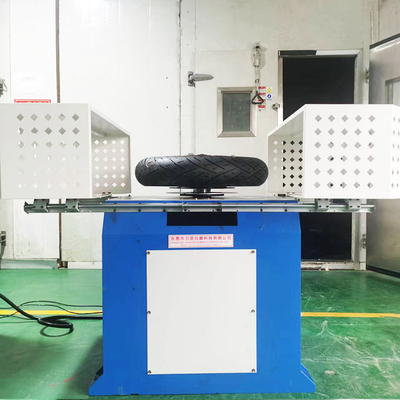

It's a kind of vertical structure hard bearing balancing machine with a wide range of uses, which is designed and manufactured by our factory by introducing foreign advanced technology. It is widely used in water pump impellers, brake discs, saw blades, fans, etc. Balance effect of pulleys, hubs and tires
Features
It not only has the characteristics of large measurement range, high efficiency, safe and simple operation, and intuitive display, but also occupies a leading position in the domestic balancing machine industry.Standard.
Specification
Brand Name
Lixian
REGION
DONGGUAN, CHINA
Power
Electronic
Model
HZ-9706
Maximum mass of workpiece (kg)
42
Max Diameter of Workpiece
600
Balance speed (r/min)
Variable frequency stepless speed regulation
Motor power (kW)
1.5
Min reachable unbalance (g.mm/kg)
emar≤ 2
Measurement Plane (pcs)
2
Fixture
Provide 2 sets of product fixtures
Test motorcycle size
16" and 18"
measuring system
digital display, live braking speed control device
Power supply and external dimensions
1. Power supply: 380V, 2.2KW
2. Dimensions: Electric cabinet: 0.6 meters long, 0.6 meters wide, 1.75 meters high Machine: Length 0.8m × Width 0.6m × Height 1m
3. Serial port: There is a 232 serial port, which cannot output reports, and there is a database
4. Calibration frequency: The manufacturer will arrange calibration before leaving the factory. It is recommended to calibrate once a year in the later stage. Usually, the customer can calibrate it by himself, weigh it with a balance weight, and put it on the machine, and the display is as much as it is.
5. Air inlet trachea diameter: 6mm in diameter
Quality standard:
1. Supplier product manufacturing standard GB/T4201-2006.
2. The supplier's product manufacturing requirements are also in accordance with the technical agreement signed by both parties. Warranty period: The "Three Guarantees" period of the supplier's products is one year, with lifetime maintenance.
Acceptance:
1. At the supplier, the equipment is subject to factory inspection, and the rotor is checked and verified.
2. At the buyer's place, conduct on-site acceptance of the equipment, conduct practical operations on physical workpieces, and complete the training that should be known and known.

After-sale service:
1. The supplier is responsible for the pre-ex-factory training services for the equipment ordered by the buyer, such as operation, balance calculation, and common troubleshooting.
2. The supplier is responsible for the operation training service for the operator of the purchaser at the purchaser.
3. Once the equipment fails, the company will respond to the support in the fastest way after receiving the notification from the user, and the arrival time will not exceed 24 hours to carry out maintenance work.
4. The supplier is responsible for the free service of the equipment during the "Three Guarantees" period, and is responsible for the lifetime maintenance service and spare parts supply service after the "Three Guarantees".
