Product Details:
|
MODEL: | HZ-4006A | Standard: | ISO 2247 ISO 13355 |
---|---|---|---|
Frequency Modulation Range (Hz): | 1~600 | ||
Highlight: | ISO 13355 Electromagnetic Vibration Table,Multifunctional Electromagnetic Vibration Table,Antirust Package Test Equipment |
Equipment summary:

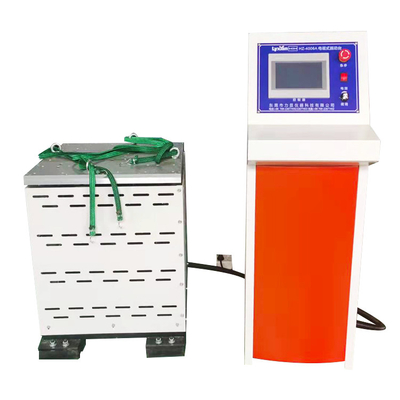

HZ-4006A Electromagnetic Vibration Table (Triaxial Direction) is suitable for electronic, electromechanical, optical communications, packaging, auto parts, toys and other industry research, development, quality control and manufacturing. quality control inspection and production line, assembly line. It is more suitable for quality inspection of finished product for improving product quality. It is more suitable for quality inspection of finished product for improving product quality.
Standard
ISO 2247 packaging Full shipping packages and unit goods Fixed low frequency vibration test
ISO 13355 packaging - full, filled transport packaging and unit load - Vertical random vibration test
IEC 60068 basic environmental test procedures
ASTM d999 test method for vibration testing of shipping containers
ASTM d4728 random vibration test method for shipping containers
ASTM d3580 standard for product vibration test (vertical linear motion)
GB / T 4857 packaging - Basic tests for transport packages
GB / T 2423 environmental test for electric and electronic products
Software functions:
The independently developed CIMS + FCS is adopted for the shaking table software system, which can be expanded and configured with acceleration sensor and PC monitoring. The latest international vibration test standards are quoted to realize the selection of fixed frequency, sweep frequency, frequency doubling, program, logarithm and random vibration modes.
Features
1. X, y and Z axis vibration can be realized on the same table, with program control, accurate and balanced frequency, and no drift during long-term operation;
2. With single point, segment and multi segment time timing;
3. Stepless amplitude adjustment, with frequency sweeping and frequency fixing functions, to meet the test requirements of different industries;
4. Embedded amplitude prediction program, four point synchronous excitation, uniform table vibration;
5. The anti-interference circuit is added to solve the interference of strong electromagnetic field to the control circuit, and the table top is non-magnetic and static.
6. It is made of composite industrial materials, precision processing, beautiful and generous platform, humanized operation and control, and adopts special measurement and control module to make the equipment work more stable.
Technical Parameters
Model | HZ-4006A |
Standard | ISO 2247 ISO 13355 |
Product model | 4006A |
Frequency modulation range (Hz) | 1~600 |
Product load (kg) | 50kg (customized if larger) |
Frequency accuracy | 0.01 Hz |
Maximum acceleration | <20g |
control mode | Industrial touch screen |
Amplitude (mm) | 0.001-5 (Note: it can be displayed only after adding amplitude sensor) |
Excitation mode | Electromagnetic type |
Amplitude modulation mode | Electronic amplitude modulation |
Vibration direction | Triaxial (x + y + Z) |
Vibration waveform | sine wave |
Test mode | Fixed frequency, sweep frequency, frequency doubling, program, logarithm, random |
Time setting range | 0-9999h / M / s minute arbitrary setting |
Number of cycles | 0-9999 arbitrary setting |
Table size (mm) | (W)500 × (D) 500 (one out of three) ;(W) 750 × (D)750;(W)1000 × (D)1000 |
