Product Details:
|
MODEL: | HZ-6003 | Capacity: | 200KG, Import Load Cell |
---|---|---|---|
Sensor: | American Brand Load Cell | ||
Highlight: | 220V Packaging Testing Instruments,Computer Servo Packaging Testing Instruments,Stable Crush Testing Machine |

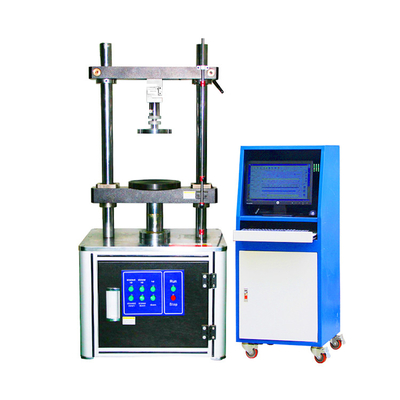

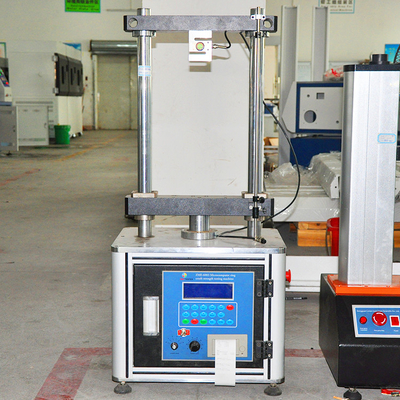

Computer Servo Type Ring Crush Strength Testing Machine HZ-6003A is used to test the compression resistance degree of corrugated paper and kraft paper in upright direction at certain condition. This machine can also do flat crush strength test, compression resistance test,Sticky degrees test as well as other compression tests.This machine also equipped with advanced high precision load device and load displayer, thus the test load value can display and read directly.
GB/T 2679-1995
GB/T 6548-1998
GB/T 6546-1998
GB/T 2679.6-1996
Characteristics:
1. Controlled by HP computer and Lixian special test software together;
2, Can achieve a variety of experiments;
3, Can directly print the test results, the operation is simple;
4, The test results can be converted to three units of pound, Kpa, Kg;
5, The appearance of the surface painting parts are smooth, smooth, uniform color, beautiful appearance;
6, The test accuracy is high.
Technical specifications:
Model | HZ-6003A |
Max capacity | 200KG, import load cell |
Sensor | American Brand load cell |
Unit | kgf,Lbf,N , can be changed |
Compression Speed | 12.7±3.0mm/min(Or by the customer separate and non-section speed) |
Constant Speed | 12.7,25.4, 38.1, 50.8, 60mm/min |
Compression plate size | Φ130mm. |
Determination of the maximum pressure | 200kg(can make it according to the requirement) |
Ring Compression Testing Machine is equipped with an optional fixture into the test under the following | ①Ring Crush Test Center is equipped with disc and ring voltage dedicated sampler to carry out cardboard ring compression strength test (RCT) ②Equipped with side pressure (adhesive) and the secondary sample for lead blocks for compressive strength of corrugated board edge test (ECT) ③Peel strength test frame is equipped to carry out corrugated board adhesion (peel) strength test (PAT) ④Is equipped with platen specimen sampler to carry out compressive strength of corrugated board level test (FCT) |

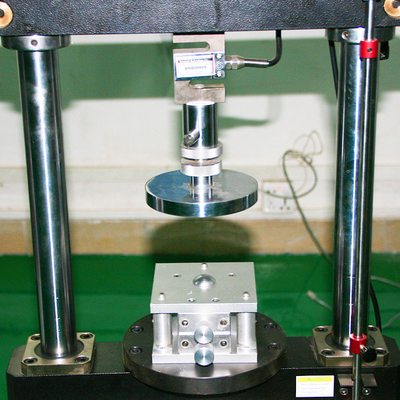

Standard fixture | Ring Crush Test Fixture for a group. |
Motor | Taiwan “Delta” servo motor |
Power | 220V 50Hz |
Weight | 75kg |
Dimensions | 480×480×600mm |
HS code | 9024800000 |
