Hardness HRC45 Helmet Testing Equipment Anticorrosive Stable

Hardness HRC45 Helmet Testing Equipment Anticorrosive Stable
Hardness HRC45 Helmet Testing Equipment Anticorrosive Stable Hardness HRC45 Helmet Testing Equipment Anticorrosive Stable Hardness HRC45 Helmet Testing Equipment Anticorrosive Stable

Large Image :  Hardness HRC45 Helmet Testing Equipment Anticorrosive Stable

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-8101
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Hardness HRC45 Helmet Testing Equipment Anticorrosive Stable

Description
Model: HZ-8101 Drop Hammer: The Impact Of The Drop Hammer:
Weight: 5-5.01kg Diameter: 96mm
Cone Angle: 60 ° Material: 45 # Steel.
Cone Tip Diameter: 1mm Length: 40mm
Maximum Diameter: 28mm Hardness: HRC45
Drop Height:: 1000mm. Standard: GB / T 2812-2006
High Light:

HRC45 Helmet Testing Equipment

,

Anticorrosive Helmet Testing Equipment

,

Stable Helmet Impact Testing Machine

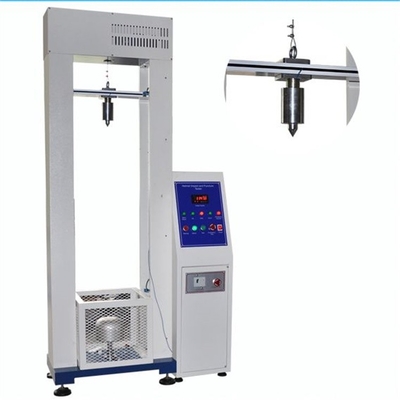

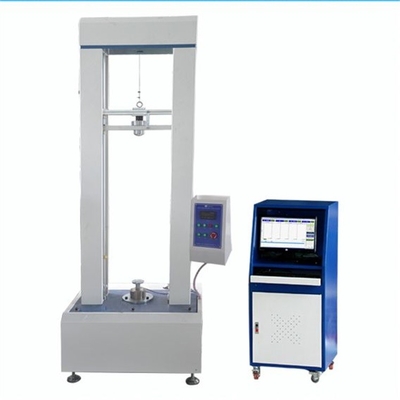

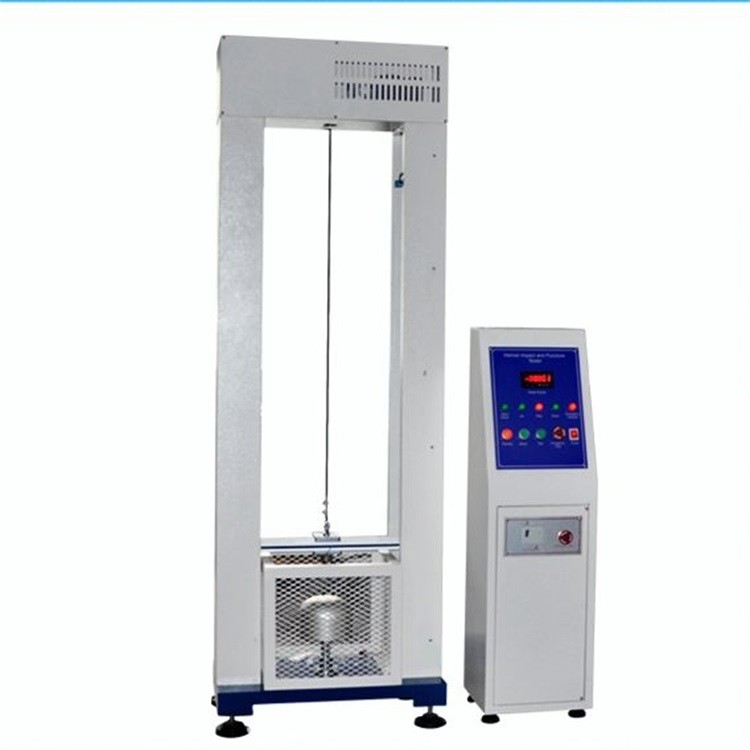

Helmet Impact and Puncture Test Machine Helmet Test Equipment GB / T 2812 -2006



Helmet Impact and Puncture Test Machine HZ-8101 dedicated to the detection helmet impact absorption properties and puncture resistance.



I. Purpose:
Helmet Impact and Puncture Test Machine HZ-8101 dedicated to the detection helmet impact absorption properties and puncture resistance.

II. Test methods:
Preconditioning: tempering treatment, ultraviolet irradiation pretreatment, water treatment, the above requirements can be pre-integrated with the A705 pretreatment tank.
Helmet shock absorption performance test methods: the height of the drop hammer 1000mm ± 5mm; sequentially by flooding, heat, cold, ultraviolet radiation pretreatment helmets for testing.
Puncture resistance test method: puncture the cone axis so that it passes through the center of the helmet crowns 100mm diameter weakest point within the structure, adjusting cone tip to puncture crowns contact point height 1000mm ± 5mm, turn right after flooding, high temperatures , temperature, ultraviolet irradiation pretreatment helmets tested.

III. Main technical parameters:
Model HZ-8101
Drop hammer the impact of the drop hammer
Weight 5-5.01kg
Diameter 96mm
Material 45 # steel
Puncture hammer Weight: 3-3.05kg
Cone angle 60 °
Cone tip diameter 1mm
hardness HRC45
length 40mm
maximum diameter 28mm


IV. Features:
(1) Drop hammer and hammer to replace simple operation.
(2) With automatic guidance system to ensure accurate impact hammer and hammer down exactly hit the helmet.
(3) 3 electric hoist with optical positioning device, automatic positioning, accurate and reliable.
(4) 4 wallop professional precision sensors, range is 2t, accuracy is ± 0.02%.
(5) LED digital display, auto-save maximum force.

V. Standard:
GB / T 2812-2006 "helmet test methods" within the shock absorbing properties and puncture resistance test standards.
GB / T 2811-2007 "helmet"
