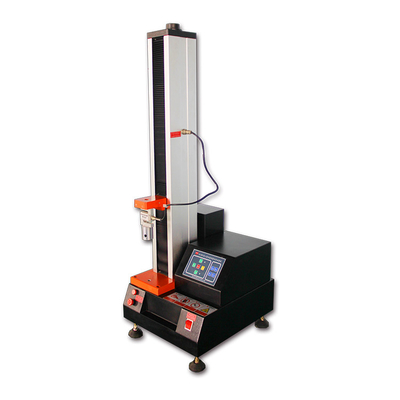

220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e

220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e
220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e
220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e 220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e 220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e 220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e

Large Image :  220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-1007E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e

Description
Maximum Load: 50N, 100N, 200N, 500N, 1KN (optional ) Effective Tensile Space: 300mm
Measuring Accuracy:: The Value ±1% / The Value ±0.5% Power: Electronic
Power Supply: 220V 50Hz Weight: About 160 Kg
High Light:

50Hz Electronic Polarizer

,

220V Electronic Polarizer

,

50Hz peel strength tester

500N, 1KN (Optional ) Electronic Polarizer 180 Degree Peel Test Machine Hz-1007e



Equipment summary:
It has accurate load speed, range of force measurement, This series of machine using single-space structure, operational space at the bottom, it is mainly applied to test non-metallic and metallic material which the load is less than 1KN.

Main Function

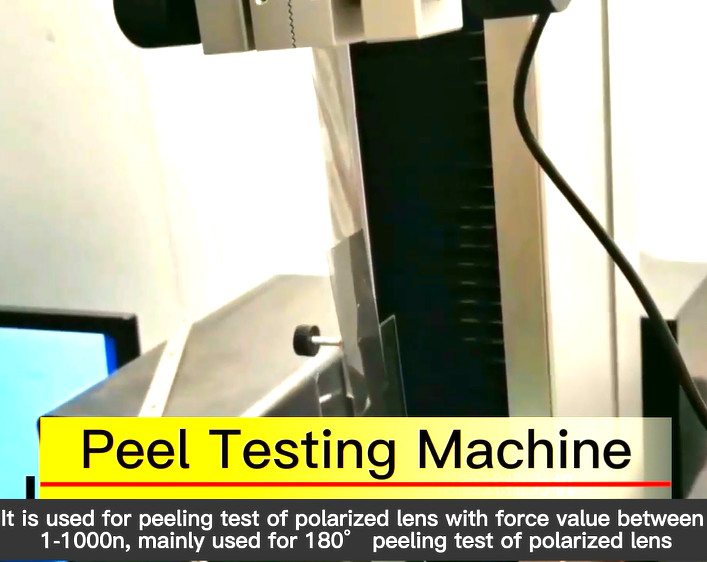

This Series machine can be applied to test lots of materials in tensile,compression, tear, Adhesive Tape peel ( 90 degrees and 180 degrees) and other small mechanical test(within 1KN), such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.


Corresponding standard:
ASTM D3330, ASTM D882, JIS K 6854, ASTM E4, ASTM D828, ASTM D1938, ASTM F88, ASTM F904, ISO 37, JIS P8113.

Technical parameters:
Model Number
HZ-1007E
Accurate grade
1grade/0.5 grade
Certification
CE/ROHS/ISO
Material testing machine Maximum load
10N,20N,50N,100N,200N, 500N, 1KN,option
Effective measuring range
0.2%~100%/0.4%~100%
Measuring accuracy
the value ±1%/ the value ±0.5%

①. Single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kgf, Lbf, N, ton
③. Function of free to take point;
④. With multi-calibration function;
⑤. Auto printing function;
⑥. Using 24-bit AD acquisition, resolution 1 / 200000;
⑦. Decimal digits 0 to 4 arbitrary choice;

220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e 0
220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e 1
220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e 2220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e 3220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e 4220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e 5
UTM Fixture
220V 50Hz Electronic Polarizer 180 Degree Peel Strength Tester Hz-1007e 6
Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.
