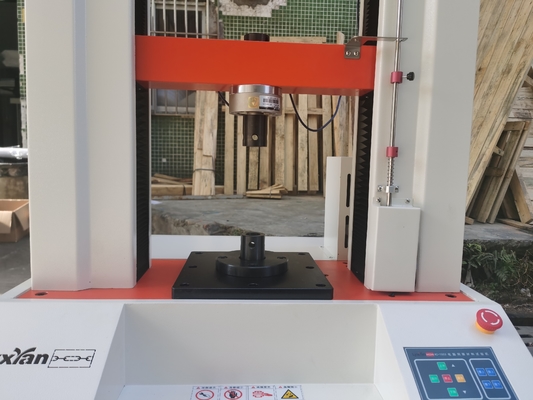

Max Load 20KN Universal Compression Strength Tester 0.5grade Accuracy

Max Load 20KN Universal Compression Strength Tester 0.5grade Accuracy
Max Load 20KN Universal Compression Strength Tester 0.5grade Accuracy

Large Image :  Max Load 20KN Universal Compression Strength Tester 0.5grade Accuracy

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-1003A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Max Load 20KN Universal Compression Strength Tester 0.5grade Accuracy

Description
Model: HZ-1003A Warranty: 1 Year
Accuracy: 0.5grade Effective Force Range: 0.4%~100% (0.5grade)
Load Cell: Basic Configuration:one Piece( Max Load) Effective Test Width: 390mm (can Be Enlarge As Customer Request)
Max Load: 20KN Application: Steel,fiber,fabric,universal Tester
High Light:

UTM Compression Strength Tester

,

20KN Compression Strength Tester

,

0.5grade Accuracy Universal Testing Machine

20kn Universal Test Machine Hz-1003a For ASTM D 412, ISO 37 Dumbbell Sample

Equipment summary:

Universal Testing Machine (UTM) is used to test both the tensile and compressive strength of materials. Universal Testing Machines are named as such because they can perform varieties of tests on an equally diverse range of materials, components, and structures. The machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive, computer and color inkjet printer.. It can be tested all the materials in stretch, compression, bending, shear, embedded relay, peeling, tearing, crack, etc, such as rubber, plastics, leather, metal, nylon wire, fabric, paper, aerospace, packaging, construction, petrochemical, electrical, vehicle, etc.



Technical parameters:

Model HZ-1003A
Max load 20KN
Accuracy 0.5grade
Effective force range 0.4%~100% (0.5grade)
Effective test width 390mm (can be enlarge as customer request)
Effective Tensile stroke 800mm (can be enlarge as client request)
Test speed 0.01~500mm/min
accuracy of displacement ≤0.5%
Overload protection Overload 10%, automatic protection
Fixture One set of standard tensile grip
Dimentions 870*540*2200mm(L*W*H)
Drive system Taiwan “Delta” AC servo motor +drive+High precision ball screw
Power supply 220V, 50HZ
Power 0.4KW

Specifications:

1.Computer Servo Type Universal Testing Machine
A. High-precision sensor 1ton from the U.S.A. Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz
C. Power System: Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw
D. Control System: it is more precise using Pulse Command control modem, the range in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjusted to fast and slow by the control board. it is automatically saved after testing.
E. Data transmission: RS232 Transfer
F. Display: Windows XP test software.

2. items can be tested in the Computer Servo Type Universal Testing Machine
Common items: ( display data and calculation )
● tensile stress ● tensile strength
● tensile strength ● rate of elongation at break
● fixed stress ● rate of stress at break

3.Computer servo control material testing machine test curve
Max Load 20KN Universal Compression Strength Tester 0.5grade Accuracy 0



Max Load 20KN Universal Compression Strength Tester 0.5grade Accuracy 1

Max Load 20KN Universal Compression Strength Tester 0.5grade Accuracy 2

HZ-1003A Computer Servo Type Universal Testing Machine































UTM Fixture

Max Load 20KN Universal Compression Strength Tester 0.5grade Accuracy 4
Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 22 year.
.
