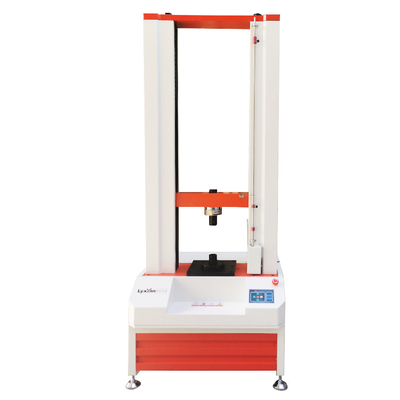

Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn

Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn
Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn
Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn

Large Image :  Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-1003A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate
Contact Now

Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn

Description
Accuracy: 0.5grade Effective Test Width: 390mm (can Be Enlarge As Customer Request)
Resolution: 1/200000 Application: Steel,fiber,fabric,universal Tester
Model: HZ-1003A Power: Electronic
Load Cell: Basic Configuration：one Piece( Max Load) Effective Force Range: 0.4％～100％ (0.5grade)
Warranty: 1 Year Max Load: 20KN
High Light:

390mm Tensile Testing Machine

,

Max Load 20kn Tensile Testing Machine

,

Steel Strip Universal Testing Machine

Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn



Tensile Testing Machine (UTM) HZ-1003A is used to test both the tensile and compressive strength of materials. Universal Testing Machines are named as such because they can perform varieties of tests on an equally diverse range of materials, components, and structures.



Tensile Testing Machine Equipment summary:

The machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive, computer and color inkjet printer. it is taken account of modern industrial design and ergonomics in modeling and coating. It can be tested all the materials in stretch, compression, bending, shear, embedded relay, peeling, tearing, crack, etc, such as rubber, plastics, leather, metal, nylon wire, fabric, etc.


Tensile Testing Machine Technical parameters:

Model HZ-1003A
Max load 20KN
Accuracy 0.5grade
Effective force range 0.4％～100％ (0.5grade)
Load cell Enlarge configuration:can be increased extra laod cell
Effective test width 390mm (can be enlarge as customer request)
Effective Tensile stroke 800mm (can be enlarge as client request)
Test speed 0.01～500mm/min
accuracy of displacement ≤0.5％
Power supply 220V, 50HZ
Power 0.4KW
Weight About 300 Kg

Tensile Testing Machine Specifications:

1.Computer Servo Type Universal Testing Machine
A. High-precision sensor 1ton from the U.S.A. Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz
C. Power System: Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw
D. Control System: it is more precise using Pulse Command control modem, the range in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjusted to fast and slow by the control board. it is automatically saved after testing.
E. Data transmission: RS232 Transfer
F. Display: Windows XP test software.
G. easy to control five-speed and calibration system.
H. test software can precision control in position, speed, rate of load force and rate of stress, satisfy the different requirements of test.
I. Test space: Testing width is about 400 mm (standard), moving space of active iron 1000mm (excluding fixtures)
J. displacement: coder 2500 P / R, increase four-time accuracy. adopt Japanese Lejing coder that has strong anti-jamming capability, displacement resolution 0.001mm.
Small deformation: Metal extensometers, parsing 0.001mm.
K. Safe equipment: the system would shut down if overload or over-trip

2. items can be tested in the Computer Servo Type Universal Testing Machine
Common items: ( display data and calculation )
● tensile stress ● tensile strength
● tensile strength ● rate of elongation at break
● fixed stress ● rate of stress at break
● stress strength ● tear strength
● the value of force at any point ●rate of elongation at any point
● pull-out strength ● force of adhesion and value of peak

3.Computer servo control material testing machine test curve
Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn 0

Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn 1

Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn 2



Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn 3

UTM Fixture

Steel Strip Laser Butt Welding Strength Tensile Testing Machine 20kn 4
Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 22 year.
.
