5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

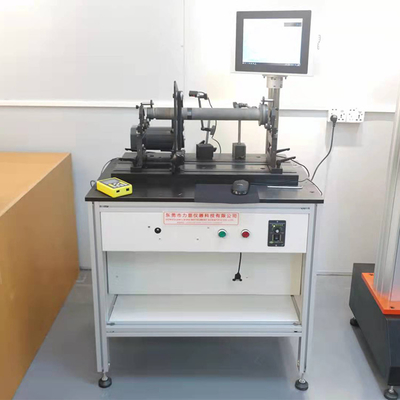

5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools

5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools
5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools 5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools 5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools

Large Image :  5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: ce
Model Number: HZ-9701A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools

Description
Distance Between Two Support Bearings (mm): 20-550, 40-550 Minimun Achieveable Residual Unbalance(gmm/kg: Emar≤0.3 Emar≤0.5
Balance Speed (r/min) (when Dragging Workpiece Diameter Ø100): 400-3000,frequency Conversion Stepless Speed Regulation 400-3000,frequency Conversion Stepless Speed Regulation: 0.25
Max Mass Of Workpiece(kg): 1.6;5;16;20 Motor Power (kw): 0.25
Unbalance Reduction Rate (%): URR≥95%
High Light:

Dynamic Balancing Machine 3000r/min

,

0.25kw Dynamic Balance Machine

,

Turbocharger Rotors Dynamic Balancing Machine

Dynamic Balancing Machine Max Mass of Workpiece 1.6;5;16;20 kg HZ-9701A

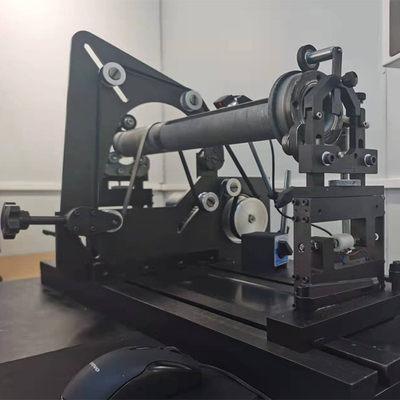

Dynamic balancing machine adopts ring-belt transmission to ensure the balance quality and accuracy of the workpiece. The ring-belt transmission is convenient to load and unload, and the work efficiency is high.

Dynamic Balancing Machine Overview

Belt Drive Impeller Dynamic Balancing Machine is widely used in the balance correction of rotating body workpieces such as motor rotors, power tool machine tool spindles, and ventilation equipment. Ring belt dragging-is the use of rubber endless belt or silk woven endless belt, the rotor is driven by the motor pulley, so the ring belt dragging requires the rotor surface to have a smooth cylindrical surface, and the balance accuracy is high.



5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools 0

Dynamic Balancing Machine
 Application
It is mainly a hard-bearing balancing machine that combines high-precision mechanical parts and advanced electrical parts into one. This series of products is one of the universal horizontal belt drive balancing machines developed, designed and manufactured by our company based on the core technology at home and abroad. , Is currently the most advanced model in the world, applied to various rotating workpieces, such as: micro-motors, power tools, water pumps, turbocharger rotors, textile machinery, high-speed tools, gyroscopes, fans, aerospace and other industries.

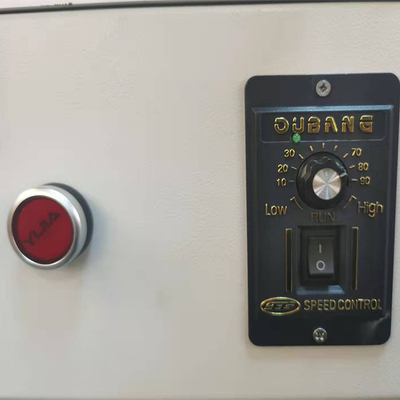

This machine adopts a belt transmission device, which has the advantages of high precision, high efficiency, convenient operation, intuitive display, rapid measurement, stable performance, and the use of frequency conversion speed regulation device to control the speed.
The electromechanical measurement system can be equipped with a microcomputer digital display measurement system or a computer measurement system.


Dynamic Balancing Machine Purpose
An unbalanced rotor generates a pressure on its supporting structure and the rotor itself during its rotation, and causes vibration. Therefore, the dynamic balance of the rotor is very necessary. The balancing machine is to check the dynamic balance of the rotor in the rotating state. The function of dynamic balance is:
● Improve the quality of the rotor and its components
● Reduce noise
● Reduce vibration
● Improve the trial life of supporting parts (bearings)
● Reduce user discomfort
● Reduce the power consumption of the product


Technical Parameters

Model HZ-9701B-1 HZ-9701B-1.6 HZ-9701B-5S HZ-9701B-5X HZ-9701B-16 HZ-9701B-20
Max Mass of Workpiece(kg) 1 1.6 5 5 16 20
Max Diameter of Workpiece Ø260mm Ø360mm Ø360mm
Distance Between Two Support Bearings (mm) 20-550 40-550
V-Shape Journal Diameter Scope of Workpiece (mm) Ø3-Ø20 Ø3-Ø30 Ø5-Ø40
(With roller bracket)
Ø10-Ø40
(With roller bracket)
Ø10-Ø40
Diameter Scope of Driving Belt (mm) Ø10-Ø120 Ø10-Ø150 Ø10-Ø200
Balance speed (r/min) (when dragging workpiece diameter Ø100) 400-3000,frequency conversion stepless speed regulation
Motor Power (kw) 0.25

5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools 1

5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools 2

5Kg Belt Drive Impeller Dynamic Balancing Machine For Micro Motors / Power Tools 3
