1.Computer Servo Type Universal Testing Machine
A. High-precision sensor 1ton from the U.S.A. Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz
C. Power System: Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw
D. Control System: it is more precise using Pulse Command control modem, the range in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjusted to fast and slow by the control board. it is automatically saved after testing.
E. Data transmission: RS232 Transfer
F. Display: Windows XP test software.
G. easy to control five-speed and calibration system.
H. test software can precision control in position, speed, rate of load force and rate of stress, satisfy the different requirements of test.
I. Test space: Testing width is about 400 mm (standard), moving space of active iron 1000mm (excluding fixtures)
J. displacement: coder 2500 P / R, increase four-time accuracy. adopt Japanese Lejing coder that has strong anti-jamming capability, displacement resolution 0.001mm.
Small deformation: Metal extensometers, parsing 0.001mm.
K. Safe equipment: the system would shut down if overload or over-trip

2. items can be tested in the Computer Servo Type Universal Testing Machine
Common items: ( display data and calculation )
● tensile stress ● tensile strength
● tensile strength ● rate of elongation at break
● fixed stress ● rate of stress at break
● stress strength ● tear strength

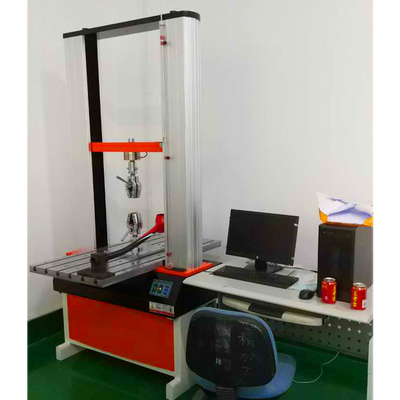

Universal Testing Machine (UTM) HZ-1003A is used to test both the tensile and compressive strength of materials. Universal Testing Machines are named as such because they can perform varieties of tests on an equally diverse range of materials, components, and structures. Most UTM models are modular, and can be adapted to fit the customer’s needs.
