Fatigue Cracking Rubber Tester ISO132 ISO133 50mm Adjustable Eccentric Wheel

Fatigue Cracking Rubber Tester ISO132 ISO133 50mm Adjustable Eccentric Wheel
Fatigue Cracking Rubber Tester ISO132 ISO133 50mm Adjustable Eccentric Wheel

Large Image :  Fatigue Cracking Rubber Tester ISO132 ISO133 50mm Adjustable Eccentric Wheel

Product Details:
Place of Origin: China
Brand Name: Lixian
Certification: ISO/ASTM/CE/ROSH
Model Number: HZ-7003
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 5000~8000/per set
Packaging Details: standard export wooden case
Delivery Time: 5~8 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 sets /per month

Fatigue Cracking Rubber Tester ISO132 ISO133 50mm Adjustable Eccentric Wheel

Description
MODLE: HZ-7003 Standard: ISO/ASTM/CE/ROSH
Under Gripper Reciprocating Frequency: 300c/min The Upper And Lower Gripper Adjustable Maximum Distance: 200mm
Maximum Distance Adjustable Eccentric Wheel: 50mm The Clip Device Maximum Distance Travel Under: 100mm
Outside Dimension: 700mm×450mm×980mm Weight: 120kg
High Light:

ISO132 Rubber Tester

,

ISO133 Rubber Tester

,

Fatigue Cracking Rubber Testing Machine

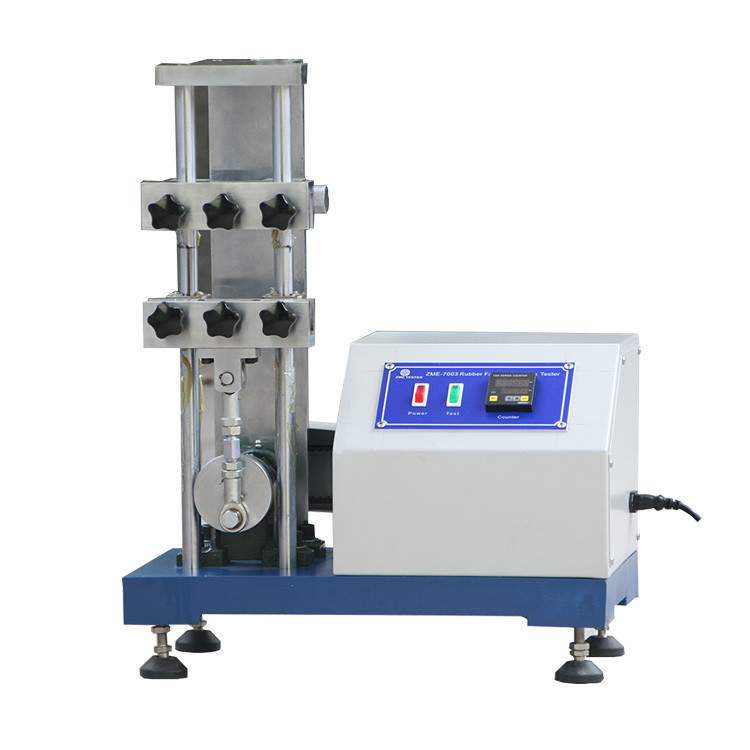

Rubber Fatigue Cracking Tester HZ-7003 Standard ISO132,ISO133 50mm Maximum Distance Adjustable Eccentric Wheel

Fatigue Cracking Tester Equipment Overview:

Rubber fatigue crack testing machine used to measure cracking performance after repeated flex for vulcanized rubber, rubber and other materials, digital setting, display flex times, automatic shutdown, designed host and electrical control as a whole, and each specimen can be a separate clamping, nice in appearance, easy operation, improved testing machine in the domestic.



Fatigue Cracking Tester corresponding Standard

According with GB/T 13934and GB/T13935,GB/T3901,GB/T4495,ISO132,ISO133.



Fatigue Cracking Tester Technical Parameter

Model HZ-7003
Under Gripper reciprocating frequency 300c/min
The upper and lower gripper adjustable maximum distance 200mm
Maximum distance adjustable eccentric wheel 50mm
the clip device maximum distance travel under 100mm
Outside dimension 700mm×450mm×980mm
Weight 120kg



Fatigue Cracking Rubber Tester ISO132 ISO133 50mm Adjustable Eccentric Wheel 0

Fatigue Cracking Rubber Tester ISO132 ISO133 50mm Adjustable Eccentric Wheel 1

Rubber Fatigue Cracking Tester-HZ-7003.pdf
