Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C

Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C
Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C
Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C

Large Image :  Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-2011
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C

Description
Certification: CE/ASTM/ISO Temprature Range: RT+10~80 Celsius
Humidity Range: 65%~98% RH Model: HZ-2011
Light Source: Full Spectrum Xenon Lamp (air-cooled) Spectral Wavelength: 290nm~800nm(550w/m2)
Testing Room Capacity: 500*600*500mm Xenon Lamp Climatic Chamber: Vertical
High Light:

Electronic Component Xenon Test Chamber

,

Astm G 151 Xenon Test Chamber

,

Xenon Environmental Testing Machine

Xenon Test Chamber For Electronic Component Meeting Standard Astm G 151 High Quality Temprature Range RT+10~80 Celsius

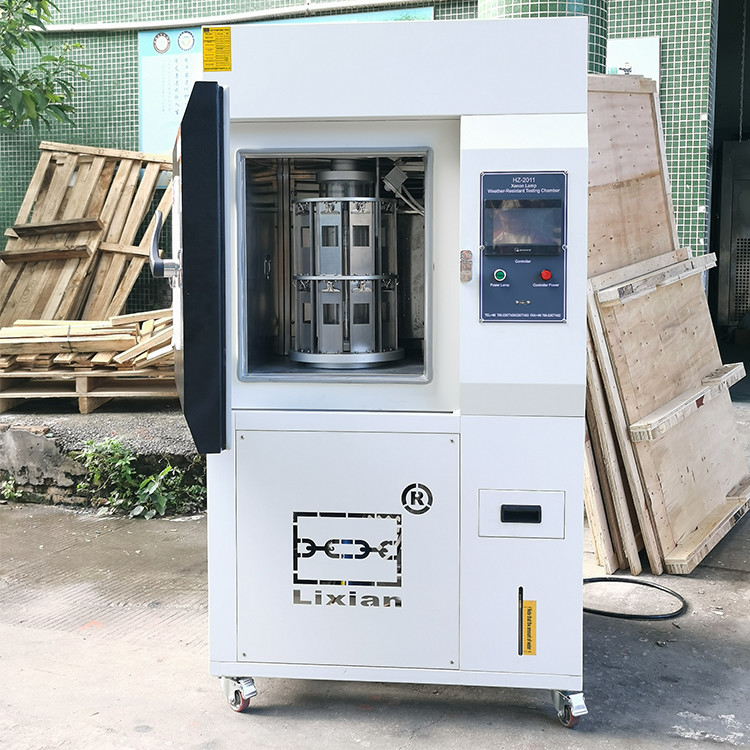

Xenon lamp aging testing machine is a comprehensive climate testing machine, in addition to climatic aging test, the light fastness of materials can be carried out to test, polymer materials exposed at simulated sunlight.



It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition; It is divided into air-cooled 2.5kw and water-cooled 6.5kw with water-cooled machine.



This section is mainly to list some of the test standards for the test of various industries reference. Universal Standard IEC 68-2-9, Basic Environmental Testing Procedures ISO 4892-1, Plastics-Methods of exposure to laboratory light sources ASTM G151,General Guidelines for Exposure of Nonmetallic Materials ASTM G155, Xenon-Arc Test Apparatus for Exposure of Nonmetallic Materials



Specification

Model Number

HZ-2011

Sensor

Platinum resistance; Pt100Ω/mv

Power

Electronic

Certificatiom

CE

Humidity range

65%~98% RH

Power

380v 3 phase

Temperature range

RT+10~80 celsius

Xenon lamp climatic chamber

vertical

Testing room D*W*H

500*600*500mm

Spectral wavelength

290nm~800nm(550w/m2)

Light source

Full spectrum xenon lamp (air-cooled)





Imported xenon lamp , reliable quality

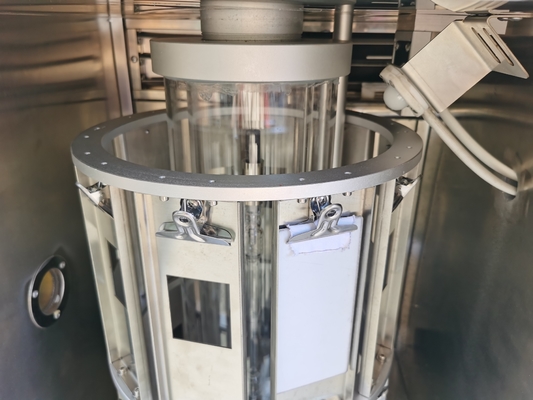

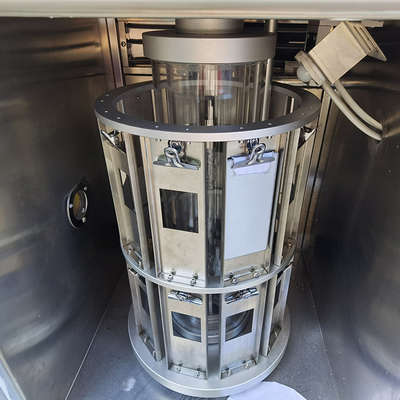

Lixian Brand Xenon lamp aging test chamber, adopts planetary design, the lamp tube is perpendicular to the horizontal plane, located in the center of the test chamber, the style frame rotates around the lamp tube during the test, just like the regular operation of the solar system. The test area will be increased by at least 30%, and the test uniformity will be increased by at least 50%,more conducive to scientific repeatability of test data.



Unique structure equipment, national patent certificate

Lixian Brand Xenon lamp aging test chamber, adopts planetary design, the lamp tube is perpendicular to the horizontal plane, located in the center of the test chamber, the style frame rotates around the lamp tube during the test, just like the regular operation of the solar system. The test area will be increased by at least 30%, and the test uniformity will be increased by at least 50%,more conducive to scientific repeatability of test data.

Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C 0

Electronic Component Xenon Test Chamber Astm G 151 Temprature Range RT+10-80C 1
