Salt Corrosion Spray Temperature And Humidity Test Chamber In Electronic Area 108L 270L 480L Testing Room Capacity

Salt spray test chamber used to test the corrosive resistance of products whose the surface was treated with LED paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc

Salt Spray Test Chamber Material
(A) testing room using PVC polyvinyl chloride plate (from Taiwan), acid-resisting and alkali-resisting, cleaning easier.
(B) cover of testing room using acrylic panels (imported organic glass), the thickness is 5mm.
(C) reagents added bottles attached with water gauge, cleaning easy and not easy to break.
(D) saturated air barrels is made of SUS # 304 stainless steel.
(E) testing room to adopt indexing frame, can be arbitrarily adjust the angle, Surrounded by fog and placed more piece .

Salt Spray Test Chamber Corresponding Standard
IEC68-2-11 salt spray test ASTM.B117-97 salt spray test
IEC68-2-52 1996 salt spray test ASTM B117 Standard Practice for Operating Salt Spray (Fog)
GB/T 10125-1997 salt spray test CNS.4158 salt spray test
GB.10587-89 salt spray test CNS.4159 CASS Accelerated acetic acid copper salt spray test Apparatus
GB/T 2423.18-2000 salt spray test JIS H8502 salt spray test
GB/T 2423.17-1993 salt spray test GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Salt Spray Test Chamber  According to CNS JIS ASTM GB2423.19 specifications, can be set constant temperature to control
(A) Salt spray test: NSS, ACSS
1. testing room : 35 ℃ ± 1 ℃
2 saturated air barrels : 47 ℃ ± 1 ℃
(B) anti-corrosion test: CASS (copper acetate)
1.testing room: 50 ℃ ± 1 ℃
2. saturated air barrels: 63 ℃ ± 1 ℃

Salt Spray Test Chamber  Technical Parameters

programmable salt spray testing machine 120L HZ-20...

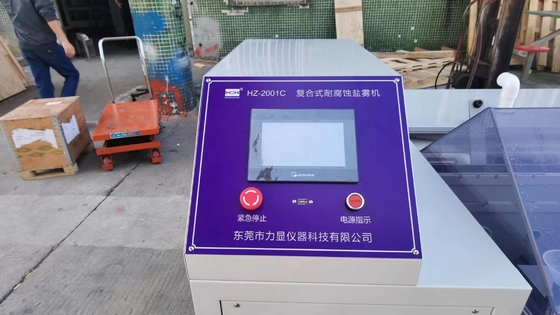

Salt Spray Test Chamber  Controller Interface and Explain
