Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L

Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L
Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L
Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L

Large Image :  Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-2001A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L

Description
Standard: IEC68-2-11 Salt Spray Test Testing Room Capacity: 108L 270L 480L
Inside Size: 1200*800*500*mm (W*D*H*) Air Pressure: 1.00±0.01kgf/cm2
Testing Room Temperature: Salt Test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ Spray Volume: 1.0~2.0ml/80cm2/h (working At Least 16 Hours)
PH: 6.5~7.2 3.0~3.2 Power: AC220V20A
High Light:

270L Temperature Humidity Test Chamber

,

Salt Corrosion Spray Environmental Testing Machine

,

480L Environmental Testing Machine

Salt Corrosion Spray Temperature & Humidity Test Chamber ASTM.B117-97 Standard Capacity 108L,270L,480L

Salt spray test chamber used to test the corrosive resistance of products whose the surface was treated with LED paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc


Salt Spray Test Chamber Material
(A) testing room using PVC polyvinyl chloride plate (from Taiwan), acid-resisting and alkali-resisting, cleaning easier.
(B) cover of testing room using acrylic panels (imported organic glass), the thickness is 5mm.
(C) reagents added bottles attached with water gauge, cleaning easy and not easy to break.
(D) saturated air barrels is made of SUS # 304 stainless steel.
(E) testing room to adopt indexing frame, can be arbitrarily adjust the angle, Surrounded by fog and placed more piece .


Salt Spray Test Chamber Corresponding Standard

1.ASTM.B117-97 salt spray test.

2.JIS H8502 salt spray test.

3.IEC68-2-11 sait spray test.

4.1EC68-2-52 1996 salt spray test.

5.ASTM B117 Standard Practice for Operating Sat Spray(Fog)Apparatus

6.SAE J2334 Laboratory Cylic Corrosion Test

7.IEC 60945-8.12 Maritime navigation and radiocommunication equipment and systems -General
requirements -Methods of testing and required test results

Salt Spray Test Chamber  According to CNS JIS ASTM GB2423.19 specifications, can be set constant temperature to control
(A) Salt spray test: NSS, ACSS
1. testing room : 35 ℃ ± 1 ℃
2 saturated air barrels : 47 ℃ ± 1 ℃
(B) anti-corrosion test: CASS (copper acetate)
1.testing room: 50 ℃ ± 1 ℃
2. saturated air barrels: 63 ℃ ± 1 ℃


Salt Spray Test Chamber  Technical Parameters

Model HZ-2001A-108L HZ-2001A-270L HZ-2001A-480L
Inside box size(cm) 60x45x40 90x60x50 120x80x50
Outside box size(cm) 107x60x118 141x88x128 190x110x140
Testing room temperature Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
Pressure barrel temperature Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
Brine temperature 35℃±1℃ 50℃±1℃
Testing room Capacity 108L 270L 480L
Brine tank capacity 15L 25L 40L
Salt concentration The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)
Air pressure 1.00±0.01kgf/cm2
Spray volume 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)
Testing room relative humidity 85% above
PH 6.5~7.2 3.0~3.2
Spray form Programmable spray (Including continuous and intermittent spray)
power AC220V1Φ10A AC220V1Φ15A AC220V1Φ20A

programmable salt spray testing machine 120L HZ-20...
Salt Spray Test Chamber  Controller Interface and Explain

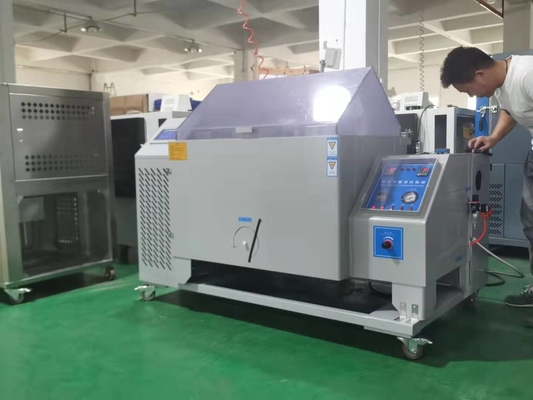

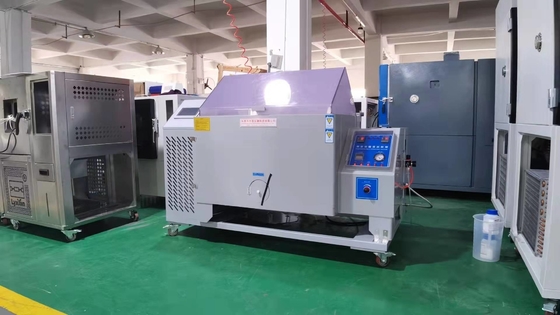

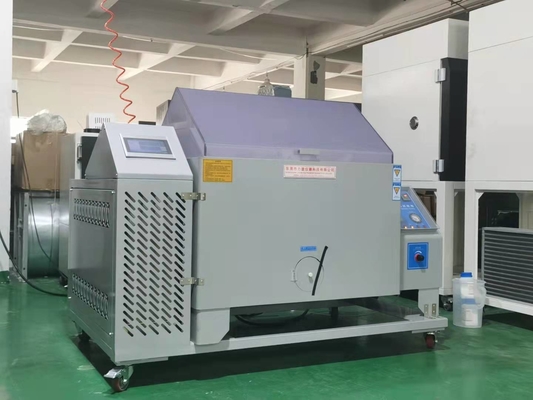

Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L 0
Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L 1



Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L 2



Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L 3



Salt Corrosion Spray Temperature Humidity Test Chamber ASTM B117-97 108L 270L 480L 4
