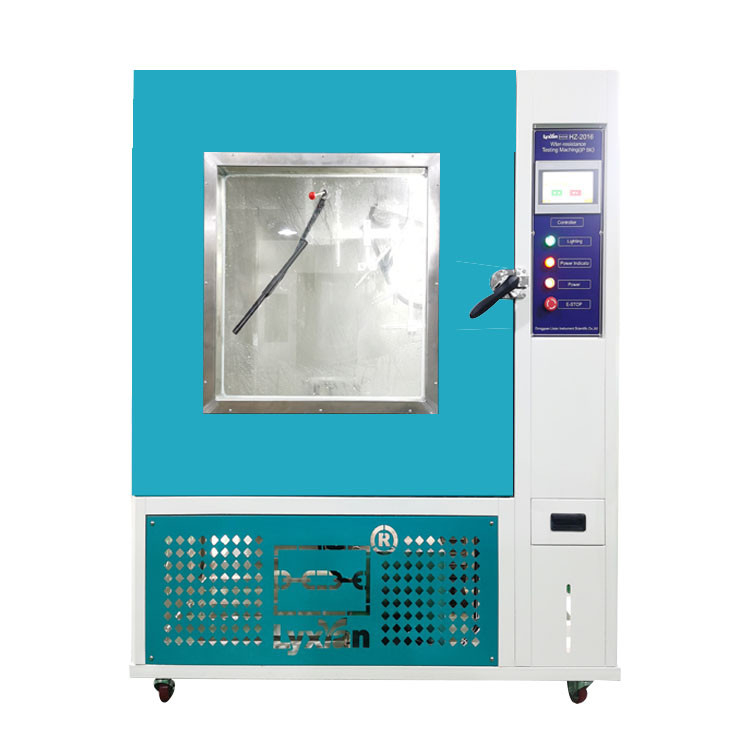

Equipment summary:
Rain Spraying Test Chamber used to test anti-rain and waterproof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC60259 IP code specifications that need an additional discussion.
Rain Spraying Test Chamber Main functions:
1 the hydraulic flow design type, about 10cm/h commonly, the maximum fall rainfall with the greatest rainfall coming decades 35mm/m. Unique with water device can make rainfall and stabilize the pressure control.
2, RS. Separate control slots, without the operator into change.
3, the machine type B can make the test content from Rt ~ 85 ℃ heat, temperature under test than water temperature high produce a negative pressure, make more accurate test. (MIL - STD).
Rain Spraying Test Chamber Corresponding standard:
JIS D0203, D5500, SAE J585e, CNS 7138,IEC 60259
Rain Spraying Test Chamber Applicable industries:
Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control
Rain Spraying Test Chamber Technical parameter:
| Model |
HZ-2016A IP1-4 |
HZ-2016B IP1~4 |
| Testing temperature |
Room temperature |
Rt~85°C |
| Inner size |
100(W)*100(D)*100(H) cm or custom |
| Spray volume |
0.07(1±5%)L/min (Every hole in average) |

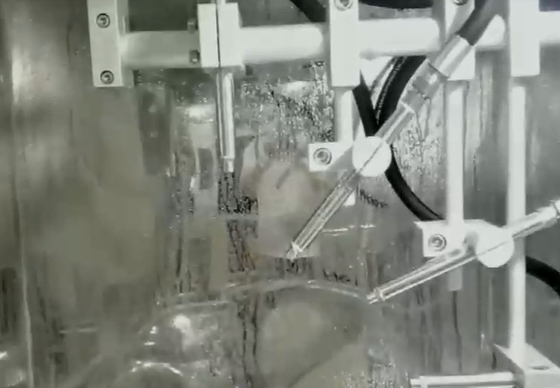

| Spray nozzle |
Spherical laser drilling,direction: 360°adjustable, make injection of rain fan, to spray the specimen |
| Hydraulic aperture |
φ0.8mm |
| Water spray hole spacing |
50mm |
| Number of blowhole |
16 or 25 |
| Water ring radius |
R400mm |
| Spray nozzle diameter |
φ15mm stainless steel |
| Pendulum Swing tube range |
about±180°(can adjustable to ±45°±60°±90°) |
| Swing speed |
60°/s adjustable |
| Spray pressure |
0～400Kpa adjustable |

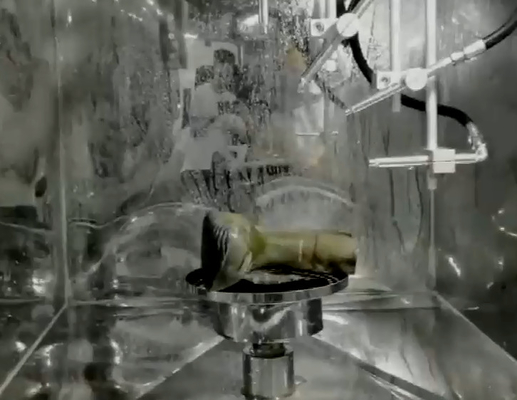

| Specimen rotative speed |
4~17rpm (Adjustable) |
| weight |
350kgs |
| Power |
1 phase,220V,5KW |
Water-resistance testing machine HZ-2016.pdf
