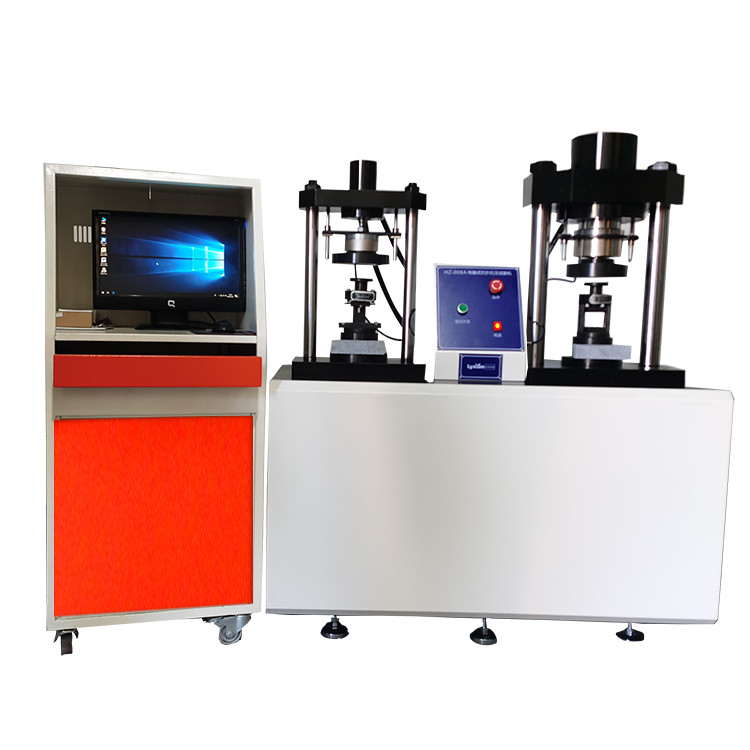

Concrete Compressive And Flexural Strength Tester 300KN-2000KN Piston Diameter 130mm

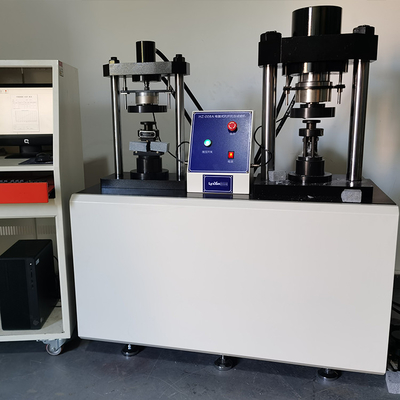

Concrete Compressive And Flexural Strength Tester 300KN-2000KN Piston Diameter 130mm

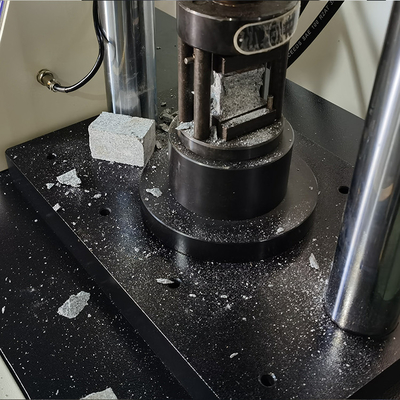

Concrete Compressive And Flexural Strength Tester 300KN-2000KN Piston Diameter 130mm
Concrete Compressive And Flexural Strength Tester 300KN-2000KN Piston Diameter 130mm Concrete Compressive And Flexural Strength Tester 300KN-2000KN Piston Diameter 130mm Concrete Compressive And Flexural Strength Tester 300KN-2000KN Piston Diameter 130mm Concrete Compressive And Flexural Strength Tester 300KN-2000KN Piston Diameter 130mm

Large Image :  Concrete Compressive And Flexural Strength Tester 300KN-2000KN Piston Diameter 130mm

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Standard safety export woodcase
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200sets/ month

Concrete Compressive And Flexural Strength Tester 300KN-2000KN Piston Diameter 130mm

Description
Model: HZ-008 Max Load: 300-2000KN
Test Force Measuring Range KN: 4%-100%FS Test Force Resolution: 0.01kN
Hydraulic Pump Rated Pressure: 25MPa Loading Rate: 0.3KN/S~10KN/S
Error Loading Speed: ±5% Pump Rated Flow: 1.52L/min
Upper And Lower Bearing Plate Size: φ155mm Maximum Distance Between The Upper And Lower Plate: 260mm
Piston Diameter: φ130mm
High Light:

CE Flexural Strength Tester

,

2000KN Flexural Strength Tester

,

130mm Universal Testing Machine

Concrete Compressive And Flexural Strength Tester 300 KN To 2000 KN Piston Diameter Φ130mm High-Precision Sensors

Compressive Test Machine Introduction:

Concrete Compressive and Flexural Strength Tester is mainly used for brick, stone, cement, and other building materials, compressive strength test.



Hydraulic System:

The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder.Computer control signals to the servo valve,Control direction and opening of the servo valve ,to control the flow into the cylinder,achieve constant test force control.



Control system:

The Concrete Compressive and Flexural Strength Test system including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability.Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.



Safety protection device:

When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.



Main performance technical specifications:

Max load KN 300-2000kN
Test force measuring range KN 4%-100%FS
Test Force showed the relative error ≤indicating value±1%
Test Force Resolution 0.01kN
Hydraulic pump rated pressure 25MPa
Loading rate 0.3KN/S~10KN/S
Error loading speed ±5%
Pump rated flow 1.52L/min
Upper and lower bearing plate size φ155mm
Maximum distance between the upper and lower plate 260mm
Piston diameter φ130mm
Piston stroke 60mm
Motor Power 3 phase 0.75 kW
Outside dimension mm 870×450×1400mm
Weight 450Kg
