Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S

Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S
Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S
Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S

Large Image :  Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-1005A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S

Description
MODE;: HZ-1005A Capacity: 1KN, 2KN, 5KN Option
Displacement Resolution: 0.001mm Maximum Load: 5KN
Standard:: ASTM D1445, ASTM D2290 Data Sampling Frequency: 200times/sec
Power: Electronic Usage: Universal Testing Machine,Tensile Testing Machine
High Light:

200Times/S Tensile Testing Machine

,

Fastener Tensile Testing Machine

,

Micro Computer Manual Tensile Tester

Shoes And Fastener Tensile Testing Machine Manual Tensile Tester Micro-Computer 5kn Capacity 200Times/S Antirust

Tensile Testing Machine Equipment summary:

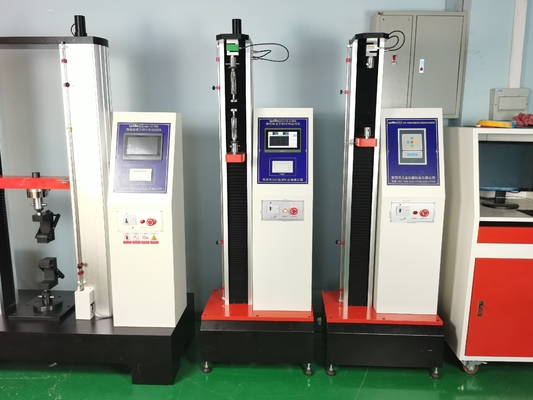

Tensile Strength Testing Machine HZ-1005A is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 5KN.


Tensile Testing Machine Main functions:
Tensile Strength Testing Machine HZ-1005A can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality.


Tensile Testing Machine Corresponding standard:

HG/T 2580, JC/T 777, QB/T 2171, HG/T 2538, CNS 11888, JIS K6854, PSTC-7, ISO 37, AS 1180.2, BS EN 1979, BS EN ISO 1421, BS EN ISO 1798, BS EN ISO 9163, DIN EN ISO 1798, GOST 18299, DIN 53357, ISO 2285, ISO 34-1, ISO 34-2, BS 903, BS 5131, DIN EN 12803, DIN EN 12995, DIN53507-A, DIN53339, ASTM D3574, ASTM D6644, ASTM D5035, ASTM D2061, ASTM D1445, ASTM D2290, ASTM D412, ASTM D3759/D3759M...

Universal Testing Machine Technical parameters:

Model

HZ-1005A Tensile Strength Testing Machine

Capacity

1KN, 2KN, 5KN option

Accuracy of load measurement

the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)

Units

Kg, Lb, N, Ton (can be exchanged)

Resolution

1 / 50000

Displacement resolution

0.001mm

Power system

AC motor, deceleration device (Italy brand)

Control system

testing speed 50~300 mm/min with step less speed and 5 fixed- speed (50, 100, 200, 250, 300) or the needs of customer


Universal Testing Machine has function of printing.
Can store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break.
Display: HZ-2000 dark blue LCD display, membrane touch keys, with the following functions.
①. Single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kg, Lb, N;
③. Function of free to take point;
④. With multi-calibration function;
⑤. Auto printing function;

Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S 0Shoes And Fastener Tensile Testing Machine Manual Micro Computer 5kn 200Times/S 1
