Building Material Fire Tester Description:

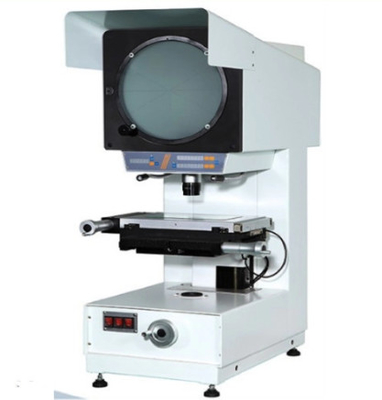

1. Vertical profile projector is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.
2. Rotation 360 optical measuring vertical profile projector can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
3. Optical measuring vertical profile projector widely used in the trade of mechanism, meter, electricity, light industry, college, research institute and measurement-inspecting department.
4. Measurement data can output and connect printer and computer.
Fire Tester Product Features:
• Top quality profile projector highly versatile and easy to operate;
• Large travel range 200mm x 100mm as standard;
• Linear scale stage with 0.0005mm resolution;
• Fine ground glass screen for clear image;
• Built-in profile and surface illumination;
• 10x, 20x, 50x, 100x projection lenses available.
|
Model
|
HZ-Building Material Fire Tester-3 |
|
Table
|
The metal table’s size
|
450 x280 mm
|
|
The glass table’s size
|
306x196mm
|
|
X-axis travel
|
200mm
|
|
Y-axis travel
|
100mm
|
|
Z-axis travel
|
90 (for focus)
|
|
Measuring accuracy
|
3+L/200 um
|
|
Resolution (X-axis, Y-axis): 0.001 mm
|
|
Projector screen
|
Screen size (mm): Ø 312 Used range>Ø 300(with the meter line)
|
|
Screen rotary range: 0°~360°
|
|
Resolution (X-axis, Y-axis): 1´ or 0.01°
|
|
Lens
|
Magnification: 10X option 20X option 50X option 100X option
|
|
Object view (mm): Ø30 Ø15 Ø6 Ø3
|
|
Working distance (mm): 77.7 44.3 38.4 25.3
|
|
Max. work piece height: 90mm 90mm 90mm 90mm
|
|
Data Processing System
|
DP-100multi-function data processing system, appearing in English, can be used to gather the data and measure the point, line, circle, angle and distance.
|
|
Illumination
|
The illumination of transmission and reflection: 24V/150W-halogen lamp.
|
|
Power
|
110V/220V(AC), 50/60HZ, Total power=400W
|
|
Cold
|
Forced air cooling
|
|
Dimensions
|
770*810*1120mm
|
|
Weight
|
170kg
|
Fire Tester Specification:
|
1. Screen
|
2. screen fast move handle
|
3. DP-400 Digital Readout
|
|
4. Rotary fine tune knob
|
5. projector frame
|
6. main body of transmission illumination
|
|
7. X axis knob
|
8. lifting knob
|
9. footing
|
|
10. carry knob
|
11. dust cover
|
12. Y axis
|
|
13. Base
|
14. Vertical work table
|
15. hinge group
|
|
16. worktable
|
17. lower stage table
|
18. reflection illumination
|
|
19. objective
|
20. upper stage table
|
21. null position
|
|
22. lock screw
|
23. elastic platen
|
|
Fire Tester Characteristics:
1) Solid framework, large LCD touch screen and advanced QM2.0 software;
2) High quality optics for crisp and clear images;
3) Adjustable LED surface and contour illumination;
4) High resolution industrial CCD camera;
5) 6.5X Detente zoom lens changeable within the range of 30-190x magnification;
6) Easy to operate user interface;
7) Extended function of printing, saving and exporting data;
8) Excel, word or txt multi-format report output, and DXF input and output;
9) Non-contact optical height measurement;
10) Automatic edge-detecting function;
11) Make Save and input the program;
12) Map photo and measurement;
13) Dimension label function;
