Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-1001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Standard safety export woodcase
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200sets/ month

GB/T16491-1996 Universal Testing Machine Computer Servo Type Display Test Stand With 0.5 Grade Accuracy 20 Ton

Description
Max Load: 20ton Product Name:: Computer Servo-typeUniversal TestingMachine
Resolution: 1/250000 Load Cell: Basic Configuration:one Piece( Max Load)
Range Of Testing Speed: 0.001~500mm/min Accuracy Of Displacement Measurement: Tolerance: ±0.5%/ Tolerance: ±0.2%
Test Standard: ASTM D412, ASTM D638, ISO37 Etc Accuracy: 0.5grade
Fixture: A Set Of Tensile Fixture Power Supply: 220V, 50HZ
Model: HZ-1001
High Light:

Universal Testing Machine Computer Servo Type

,

20 Ton Load Universal Testing Machine

Universal Testing Machine GB/T16491-1996 Computer Servo-Type Display Test Stand With 0.5 Grade Accuracy 20ton

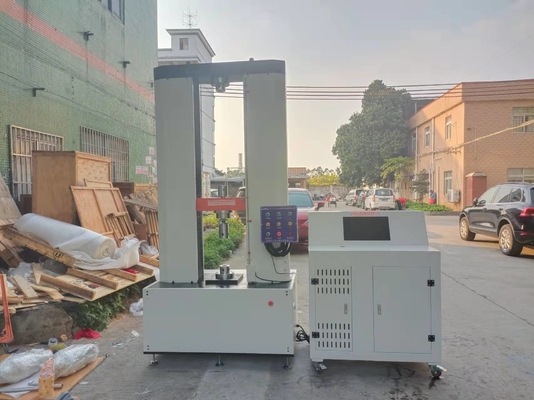

HZ-1001 Computer Servo-type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement.



Universal Testing Machine This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 20ton.


Specification
Model Number
HZ-1001
Power
Electronic
Product name
Computer Servo-typeUniversal TestingMachine
Maximum load
20ton option
Accurate grade
1 grade /0.5 grade
Measuring accuracy
Display the value ±1%/Display the value±0.5%
Range of testing speed
0.001~500mm/min
Accuracy of displacement measurement
Tolerance: ±0.5%/ tolerance: ±0.2%
Testing platform moving device
Fast /slow two speeds to control,can jog
Overload protection
Overload 10%,automatic protection
Fixture
A set of tensile fixture
Power supply
220V, 50HZ
GB/T16491-1996 Universal Testing Machine Computer Servo Type Display Test Stand With 0.5 Grade Accuracy 20 Ton 0
GB/T16491-1996 Universal Testing Machine Computer Servo Type Display Test Stand With 0.5 Grade Accuracy 20 Ton 1
GB/T16491-1996 Universal Testing Machine Computer Servo Type Display Test Stand With 0.5 Grade Accuracy 20 Ton 2

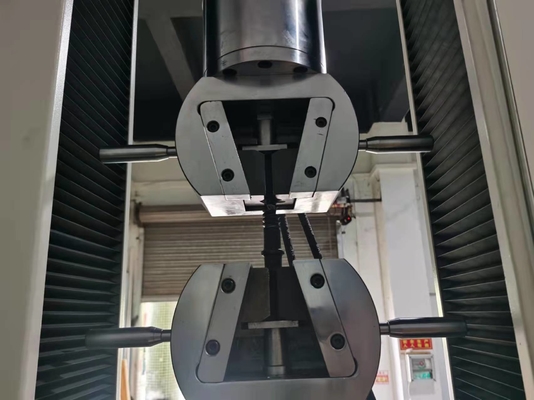

UTM Fixture

GB/T16491-1996 Universal Testing Machine Computer Servo Type Display Test Stand With 0.5 Grade Accuracy 20 Ton 3
Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23year.
