Melting Behavior Building Material Fire Tester For Vehicle Interior Heat Radiation

Melting Behavior Building Material Fire Tester For Vehicle Interior Heat Radiation
Melting Behavior Building Material Fire Tester For Vehicle Interior Heat Radiation Melting Behavior Building Material Fire Tester For Vehicle Interior Heat Radiation Melting Behavior Building Material Fire Tester For Vehicle Interior Heat Radiation Melting Behavior Building Material Fire Tester For Vehicle Interior Heat Radiation

Large Image :  Melting Behavior Building Material Fire Tester For Vehicle Interior Heat Radiation

Product Details:
Place of Origin: CHINA
Brand Name: lixian
Certification: CE
Model Number: HZ-Building Material Fire Tester-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wooden
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500hundred sets per month

Melting Behavior Building Material Fire Tester For Vehicle Interior Heat Radiation

Description
PRODUCT NAME: Building Material Fire Tester MATERIAL: Stainless Steel
POWER:: AC 220V, 50 / 60hz, 15A HIGH LIGHT:: Ignitability Test, Microscale Combustion Calorimeter
USAGE:: Material Melting Behavior Test RADIATOR: 500W
WEIGHT: 35kg Standard:: ECE R118 Annex 7-TEST
High Light:

Melting Behavior Building Material Fire Tester

,

500W Building Material Fire Tester

,

AC 220V Stainless Fire Tester

ECE R118 Annex 7 Vehicle Interior Heat Radiation Test Machine For Melting Behavior

Vehicle Interior Heat Radiation Test Machine Description:



Test to determine the melting behavior of materials for thermal insulation material of automotive interior material, determine the flame resistance for non-metallic material of automotive interior.





Vehicle Interior Heat Radiation Test Machine Standard:



ECE R118 Annex 7-TEST TO DETERMINE THE MELTING BEHAVIOUR OF MATERIALS,

NF P92-505 Dripping test with electrical radiator, used for melting materials





Vehicle Interior Heat Radiation Test MachinePrinciple:

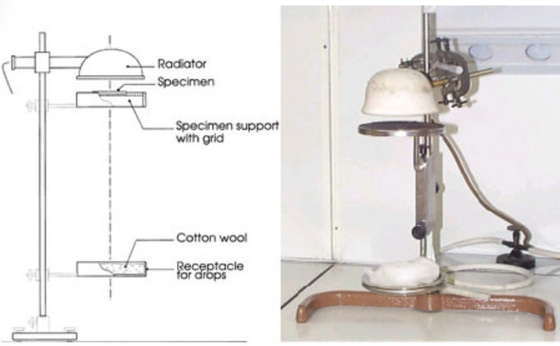

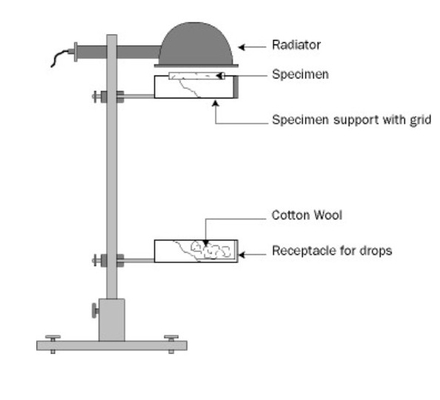

A sample is placed in a horizontal position and is exposed to an electric radiator. A receptacle is positioned under the specimen to collect the resultant drops. Some cotton wool is put in this receptacle in order to verify if any drop is flaming.



The apparatus shall consist of :

(a) an electric radiator; with a useful output of 500 W. The radiating surface made of a transparent quartz plate with a diameter of 100 + 5 mm.

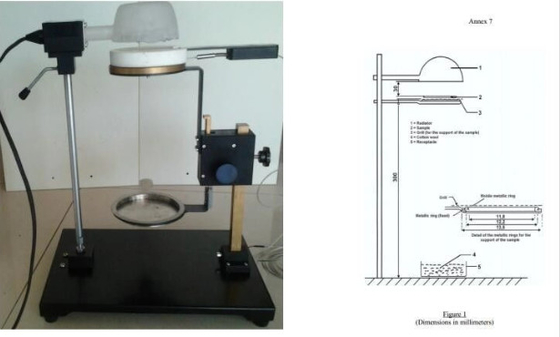

(b) a support for the sample with grill; the support for the samples shall be a metallic ring (figure 1). On top of this support a grill, made of stainless steel-wire, is placed with the following dimensions:

(1) interior diameter: 118 mm,

(2) dimension of the holes: 2.10 mm square,

(3) diameter of the steel-wire: 0.70 mm.

(c) a receptacle (for resultant drops); including the cotton wool, is placed beneath the grill of the support at a distance of 300 mm.

(d) a support (for the apparatus),



Melting Behavior Building Material Fire Tester For Vehicle Interior Heat Radiation 0



Melting Behavior Building Material Fire Tester For Vehicle Interior Heat Radiation 1
