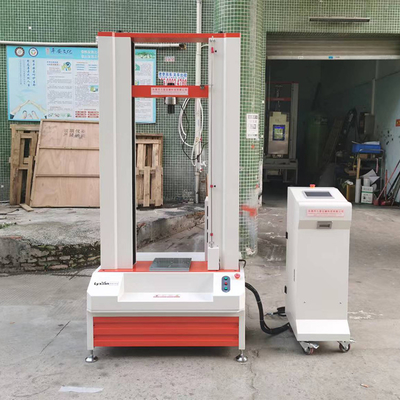

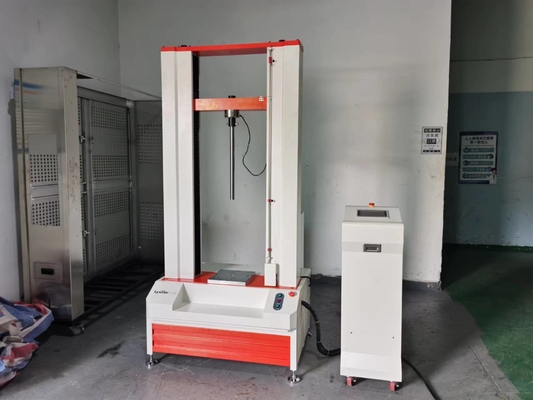

20kn Universal Tensile Testing Machine Accuracy 0.5 For Metal Sheet Welding Separation Force

Large Image : 20kn Universal Tensile Testing Machine Accuracy 0.5 For Metal Sheet Welding Separation Force

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-1003A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

20kn Universal Tensile Testing Machine Accuracy 0.5 For Metal Sheet Welding Separation Force

Description

Model:	HZ-1003A	Max Load:	20KN
Effective Force Range:	0.4％～100％ (0.5grade)	Effective Test Width:	390mm (can Be Enlarge As Customer Request)
Resolution:	1/200000	Power:	Electronic
Load Cell:	Basic Configuration：one Piece( Max Load)	Application:	Steel
Accuracy:	0.5 Grade	Controls:	Computerized
Data Acquisition:	Available	Data Storage:	Available
Display:	LCD/LED	Grips:	Manual/Automatic
Load Cell:	Available	Software:	Included
High Light:	Universal 20kn Tensile Testing Machine , Universal Testing Machine For Metal Sheet , HZ-1003A Universal Testing Machine

Universal Testing Machine Accuracy 0.5 Grade 20kn Tensile Testing Machine For Metal Sheet Welding Separation Force Test

Universal Testing Machine (UTM) HZ-1003A is used to test both the tensile and compressive strength of materials. Universal Testing Machines are named as such because they can perform varieties of tests on an equally diverse range of materials, components, and structures.

Universal Testing Machine Equipment summary:

The machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive, computer and color inkjet printer. it is taken account of modern industrial design and ergonomics in modeling and coating. It can be tested all the materials in stretch, compression, bending, shear, embedded relay, peeling, tearing, crack, etc, such as rubber, plastics, leather, metal, nylon wire, fabric, etc.

Universal Testing Machine Technical parameters:

Model	HZ-1003A Universal Testing Machine
Max load	20KN
Accuracy	0.5grade
Effective force range	0.4％～100％ (0.5grade)
Load cell	Enlarge configuration:can be increased extra laod cell
Effective test width	390mm (can be enlarge as customer request)
Effective Tensile stroke	800mm (can be enlarge as client request)
Test speed	0.01～500mm/min
accuracy of displacement	≤0.5％
Power supply	220V, 50HZ
Power	0.4KW
Weight	About 300 Kg

Universal Testing Machine Specifications:

1.Computer Servo Type Universal Testing Machine
A. High-precision sensor 1ton from the U.S.A. Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz
C. Power System: Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw
D. Control System: it is more precise using Pulse Command control modem, the range in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjusted to fast and slow by the control board. it is automatically saved after testing.
E. Data transmission: RS232 Transfer
F. Display: Windows XP test software.
G. easy to control five-speed and calibration system.
H. test software can precision control in position, speed, rate of load force and rate of stress, satisfy the different requirements of test.
I. Test space: Testing width is about 400 mm (standard), moving space of active iron 1000mm (excluding fixtures)
J. displacement: coder 2500 P / R, increase four-time accuracy. adopt Japanese Lejing coder that has strong anti-jamming capability, displacement resolution 0.001mm.
Small deformation: Metal extensometers, parsing 0.001mm.
K. Safe equipment: the system would shut down if overload or over-trip

2. items can be tested in the Computer Servo Type Universal Testing Machine
Common items: ( display data and calculation )
● tensile stress ● tensile strength
● tensile strength ● rate of elongation at break
● fixed stress ● rate of stress at break
● stress strength ● tear strength
● the value of force at any point ●rate of elongation at any point
● pull-out strength ● force of adhesion and value of peak

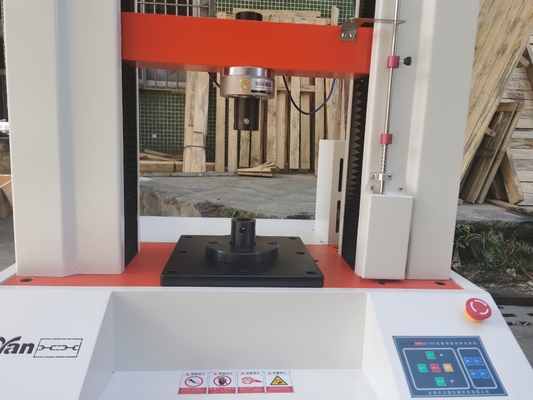

20kn Universal Tensile Testing Machine Accuracy 0.5 For Metal Sheet Welding Separation Force 0

UTM Fixture

Universal Testing Machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 22 year.

.Computer Type Universal Testing Machine HZ-1003A.p...
