Electric Air Ventilation Aging Testing Chamber With ASTM D5423-9R2005 Air Ventilation Regulation

Electric Air Ventilation Aging Testing Chamber With ASTM D5423-9R2005 Air Ventilation Regulation
Electric Air Ventilation Aging Testing Chamber With ASTM D5423-9R2005 Air Ventilation Regulation Electric Air Ventilation Aging Testing Chamber With ASTM D5423-9R2005 Air Ventilation Regulation

Large Image :  Electric Air Ventilation Aging Testing Chamber With ASTM D5423-9R2005 Air Ventilation Regulation

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-2010
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Electric Air Ventilation Aging Testing Chamber With ASTM D5423-9R2005 Air Ventilation Regulation

Description
Temprature Range: RT~200 Degree Testing Space: About 45*50*45cm
Timer : 0~10 Or 10~200 Time/H Display: LCD
Ventilation Adjusted: Auto-tuning Type Safety Protection: Safety Protection
Ventilation System: Using Voltage Regulator To Change The Volume Of Air Built-in Circulating Air System: Ensure The Temperature Uniformly 1%.
Mateiral: SUS# 304 Stainless Steel Control System: Intelligent Control System
Data Analysis: Data Analysis
High Light:

Electric Air Ventilation Aging Testing Chamber

,

ASTM Aging Testing Chamber

,

Aging 45*50*45cm Testing Chamber

Electric Air Ventilation Aging Testing Chamber With ASTM D5423-9R2005 Standard & Air Ventilation Regulation

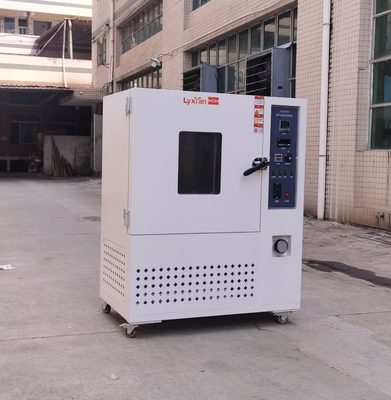

Electric Air Ventilation aging testing chamber Equipment summary:

The Electric Air Ventilation aging testing chamber is used to test the material characteristic of wire type, skin type, plastic, rubber, cloth. Equiped with a special ventilation regulator to maintain the fresh air inside

when heating. This testing machine is designed with sophisticated air-displacement adjustment device and a

digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate.

Horizontal circulatory air supply system and both sides of airflow regulator can ensure the internal temperature

uniformity and stability.



Electric Air Ventilation aging testing chamber Corresponding standard:

Accord with ASTM D5423-9R2005-Type ovenand ASTMD 5374-93(2005) UL-1581GBVDEJISIEC



Electric Air Ventilation aging testing chamber Applicable industries:

TheElectric Air Ventilation aging testing chamber used to test the material heat-resisting for polymer materials (plastics, plastic) and electrical insulation materials, such as: wire and cable sheathing, heat-shrinkable tubing, rubber or PVC materials.



Electric Air Ventilation aging testing chamber Technical parameters:

Model HZ-2010
Testing space about 45*50*45cm
Temperature RT~200, resolution: 0.1 degree,accuracy: 0.5 degree.
Rotation 0~10 or 10~200 time/H
Ventilation adjusted Auto-tuning type
Ventilation system Using voltage regulator to change the volume of air
Built-in circulating air system ensure the temperature uniformly 1%.
Mateiral SUS# 304 stainless steel
Protector over-temperature breaker
sensor high-accuray PT100 thermocouple. temperature fluctuation 0.5%
inside size 50*40 * 50 cm(L*W*H)
outside size 120* 65 *134 cm.(L*D*H)
insolation 80mm rock wool.
Count the volume of air formula for Japan JIS7212



Electric Air Ventilation aging testing chamber Main feature:

The Electric Air Ventilation aging testing chamber used to study the rubber that is heated under the rotary mode in a fixed period. Tested 1 day at 70°c in it ,theoretically equivalent to 6 months exposed in the outside atmosphere. The oven is equipped with motor-driven rotary disk,hot-air circulation system that ensure uniform distribution of temperature. Reference to ASTM, JIS, GB and other testing specifications.

Electric Air Ventilation Aging Testing Chamber With ASTM D5423-9R2005 Air Ventilation Regulation 0

Electric Air Ventilation Aging Testing Chamber With ASTM D5423-9R2005 Air Ventilation Regulation 1

New Ventilation-type aging testing machine HZ-2010...
