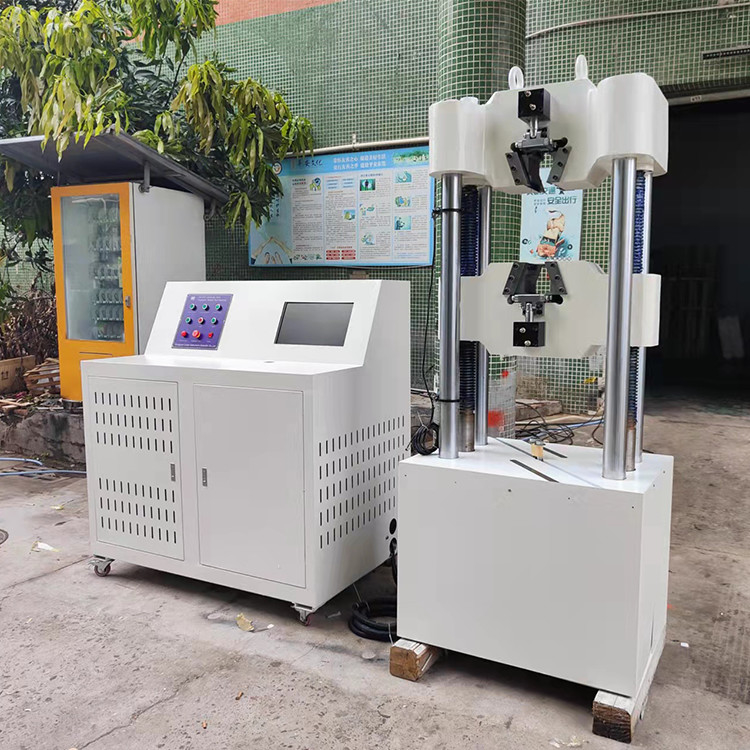

Hydraulic Steel Tensile Test Machine Load 2000kN Piston 130mm With Computer Windows Operation

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

Hydraulic Steel Tensile Test Machine Load 2000kN Piston 130mm With Computer Windows Operation

Hydraulic Steel Tensile Test Machine Load 2000kN Piston 130mm With Computer Windows Operation
Hydraulic Steel Tensile Test Machine Load 2000kN Piston 130mm With Computer Windows Operation
Hydraulic Steel Tensile Test Machine Load 2000kN Piston 130mm With Computer Windows Operation Hydraulic Steel Tensile Test Machine Load 2000kN Piston 130mm With Computer Windows Operation Hydraulic Steel Tensile Test Machine Load 2000kN Piston 130mm With Computer Windows Operation

Large Image :  Hydraulic Steel Tensile Test Machine Load 2000kN Piston 130mm With Computer Windows Operation

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-003
Payment & Shipping Terms:
Price: negotiate
Packaging Details: Standard safety export woodcase
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200sets/ month

Hydraulic Steel Tensile Test Machine Load 2000kN Piston 130mm With Computer Windows Operation

Description
Resolution: 0.01kN Loading Rate: 0.3 KN/S~10 KN/ S
Maximum Distance Between The Upper And Lower Plate: 260 Mm Piston Diameter: φ130mm
Operation: Computer Windows Operation,or PC Software Warranty: 12 Months
Test Force Measuring Range KN: 4% - 100% FS Power: Hydraulic,AC220V 50Hz
Accessories: Printer, Software Control System: Computer Control
Data Acquisition System: High Precision A/D Converter Model: Universal Testing Machine
Power Supply: AC220V/50Hz Software: Windows System
High Light:

Hydraulic Steel Tensile Test Machine

,

2000kN Steel Tensile Test Machine

,

10KN/ S Hydraulic Tensile Test Machine

Hydraulic Steel Tensile Test Machine Capacity Load 2000kN Piston Diameter Φ130mm With Computer Windows Operation



200ton Tensile Test Machine adopt oil cylinder mounted under the host, mainly for metals, non-metallic tensile, compression and bending test.Used in metallurgy, construction, light industry, aviation, aerospace, materials, universities, research institutes and other fields.Test operations and data processing in line with GB228-2002 "metal material tensile test method at room temperature" requirements.



Tensile Test Machine performance technical specifications:

Max load KN 100 300 600 1000 1200 2400
Test force measuring range KN 2%-100%FS
Test Force showed the relative error ≤indicating value±1%
Test Force Resolution 0.01kN
Displacement measurement resolution mm 0.01
Deformation measurement accuracy mm ±0.5%FS
Maximum tensile test space mm 550 650 750 900 1000
Max compression space mm 380 460 700 900
Maximum clamping width of the flat specimen mm 70 75 125 80
Maximum clamping width of the flat specimen(Column number) 2 2/4 4
Shear specimen diameter mm 10



Tensile Test Machine Host:

Computer servo hydraulic universal testing machine adopt oil cylinder under mounted type host, stretching space is at the top of host, compression test space is between the at the work table and the crossbar.



Tensile Test Machine Transmission system:

Down beam go up and down by the use of motor reducer, chain drive mechanism, vice screw drive, to achieve tensile, compression of space to adjust.



Tensile Test Machine Hydraulic System:

The hydraulic oil in the tank through motor drive high-pressure pump into the oil, flows through check, high pressure oil filters, differential pressure valve set, servo valves, into the oil cylinder.Computer control signals to the servo valve, the control and direction of the servo valve opening to control the flow into the cylinder to achieve constant test force, constant displacement control.



Tensile Test Machine Control system:

•Support for tensile, compression, shear, bending and other tests;

•Support open editing test, editorial standards and editorial procedures, and to support export import testing, standards and procedures;

•Support custom test parameters;

•Adopt an open statement in the form of EXCEL, to support user-defined report format;

•Print the query testing results flexibility, support for printing multiple samples, custom sorting print projects;

•Procedure supports hierarchical management levels (administrator, tester) user management rights;



Tensile Test Machine Safety protection device:

a)When the test force more than 3% of the Max. test force, the overload protection, oil pump motor shut down.

b)When the piston rises to the upper limit position, stroke protection, pump motor shut down.



Hydraulic Steel Tensile Test Machine Load 2000kN Piston 130mm With Computer Windows Operation 0

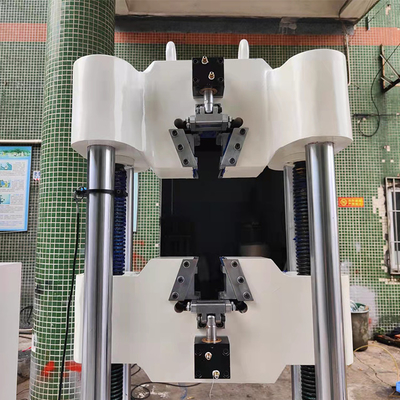

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 21 year.
