Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-2004A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50sets per month

Frequency Conversion Temperature And Humidity Test Cabinet Environmental Testing Machine

Description
Model: HZ-2004 Temperature Range: -70°C ~ +100°C (150°C) (A:+25°C B:0°C C:-20°C D:-40°C E:-50°C F:-60°C G:-70°C)
Humidity Range: 20%~98%R.H. (10%-98%R.H/5%~98%R.H Is The Specific Codition)  Accuracy/ uniformly: ±0.1°C; ±0.1%R.H./ ±1.0°C; ±3.0%R.H.
Maintenance: Easy Maintenance Operation Interface: User-friendly Interface
 Inside material: Stainless Steel SUS 304#  Heating / cooling time: About 4.0°C/min; About 1.0°C/min (5~10°C/mm Is The Specific Condition)
Standard: GB ASTM AISI DIN BS,DIN,BS,ASTM,ISO Color: Customer Required
Control System: Intelligent Control System Data Analysis: Real-time Analysis
Product Name: Environmental Testing Machine Safety Protection: High Safety Protection
High Light:

Frequency Conversion Temperature Humidity Test Cabinet

,

Stainless steel 304 Environmental Testing Machine

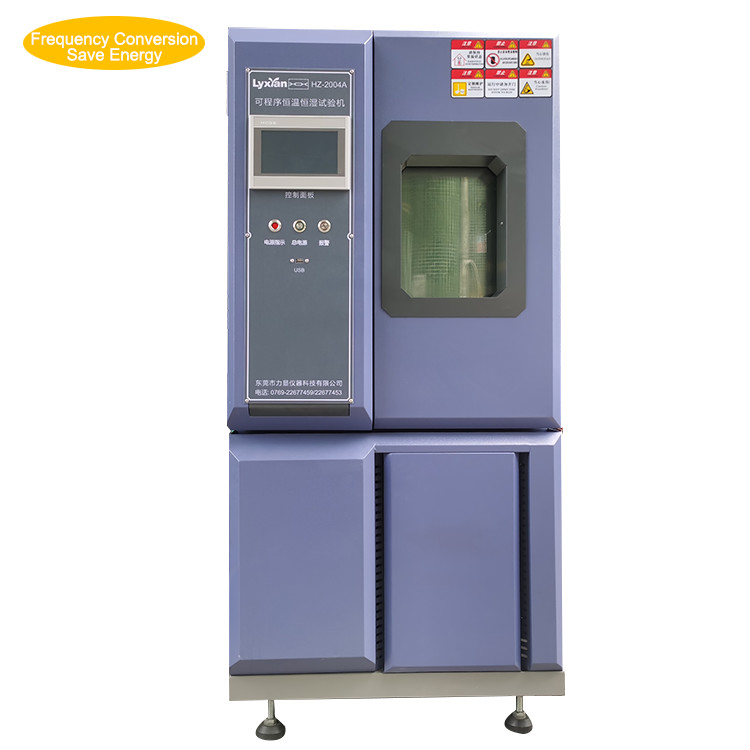

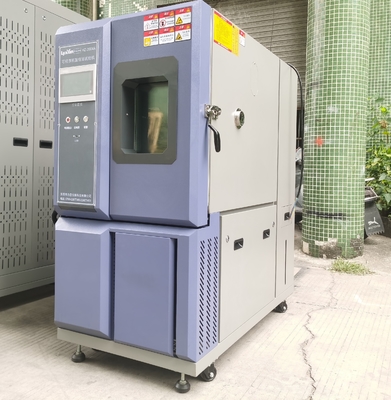

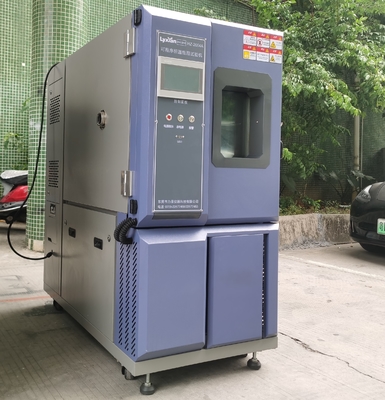

Frequency Conversion Temperature And Humidity Test Cabinet Environmental Testing Machine IEC68-2-03 -70C-+100C HZ-2004A

Temperature And Humidity Test Chamber Equipment summary:The machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.



Temperature And Humidity Test Chamber technical parameter

Model (HZ-2004A)80-1000
Temperature range -70 degree ~ +100(150) degree
Humidity range 20%~98%R.H.
Accuracy/ uniformly ±0.1 degree ±0.1%R.H./ ±1.0 degree ±3.0%R.H.
Accuracy / volatility ±1.0 degree ±2.0%R.H. / ±0.5 degree ±2.0%R.H.
Heating / cooling time

About 4.0/min(heat),about 1.0/min(cool) ( 5~10/mm is

the specific condition )

Inside material Stainless steel SUS 304 #
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system

Air-cooled/ single-stage compressor(-20 degree) , wind,

water cooled/two-stage compressor(-40~-70 degree)

Protection

compressor overload switch, high and low pressure protection switch,

over-humidity-temperature protection switches, fuses, warning system

Accessories

recorder(purchase), view window, 50mm testing hole, PL lamp,

clapboard, Dry and wet gauze ball



Temperature And Humidity Test Chamber Applicable industries:

Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.



1. International Electrotechnical Commission Standard:

IEC68-2-03_test method Ca_Steady damp-heat

IEC68-2-01_test method A_cold

IEC68-2-02_test method B_dry heat

2. USA Semiconductor Industry Standard:

JESD22-A101-B-2004 Constant temperature and humidity test

JESD22-A103-C-2004 High Temperature Storage Test

JESD22-A119-2004 Low Temperature Storage Test



3. Japanese Industrial Standard:

JIS C60068-2-3-1987 test method Ca: Steady damp-heat

JIS C60068-2-2-1995 test method B:dry heat

JIS C60068-2-1-1995 test method A:low temperature
