UTM 2ton Universal Terminal Tensile Test Machine Meeting GB/T16491-1996

Large Image : UTM 2ton Universal Terminal Tensile Test Machine Meeting GB/T16491-1996

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-1010A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

UTM 2ton Universal Terminal Tensile Test Machine Meeting GB/T16491-1996

Description

Max Load:	2ton	Accuracy:	0.5grade
Effective Force Range:	0.4％～100％ (0.5grade)	Effective Test Width:	390mm (can Be Enlarge As Customer Request)
Resolution:	1/200000	Power:	400W
Machine Size:	12005301800mm(length * Width * Height)	Warranty:	1 Year
Model:	HZ-1010A	Application:	Terminal
Highlight:	UTM 2ton Tensile Test Machine , Terminal Tensile Test Machine , 12005301800 mm Universal Test Machine

Universal Testing Machine Terminal Tensile Test UTM 2ton Capacity Meeting GB/T16491-1996 Standard

HZ-1010A Touch Screen Controlled Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2ton.
Universal Testing Machine corresponding standard :GB/T16491-1996

Specification

Brand Name	lixian
Model Number	HZ-1010A Universal Testing Machine
Power	Electronic
Certification	CE/ASTM/ISO/ROSH
Load cell	5KN,1ton,2ton, option.(from U.S.A.)
Accuracy of load measurement	the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
Displacement	400,500,600mm
Data sampling frequency	200 times/sec
Power supply	AC 220V single-phase
Displacement resolution	0.001 mm
Resolution	1/50000
Powre	400W
Machine size	12005301800mm(length * width * height)

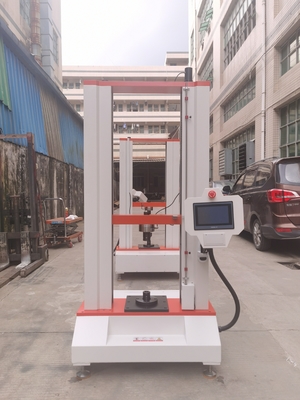

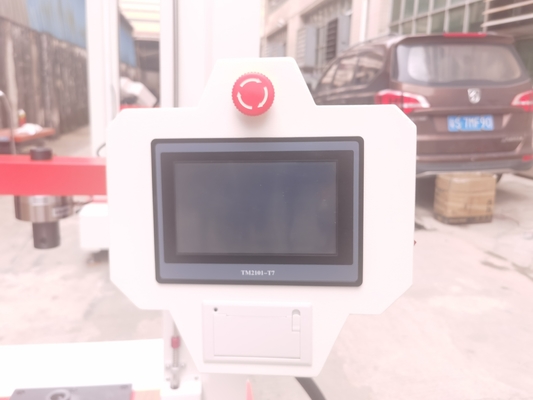

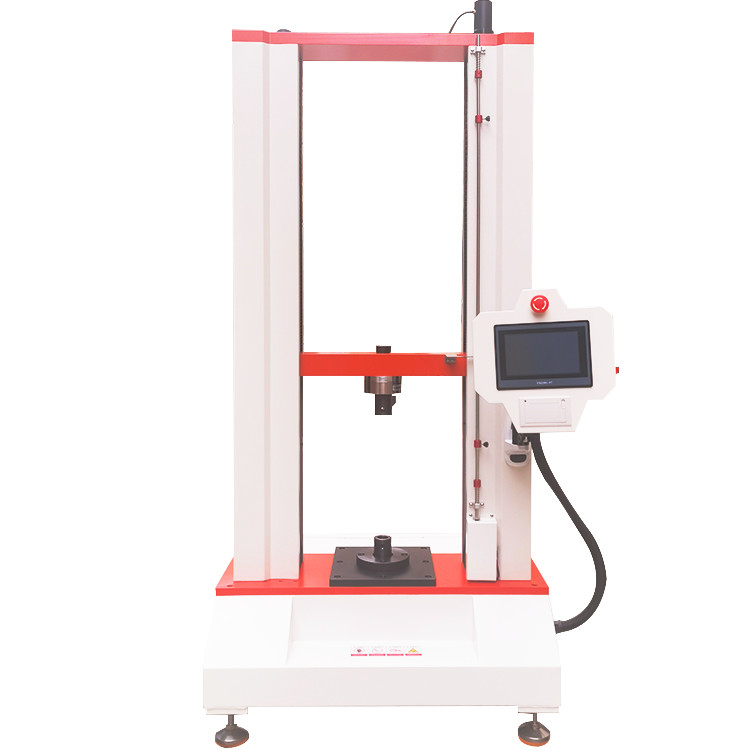

UTM 2ton Universal Terminal Tensile Test Machine Meeting GB/T16491-1996 0

UTM 2ton Universal Terminal Tensile Test Machine Meeting GB/T16491-1996 1

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23year.

.Touch Screen Controlled Universal Testing Machine ...
