0.5grade Universal Testing Machine Precision Meeting ISO 7886-1 For Piston Test

Large Image : 0.5grade Universal Testing Machine Precision Meeting ISO 7886-1 For Piston Test

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-1003A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

0.5grade Universal Testing Machine Precision Meeting ISO 7886-1 For Piston Test

Description

Application:	Piston,Steel,fiber,fabric,universal Tester	Effective Force Range:	0.4％～100％ (0.5grade)
Control System:	Computer Control	Load Accuracy:	0.5%
Standard:	ISO 7886-1	Accessories:	Software, Printer, Etc.
Data Acquisition:	High Speed Data Acquisition	Data Output:	USB
Data Processing:	Real-time Data Processing	Max Load:	20kN
Power Supply:	AC220V/50Hz	Speed Range:	0.001-500mm/min
Weight:	200kg
High Light:	Computer Control Universal Precision Testing Machine , 0.5 grade Universal Testing Machine , 500mm/min Universal Testing Machine

Universal Testing Machine 0.5grade Precision Meeting Test Standard ISO 7886-1 For Piston Test

Tensile Testing Machine (UTM) HZ-1003A is used to test both the tensile and compressive strength of materials. Universal Testing Machines are named as such because they can perform varieties of tests on an equally diverse range of materials, components, and structures.

Tensile Testing Machine Equipment summary:

The machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive, computer and color inkjet printer. it is taken account of modern industrial design and ergonomics in modeling and coating. It can be tested all the materials in stretch, compression, bending, shear, embedded relay, peeling, tearing, crack, etc, such as rubber, plastics, leather, metal, nylon wire, fabric, etc.

Tensile Testing Machine Technical parameters:

Model	HZ-1003A Tensile Testing Machine
Max load	20KN
Accuracy	0.5grade
Effective force range	0.4％～100％ (0.5grade)
Load cell	Enlarge configuration:can be increased extra laod cell
Effective test width	390mm (can be enlarge as customer request)
Effective Tensile stroke	800mm (can be enlarge as client request)
Test speed	0.01～500mm/min
accuracy of displacement	≤0.5％
Power supply	220V, 50HZ
Power	0.4KW
Weight	About 300 Kg

Tensile Testing Machine Specifications:

1.Computer Servo Type Universal Testing Machine
A. High-precision sensor 1ton from the U.S.A. Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz
C. Power System: Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw
D. Control System: it is more precise using Pulse Command control modem, the range in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjusted to fast and slow by the control board. it is automatically saved after testing.
E. Data transmission: RS232 Transfer
F. Display: Windows XP test software.
G. easy to control five-speed and calibration system.
H. test software can precision control in position, speed, rate of load force and rate of stress, satisfy the different requirements of test.

2. items can be tested in the Computer Servo Type Universal Testing Machine
Common items: ( display data and calculation )
● tensile stress ● tensile strength
● tensile strength ● rate of elongation at break
● fixed stress ● rate of stress at break
● stress strength ● tear strength

3.Computer servo control material testing machine test curve

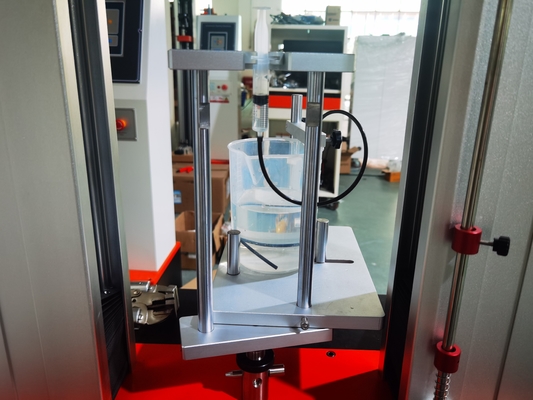

0.5grade Universal Testing Machine Precision Meeting ISO 7886-1 For Piston Test 0

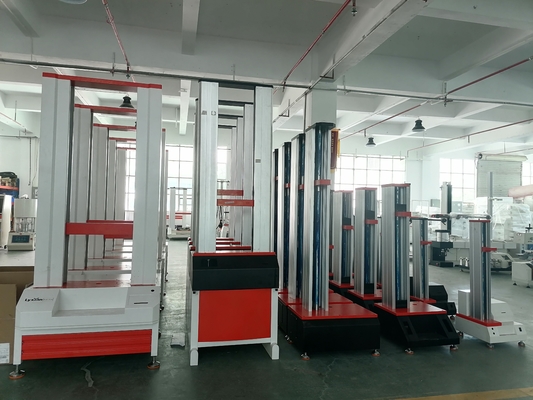

0.5grade Universal Testing Machine Precision Meeting ISO 7886-1 For Piston Test 2

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.

.Computer Type Universal Testing Machine HZ-1003A.p...
