VMS-1510 Second Imaging Measuring Instrument (3+L/150) Um Linear Precision

Description

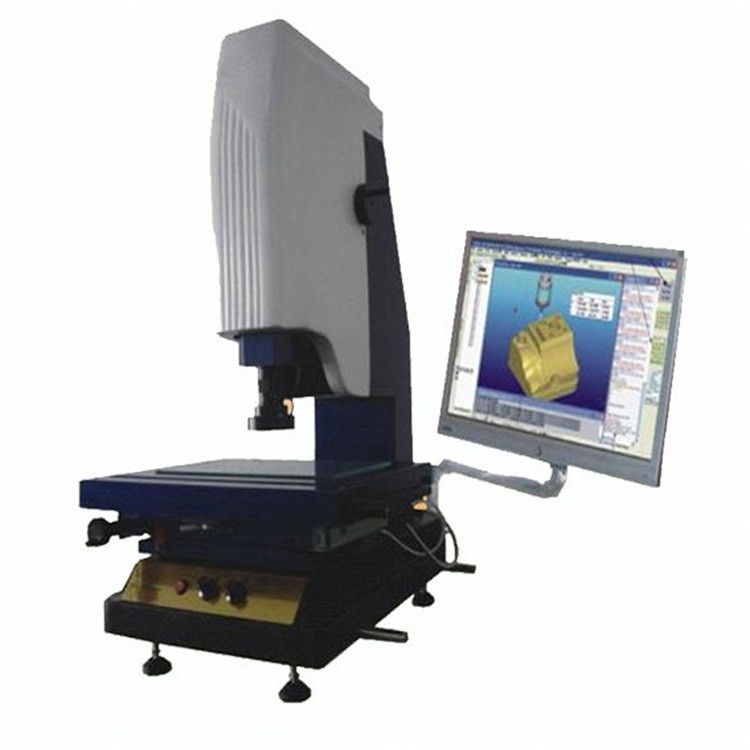

PRODUCT NAME: New VMS-1510 Second Imaging Measuring Instrument Body Size: 540*560*850mm
Table Of Metal: 300*250mm Glass Counter Size: 220*160mm
Actual Working Travel: 150*100*80mm Main Body Weight: 110KG
Machine Bottom Sit: High Precision Granite Base And Bar Instructions: Provided
Linear Precision: (3+L/150)um Calculating Measurement Functions: REICA 2.5DPrecision Measuring System Software
High Light:

Um Linear Second imaging measuring Machines

,

Um Linear Second imaging measuring instrument

New VMS-1510 Second Imaging Measuring Instrument (3+L/150) Um Linear Precision

Equipment Summary:

This instrument is applicable to two coordinates measuring for the purpose of all fields of application, machinery, electronics, instruments, plastic etc widely used.

Main Feature:

1, zoom ShiZiXian generator as objective and measuring aiming system,

2, image measuring instrument has a variety of data processing, display, input and output functions, especially the workpiece adjust function very practical,

3, high resolution 9 segments, change the objective set times not to reconsider avaiable selection scale

4, image measuring instrument spare R232 interface, after connect with computer, using special measuring software can be processed on surveying and mapping graphics and output

Main Fuction :

1, can be made into a product photographs and products to jpeg formats stored in computer form product library

2, and will be stored in computer photos in open and in real-time images of the same picture were compared

3, graphics, can input to AutoCAD become engineering drawings

4, AutoCAD standard engineering drawings can input real-time image, making AutoCAD engineering drawings and the actual shape overlap, comparing the workpiece so as to find out the difference between the workpiece and engineering drawings

5, can input previously photos stored jpeg image to real-time image with actual workpiece overlap contrast

6, a bird's eye view of the map in size to mark

7, custom round: according to customer needs a home-grown standard circular, again with standard circle and the workpiece do overlap contrast images, so as to find the workpiece and standard circular errors between

8, custom hidden-lines: to define the starting point coordinates interval-number, length, rotating Angle, again with images of workpiece as overlap contrast, so as to find the workpiece and standard graphic errors between

9, sets up the real-time image coordinates customer: the actual workpiece set automatically coordinates -1.0, in picture arbitrary point on the labeling accepts the X, Y coordinates

10, coordinates the label to direct the coordinates of -1.0 as a benchmark, tagging picture arbitrary point coordinates

11, patent take R Angle function: for the present market condition accurately plane take R Angle way

12, measurements: measurable plane geometry size (any Angle, diameter, radius, point to the line of the distance and two round eccentric, two spacing, etc.)

13, drawing: but will live video the actual workpiece appearance were portrayed, form complete engineering drawing, drawing mode and AutoCAD similar

14, mark: can the workpiece in real-time image indicated size. (length and Angle, diameter, radius, point to the line of the distance and two round eccentric, two spacing, etc

Measured rendering

New VMS-1510 Second imaging measuring instrumentNew VMS-1510 Second imaging measuring instrument

1 Model No

1510 manual operation



2 Main body size 540*560*850mm
3 Table of metal 300*250mm
4 Glass counter size 220*160mm
5 Actual working travel 150*100*80mm
6 Main body weight 110KG
7 Machine bottom sit High precision granite base and bar
8 Linear precision (3+L/150)um
9 Surface lighting LEDThe annular ultra bright cold light(Brightness adjustable)
10 Outline lighting LEDUltra bright circular lamp(Brightness adjustable)
11 Calculating measurement functions REICA 2.5DPrecision measuring system software
12 Resolving power 0.001mm
13 Repeat precision 0.003mm
14 CCD SONY chip 1/3 colorfulCCD
15 eyepiece 0.5X(optional 1X,2x)
16 objective 0.7X~4.5X magnifacation 20X~120X
17 Power supply AC90~264V 50/60Hz
18 truck





VMS-1510 Second imaging measuring instrument



Contact Details
Dongguan Lixian Instrument Scientific Co.,LTD

Contact Person: liang

Tel: 8613711888650

Fax: 86--13827265866

Send your inquiry directly to us (0 / 3000)
