steel Bar Strength Tester 100kn Max Load Capacity High Accuracy 0.5 Grade

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

steel Bar Strength Tester 100kn Max Load Capacity High Accuracy 0.5 Grade

steel Bar Strength Tester 100kn Max Load Capacity High Accuracy 0.5 Grade
steel Bar Strength Tester 100kn Max Load Capacity High Accuracy 0.5 Grade steel Bar Strength Tester 100kn Max Load Capacity High Accuracy 0.5 Grade steel Bar Strength Tester 100kn Max Load Capacity High Accuracy 0.5 Grade

Large Image :  steel Bar Strength Tester 100kn Max Load Capacity High Accuracy 0.5 Grade

Product Details:
Place of Origin: CHINA
Brand Name: lixian
Certification: CE
Model Number: HZ-1009A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wooden
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500hundred sets per month

steel Bar Strength Tester 100kn Max Load Capacity High Accuracy 0.5 Grade

Description
Model Number: 1009A Effective Measuring Range: Force From 0.2% To 100% (1 Grade) / From 0.4% To 100% (0.5 Grade)
Accuracy: 0.5 Grade Max Load Capacity: 100kN
Safety System: Emergency Stop Power Supply: AC220V
Effective Testing Width: 400mm (according To Customers Requirement ) Tester Resolution: Max Load 1/200000, Constant The Resolution
High Light:

Universal Testing Machine with 24-bit ADC

,

Emergency Stop utm machine

,

100kN Data Acquisition utm testing machine

Steel Bar Strength Tester 100kn Max Load Capacity High Accuracy 0.5 Grade

Strip Sample Cutter HZ-1990.pdf

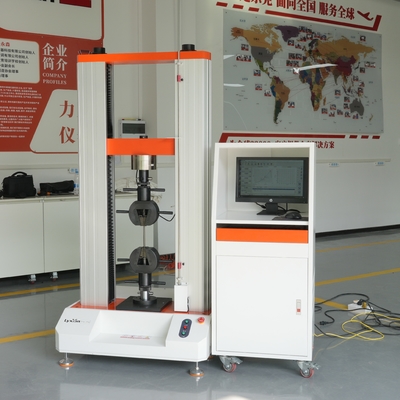

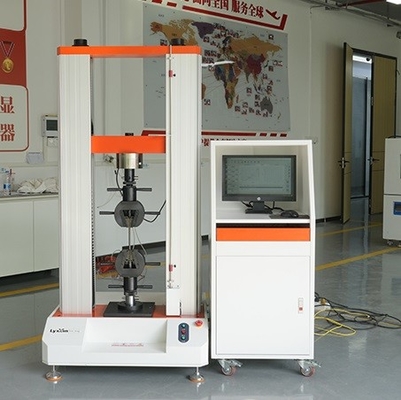

Steel Bar Strength Tester Equipment Summary:
metal rod tensile test machine is a new material testing machine that combined with the electronic technology and mechanical transmission.it has accurate load speed, range of force measurement, Has high accuracy and sensitivity forthe load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the metal rod materials which load is less than 10ton.

Steel Bar Strength Tester Specification
Model Number
HZ-1009A
Power
Electronic
Certification
ISO/ASTM/CE
Maximum load
100 KN
Effective measuring range
Force from 0.2% to 100% (1 grade) / from 0.4% to 100% (0.5 grade)
Accuracy
0.5 grade
Measuring accuracy
the value ±1% / the value±0.5%
Tester resolution
Max load 1/200000, constant the resolution
Effective testing width
400mm (according to customers requirement )
Effective tensile space
400, 500, 600mm (according to customers requirement)
Testing speed
From 0.001 to 500mm/min
Delivery
in stock and prompt ship





This Series machine can be applied to test lots of materials in rubber tensile elongation, compression, tear, big size peel (can 90 degrees and 180 degrees) and other mid-force mechanical test(5KN, 10KN,20KN,optional ), such as tires, belt, shoes, plastic,film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.

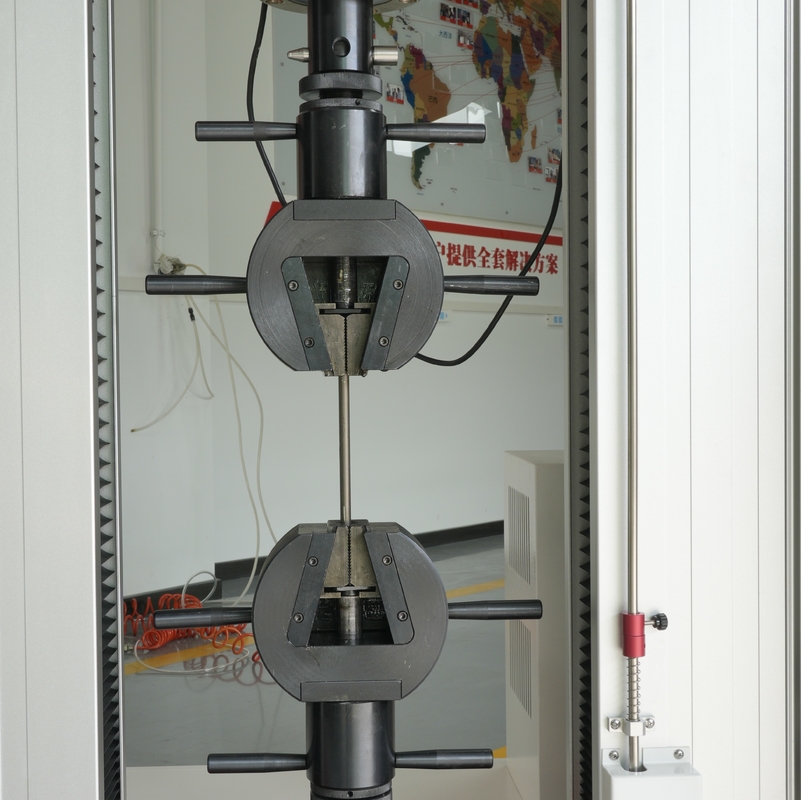

Fixture&Test
steel Bar Strength Tester 100kn Max Load Capacity High Accuracy 0.5 Grade 1
